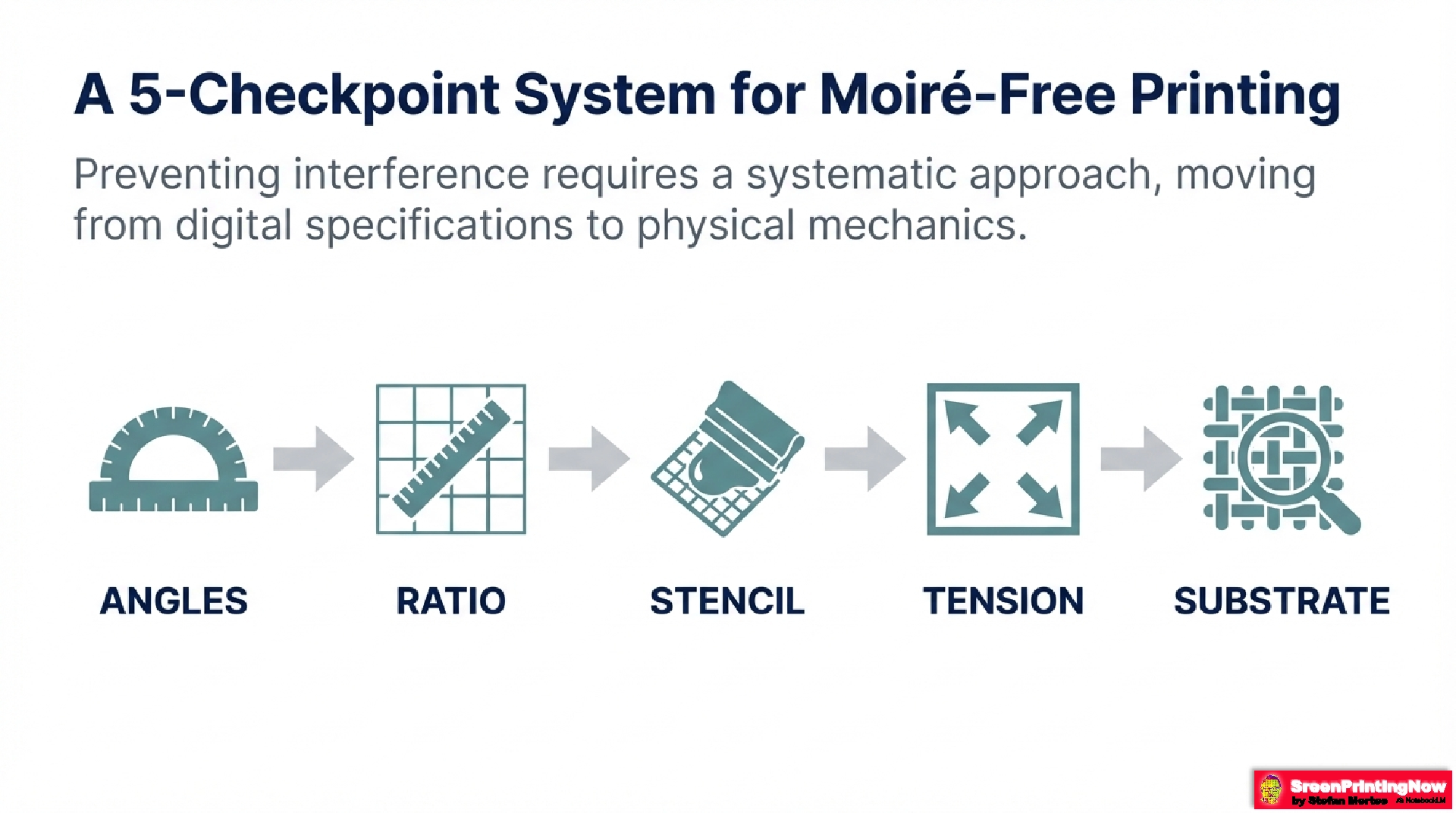

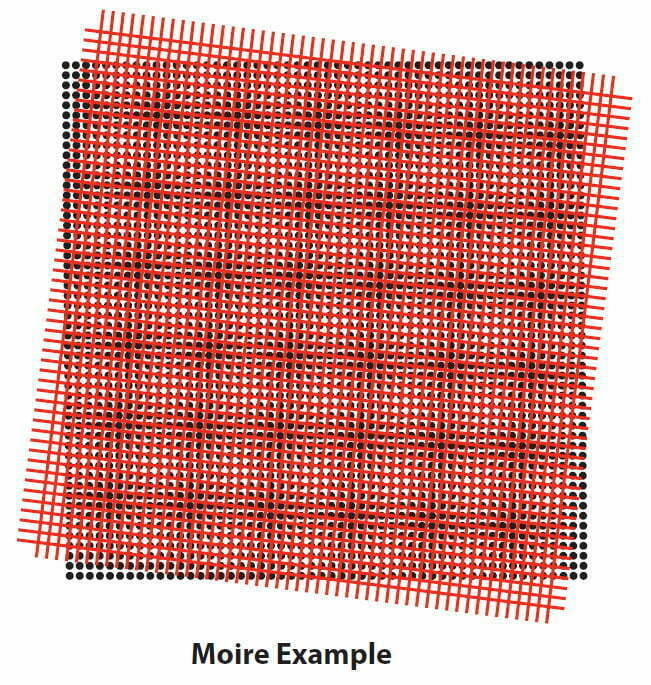

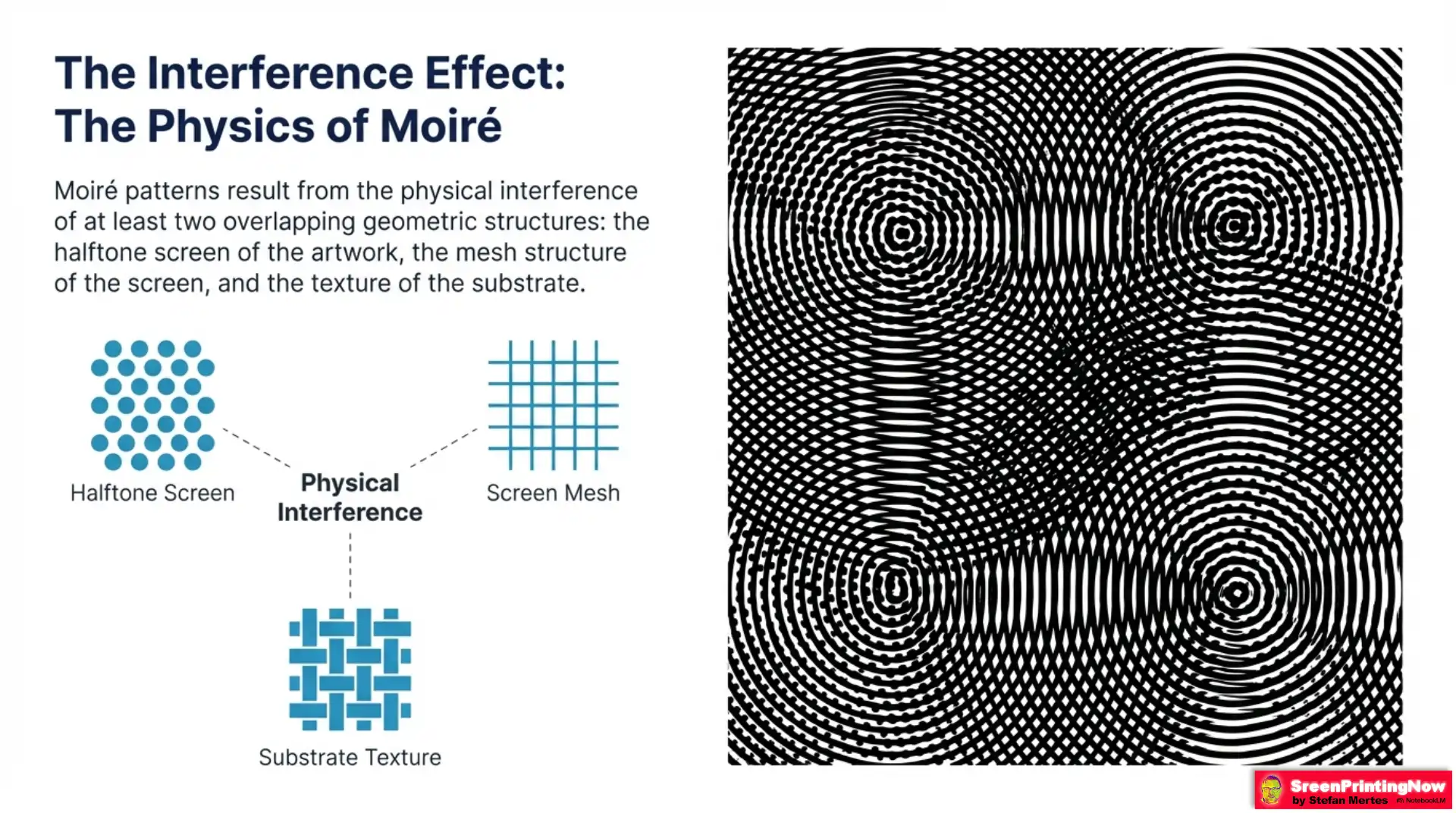

Halftone moiré in screen printing is an optical interference phenomenon occurring when two or more periodic structures—halftone grids, screen mesh, or substrate textures—overlap at conflicting frequencies or angles. Prevention requires the precise mathematical synchronization of raster angles, line frequencies (LPI), and screen mesh counts to ensure dot integrity during the print cycle.
Technical Moiré Prevention Matrix: Mesh vs. LPI

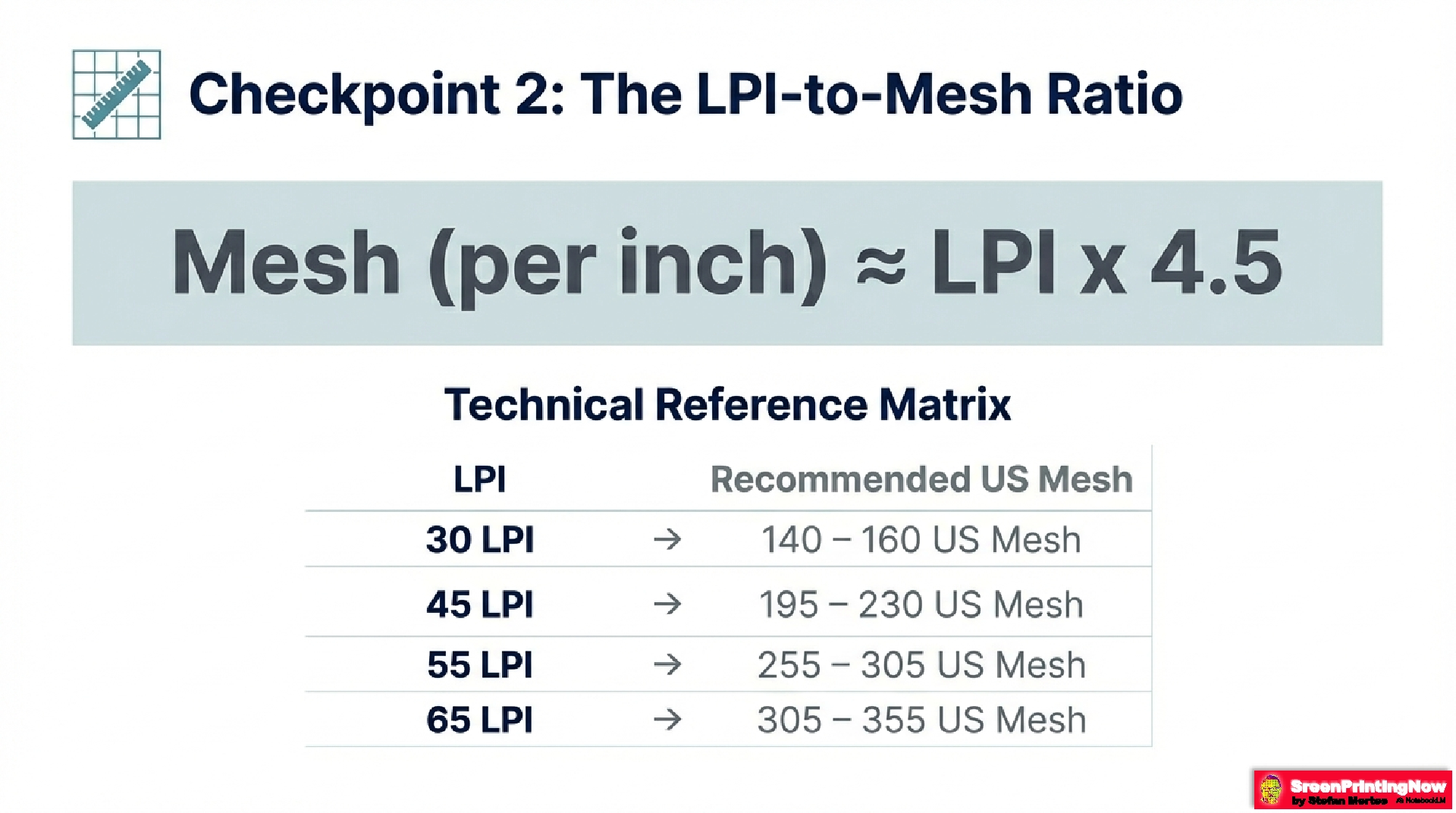

| Halftone Frequency (LPI) | Required Mesh (T/cm) | Required Mesh (US-Count) | Rule of Thumb |
|---|---|---|---|
| 30 LPI | 54 – 64 T/cm | 140 – 160 Mesh | 4.5 x LPI |
| 45 LPI | 77 – 90 T/cm | 195 – 230 Mesh | 4.5 x LPI |
| 55 LPI | 100 – 120 T/cm | 255 – 305 Mesh | 4.5 x LPI |
| 65 LPI | 120 – 140 T/cm | 305 – 355 Mesh | 4.5 x LPI |
CMYK Angular Standards for Primary Moiré Elimination

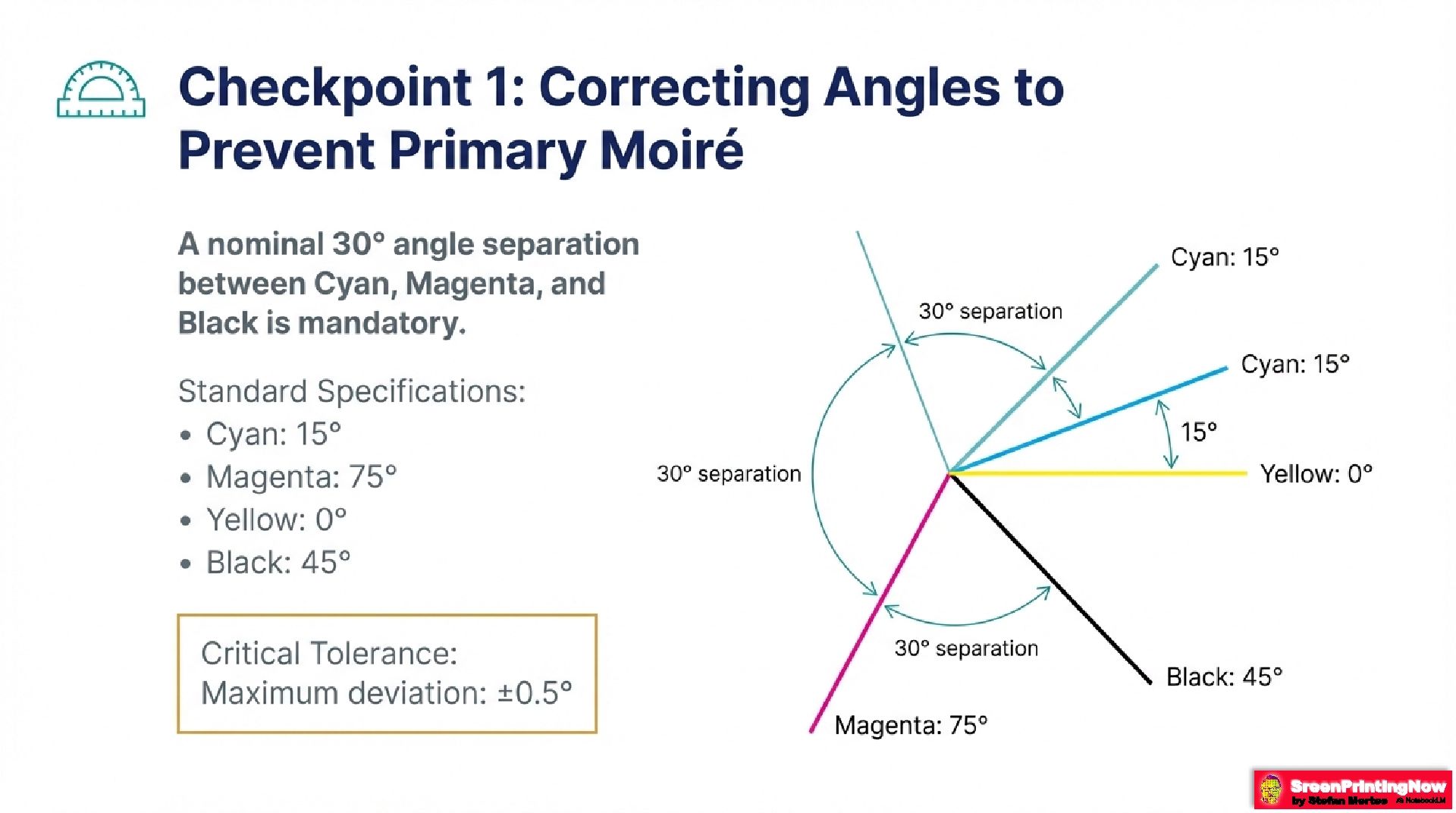

Primary moiré results from insufficient angular distance between overlapping color separations. To ensure moiré-free reproduction, an angular distance of 30° between the primary high-contrast colors (Cyan, Magenta, and Black) is required. The industrial standard for halftone angles is Cyan at 15°, Magenta at 75°, Yellow at 0° (or 15°), and Black at 45°. Maintaining these specific angles prevents the formation of visible interference patterns within the 40% to 60% tonal range.
The Mesh-to-LPI Ratio: Mathematical Synchronization
Secondary moiré occurs when the halftone frequency (LPI) interferes with the periodic structure of the screen mesh. Technical stability is achieved by maintaining a mesh-count-to-LPI ratio of approximately 4.5:1. This is expressed by the formula:
$Mesh_{cm} \approx LPI \times 1.77$ or $Mesh_{inch} \approx LPI \times 4.5$
Avoiding integer ratios, such as exactly 4:1 or 2:1, prevents harmonic interference between the dot grid and the mesh weave.

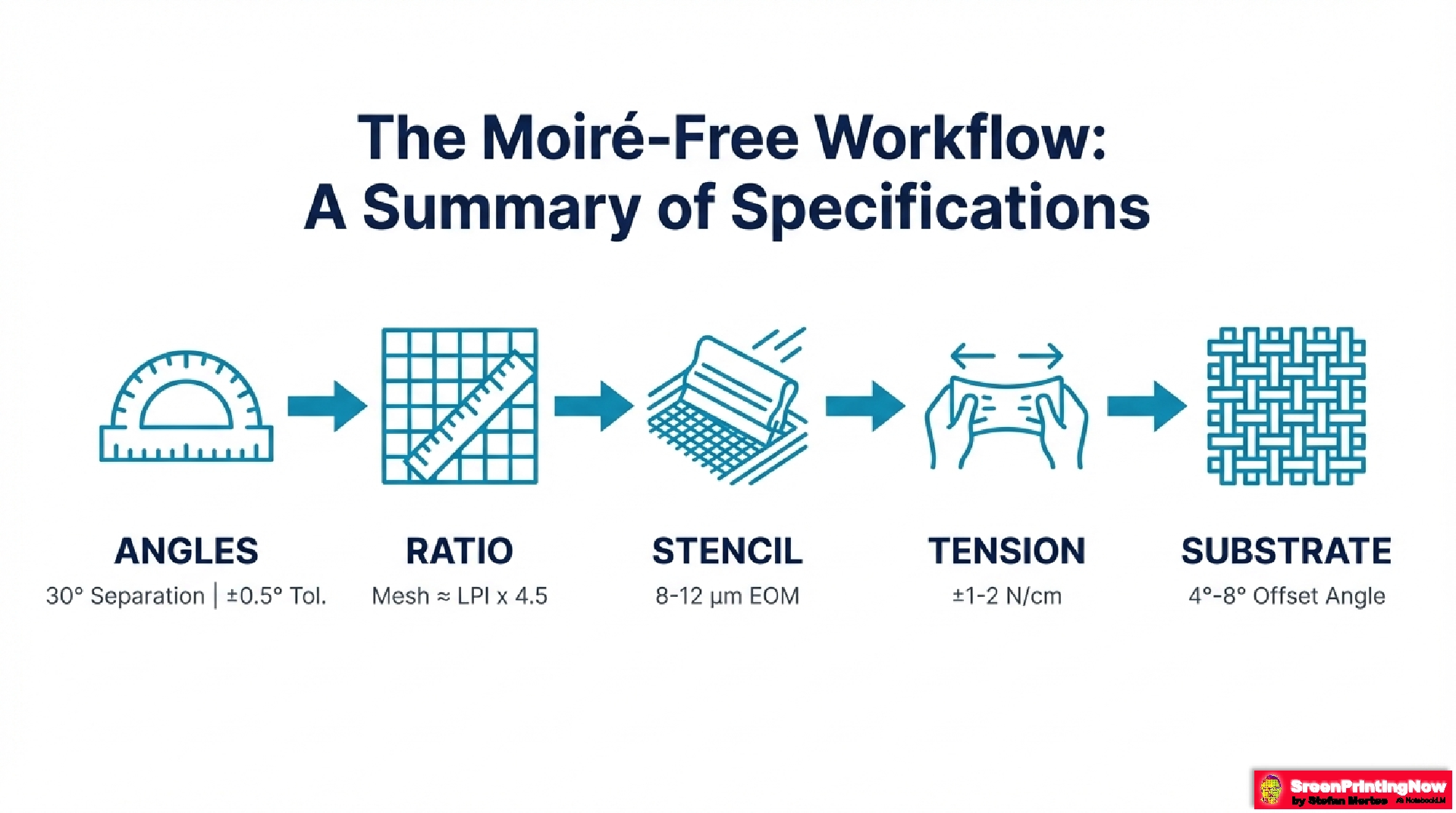

Stencil Geometry and EOM Standards for 55–85 LPI

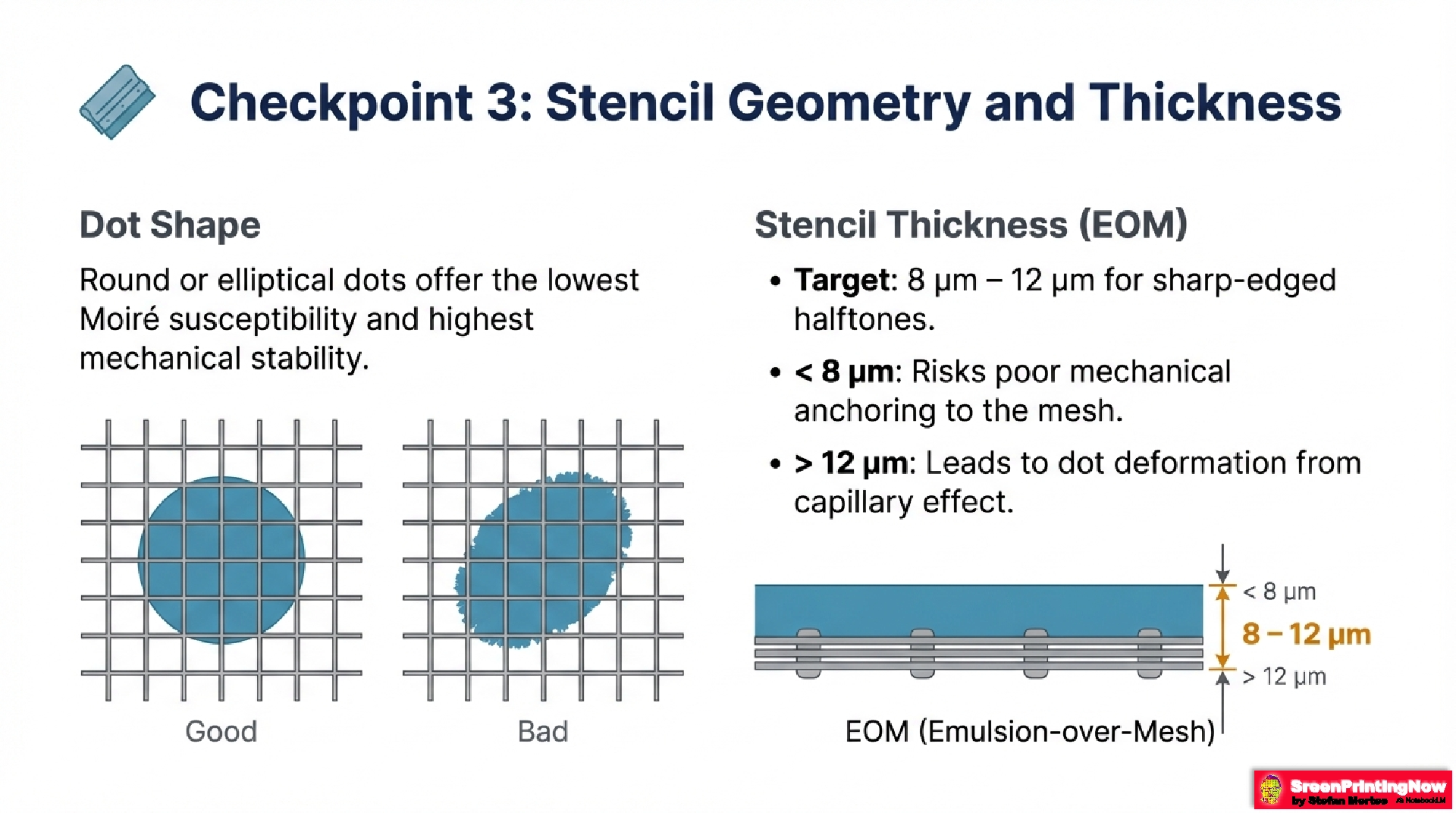

The choice of dot shape directly influences moiré susceptibility, with round or elliptical dot shapes reducing the interference coefficient compared to square geometries. Stencil thickness, defined as Emulsion Over Mesh (EOM), must be maintained between 8 µm and 12 µm for halftones in the 55–85 LPI range. EOM values exceeding 12 µm cause dot deformation through capillary ink spread, while values below 8 µm jeopardize the mechanical anchoring of highlight dots on the mesh threads.
Mechanical Tension and Registration Requirements

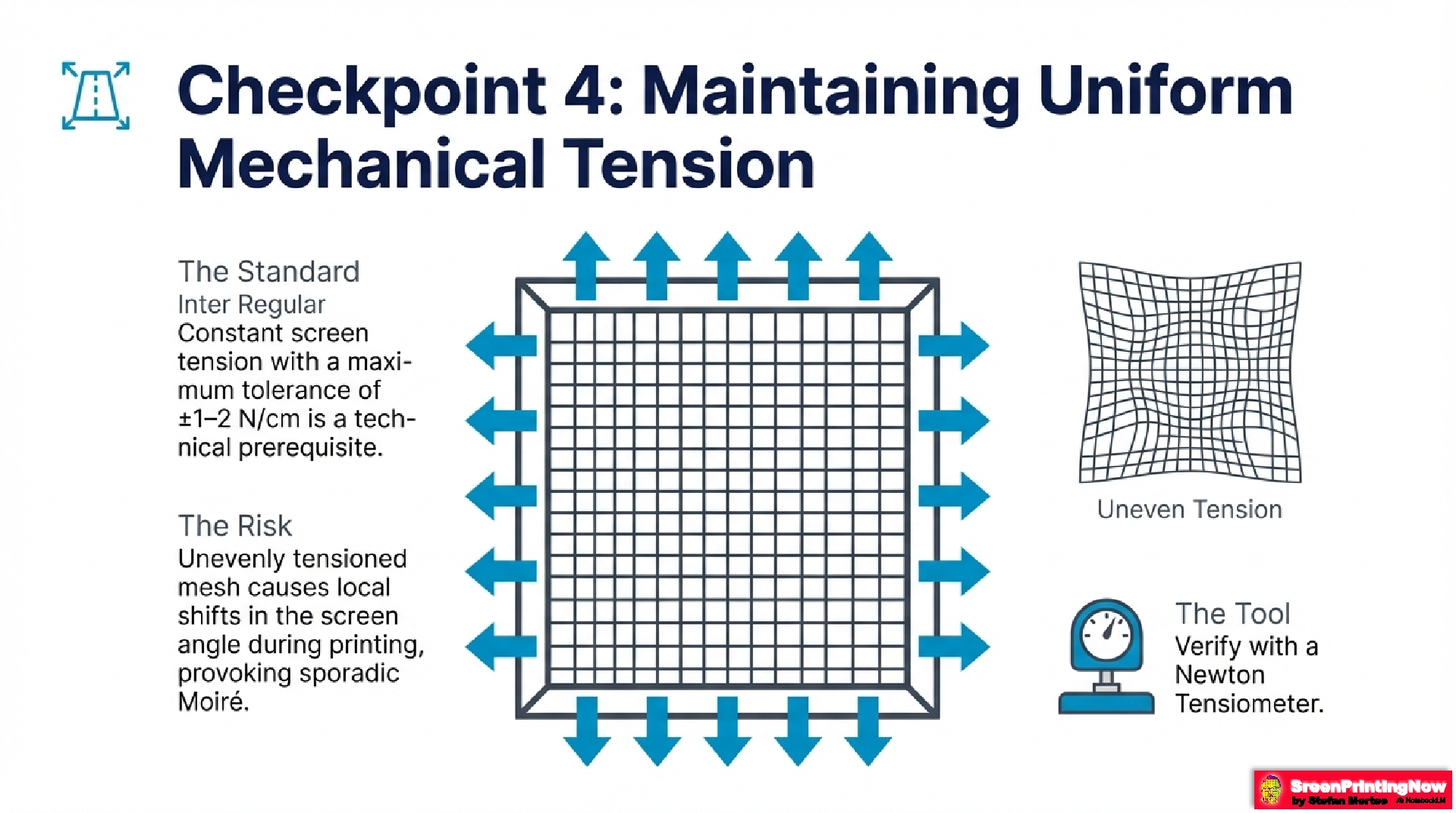

A constant screen tension of 20 N/cm or higher, with a maximum tolerance of ±1–2 N/cm (verified by a Newton tensiometer), is the prerequisite for distortion-free reproduction. Unevenly tensioned mesh causes localized shifts in the halftone angles during production, provoking intermittent moiré patterns. High tension also prevents dot deformation by limiting mesh elongation to less than 1.5% during the squeegee stroke.
Tertiary Moiré and Substrate Compensation

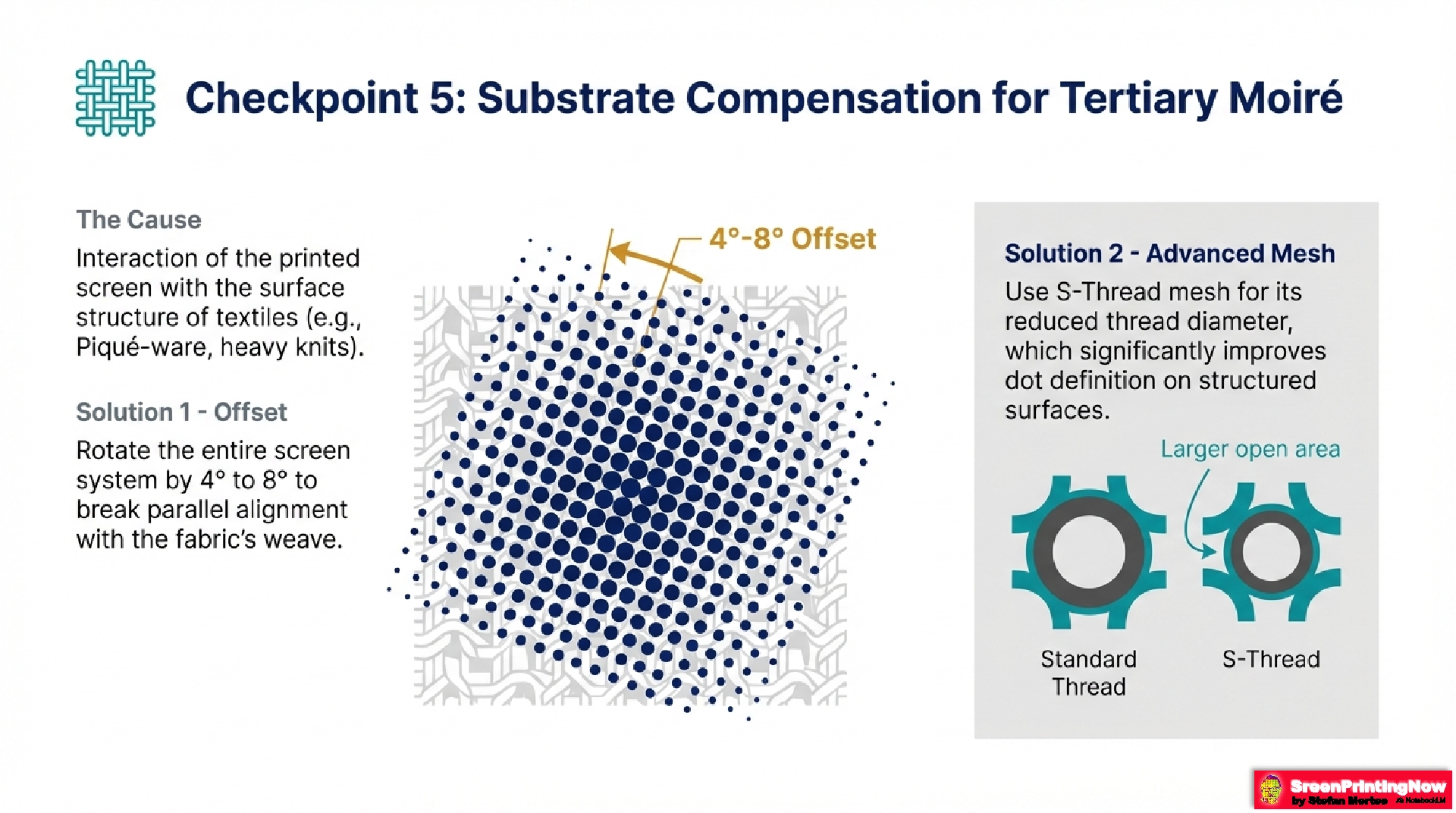

Tertiary moiré is generated by the interaction of the print grid with textured textiles, such as piqué or heavy knits. To mitigate this effect, the halftone set is rotated by a 4° to 8° offset to break the parallel alignment with the textile weave. Utilizing S-Thread mesh (thin-thread technology) increases the open area of the screen, which improves dot definition on textile substrates with surface deviations exceeding 150 µm and reduces fabric-induced interference.
