The Importance of Magnification in Screen Printing by screenprintingnow

Achieve flawless screen prints with magnifiers. This guide covers using magnifying glasses and digital microscopes for quality control - inspecting emulsion, registration, halftones and more. Get tips on choosing the right magnifier.

Magnifying glasses and digital portable microscopes are essential tools for screen printers to ensure quality control throughout the printing process. These tools allow printers to closely examine fine details and identify potential issues that could affect the quality of the final product.

Macro Images with the Digital Portable Microscopes theres nothing like close ups registration problems by screenprintingnow

Uses of Magnifiers in Screen Printing

  1. Checking emulsion quality: A magnifying glass enables screen printers to closely inspect the quality of the emulsion coating. This is crucial for ensuring proper stencil formation, as it allows printers to identify dust, dirt, or pinholes in the emulsion. Additionally, magnifiers help assess the smoothness of the coating, the emulsion over mesh (EOM) thickness, the sharpness of the emulsion edges, and whether the emulsion properly overlaps the mesh edges to prevent a toothed effect.
  2. Checking registration accuracy: When printing multi-color designs, precise alignment of the different screens is critical. A magnifying glass helps printers verify that the registration marks are accurately positioned and lined up correctly on the printed substrate.
  3. Reviewing print quality: Magnifiers allow screen printers to examine the printed image in fine detail, making it easier to spot issues with ink deposit, edge definition, or ink overlap that may not be visible to the naked eye. When printing halftones, magnifiers are essential for:
    • Inspecting the quality and detail of the halftone dots burned onto the screen
    • Checking for excessive dot gain on the printed halftones
    • Verifying proper ink deposit through the halftone dots onto the substrate
    • Evaluating if the halftone dots were properly exposed and developed in the emulsion
  4. Checking screen print transfers: For jobs involving heat transfers, a magnifying glass is useful for checking the alignment of the printed sheets.
  5. Inspecting films: Magnifiers aid in examining the quality of the film positives used in the screen exposure process.

Limitations of Magnifiers

While magnifiers are valuable tools, they have some limitations:

  • They cannot measure the emulsion thickness
  • They do not provide information about mesh tension
  • They cannot determine the off-contact distance between the screen and the substrate

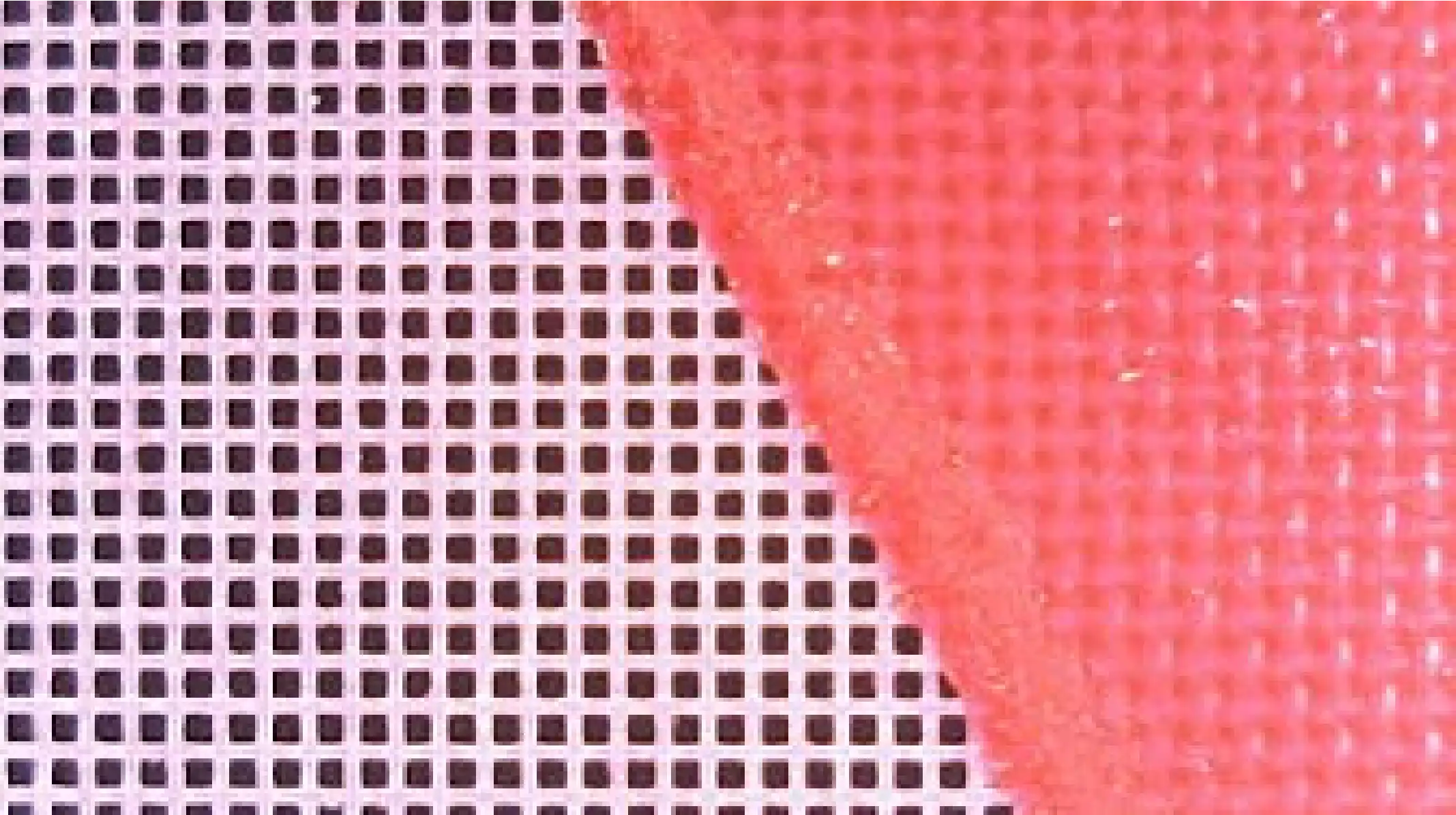

Macro Images with the Digital Portable Microscopes close up sharp edge emulsion shot by screenprintingnow

It can’t tell you the Emulsion thickness, but if the Emulsion covers well the Mesh.

Types of Magnifiers for Screen Printing

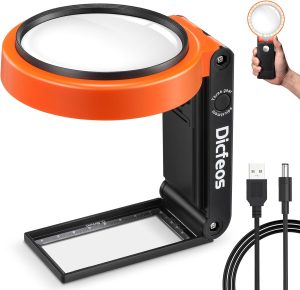

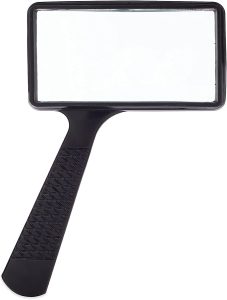

  • Handheld magnifying glasses: These classic tools provide portable magnification for quick inspection tasks. Folding pocket magnifiers are convenient to carry.
  • Loupes: Handheld magnifying lenses, sometimes with built-in lights, offer higher magnification for detailed inspection of screens, films, and prints.
  • Digital portable microscopes: These handheld digital microscopes connect to a computer to provide high-magnification live viewing on a screen, with the ability to capture images and videos.

Choosing the Right Magnifier

When selecting a magnifier for screen printing, consider the following key factors:

  • Magnification power: Higher magnification allows for more detailed viewing.
  • Lighting: Built-in LED lights are very helpful for illuminating the viewing area, especially for the detailed inspection work involved in screen printing.
  • Portability: Compact folding and pocket magnifiers, as well as handheld digital magnifiers, are practical to carry and use in the screen printing environment.

By incorporating magnifying glasses and digital portable microscopes into their quality control process, screen printers can identify and address potential issues early, ensuring the production of high-quality prints, including precise halftone reproduction.

Macro Images with the Digital Portable Microscopes from emulsion and dots on a mesh with emulsion by screenprintingnow

My Personal Note

I have been using the digital magnifier as seen in the images, and it has opened up a whole new world in seeing detailed prints, dots, dust, mesh coverage, and registration problems. With the naked eye, you may believe there could be something wrong, but when you use a magnifier, it will confirm whether there is an issue or not.

Many times, I have looked at prints and thought they did not look that great, as if sharpness was missing. Upon examining the print closely with a magnifier, I could see that the edge sharpness was not clear or was blurred, as if the ink had been smearing a bit. Our human eyes cannot see closely enough to notice these fine details, but they can make a big impact on the overall look of the print.

When printing very fine halftone dots, a magnifier allows you to check if the dots have been properly exposed on the screen and if they have printed correctly onto the substrate. This level of detailed inspection is crucial for ensuring high-quality halftone printing.

In conclusion, using a magnifying glass or digital microscope is essential for any screen printer who wants to achieve the highest standards of print quality. These tools allow printers to closely examine details that are not visible to the naked eye, but can make a significant difference in the final printed result. From checking emulsion quality and registration accuracy to inspecting halftone dots and identifying issues with ink deposit or edge definition, magnification provides an invaluable aid in quality control throughout the screen printing process.

Questions & Answer

Why should screen printers use magnifying glasses or digital microscopes?

Screen printers should use magnifying glasses or digital microscopes for quality control. These tools allow printers to closely inspect the emulsion coating, check registration accuracy, examine print quality, verify halftone dot formation, and identify potential issues that could affect the final print.

What specific aspects of screen printing benefit most from magnification?

Magnification is especially beneficial for checking emulsion quality and stencil formation, ensuring proper registration of multi-color prints, inspecting halftone dots on the screen and print, and examining ink deposit, edge definition, and detail reproduction.

What types of magnifiers are commonly used by screen printers?

Screen printers often use handheld magnifying glasses, loupes with built-in lights for higher magnification, and digital portable microscopes that connect to a computer for live viewing and image capture.

What factors should be considered when choosing a magnifier for screen printing?

When selecting a magnifier, consider the magnification power needed, optical quality of the lenses, built-in lighting for improved visibility, and portability for ease of use in the print shop environment.

How can digital microscopes provide advantages over traditional magnifiers?

Digital microscopes offer the ability to view images on a screen, capture still photos and videos, and easily share and document quality control findings. They also provide higher magnification options and the potential for more advanced image analysis.

What are some limitations of magnifiers in the screen printing process?

While magnifiers are valuable tools, but not used to measure emulsion thickness, or provide information about mesh tension, or determine the off-contact distance between the screen and substrate.
