What Is an Exposure Calculator?
An exposure calculator is a film tool used in screen printing to determine the correct exposure time for a stencil. It contains multiple image segments combined with neutral density filters, allowing a single long exposure to simulate several shorter exposure times.
Why It Matters
- Ensures complete polymer crosslinking for stencil durability
- Prevents underexposure (soft stencils, pinholes, breakdown)
- Prevents overexposure (lost fine detail)
- Saves time, ink, emulsion, and screens
- Delivers consistent print quality
Exposure calculators are inexpensive and widely available—often provided by emulsion manufacturers. Every shop should have one.
How an Exposure Calculator Works
Exposure time is influenced by several variables:
Light Source
UV LED, metal halide, fluorescent, or hybrid units all produce different intensities and wavelengths.
Emulsion Type
Diazo, dual-cure, and photopolymer emulsions have different sensitivities.
Mesh Count
Higher meshes contain thinner emulsion layers and require more precise exposure.
Stencil Thickness
More coats = more emulsion = more time.
Distance to Light Source
Greater distance reduces UV intensity.
How the Calculator Simulates Exposure Times
Most calculators include:
- 5–6 identical image segments
- Neutral density filters that block increasing percentages of light
- Markings such as x1, x0.7, x0.5, x0.33, etc.
Example:
A 6-minute exposure with a 0.5 filter simulates a 3-minute exposure.
This means one long exposure shows you several possible exposure times at once.
Step-by-Step: How to Use an Exposure Calculator
This method (often called a step test) uses your film, your emulsion, your coating technique, and your exposure unit—making it the most accurate approach.
Step 1 – Estimate a Starting Time
Use:
- Manufacturer exposure charts
- Your past experience
- Shop notes
Example: you estimate 3 minutes.
Step 2 – Coat and Dry the Screen
Consistency matters:
- Same squeegee angle, speed, and pressure
- Same coating technique: 1+1, 2+1, 2+2, etc.
- Fully dry (room-temperature air; low humidity)
Step 3 – Place the Exposure Calculator
- Emulsion-to-emulsion contact
- Flat, dust-free surface
- Adjacent to your actual artwork (optional)
Step 4 – Perform One Long Exposure
Expose the screen for double your estimate.
If you estimated 3 minutes, expose for 6 minutes.
This long exposure creates multiple effective exposures:
- x1.0 = 6 min
- x0.5 = 3 min
- x0.33 ≈ 2 min
- x0.25 = 1.5 min
…and so on.
Step 5 – Wash Out Normally
Use standard shop procedures:
- Gentle initial rinse
- Higher pressure to open fine details
- Inspect both sides of the mesh
- Allow the screen to fully dry
Evaluating Your Test Screen
Look at each segment of the calculator. You are searching for:
✔️ Durability
- No slimy, soft, or peeling emulsion
- Solid stencil shoulders
- Toughness on the squeegee side
✔️ Resolution
- Fine lines open cleanly
- Halftone dots wash out correctly
- No merging or loss of detail
✔️ Perfect Balance
The correct exposure segment:
- Shows excellent fine detail
- Has no underexposed softness
- Is not overexposed (details missing)
The exposure multiplier next to that segment tells you your correct time.
Example
If the best segment is x0.7, then your ideal exposure is:
6 minutes × 0.7 = 4.2 minutes
Record this time.
Post-Exposure Control for Consistency
Once you find the correct time, use a Stouffer 21-Step Wedge during daily production.
How it works:
- Place wedge outside the image area.
- Expose normally.
- Wash out and count the highest “solid step.”
This step becomes your daily reference number.
If it changes, something else has changed:
- Lamp output
- Humidity
- Coating thickness
- Emulsion age
This helps you maintain repeatable, stable production quality.
Common Exposure Problems (and How to Avoid Them)
Underexposure
Symptoms:
- Slimy stencil during washout
- Pinholes
- Premature stencil breakdown
- Soft edges
Fix:
- Increase exposure time
- Run a fresh calculator test
Overexposure
Symptoms:
- Lost fine detail
- Halftones won’t open
- Bridges between small elements
Fix:
- Reduce exposure slightly
- Verify light distance and coating thickness
Trying to “Open Up” Highlight Details by Underexposing
This is a mistake.
Underexposure weakens the stencil and causes failure.
Solution:
- Use proper tonal curves
- Increase exposure, not decrease it
- Ensure high-quality film positives
Pro Tips for Perfect Exposure
- Test every mesh count your shop uses
- Log exposure times by mesh + emulsion + coating method
- Clean your exposure glass regularly
- Control humidity in the screen room
- Use magnification to inspect details
- Always test-print on your actual substrate
Why Every Screen Shop Needs an Exposure Calculator
Exposure calculators deliver:
Precision
Accurate, scientific exposure times.
Consistency
Repeatable stencils day after day.
Durability
Stronger stencils for long print runs.
Higher Resolution
Cleaner fine lines and halftones.
Cost Savings
Less emulsion waste, fewer failed screens.
Faster Setup
No more guessing—and fewer mistakes.
Whether you print art posters, sportswear, or halftones, a calculator is the fastest way to stabilize your screen room.
Conclusion

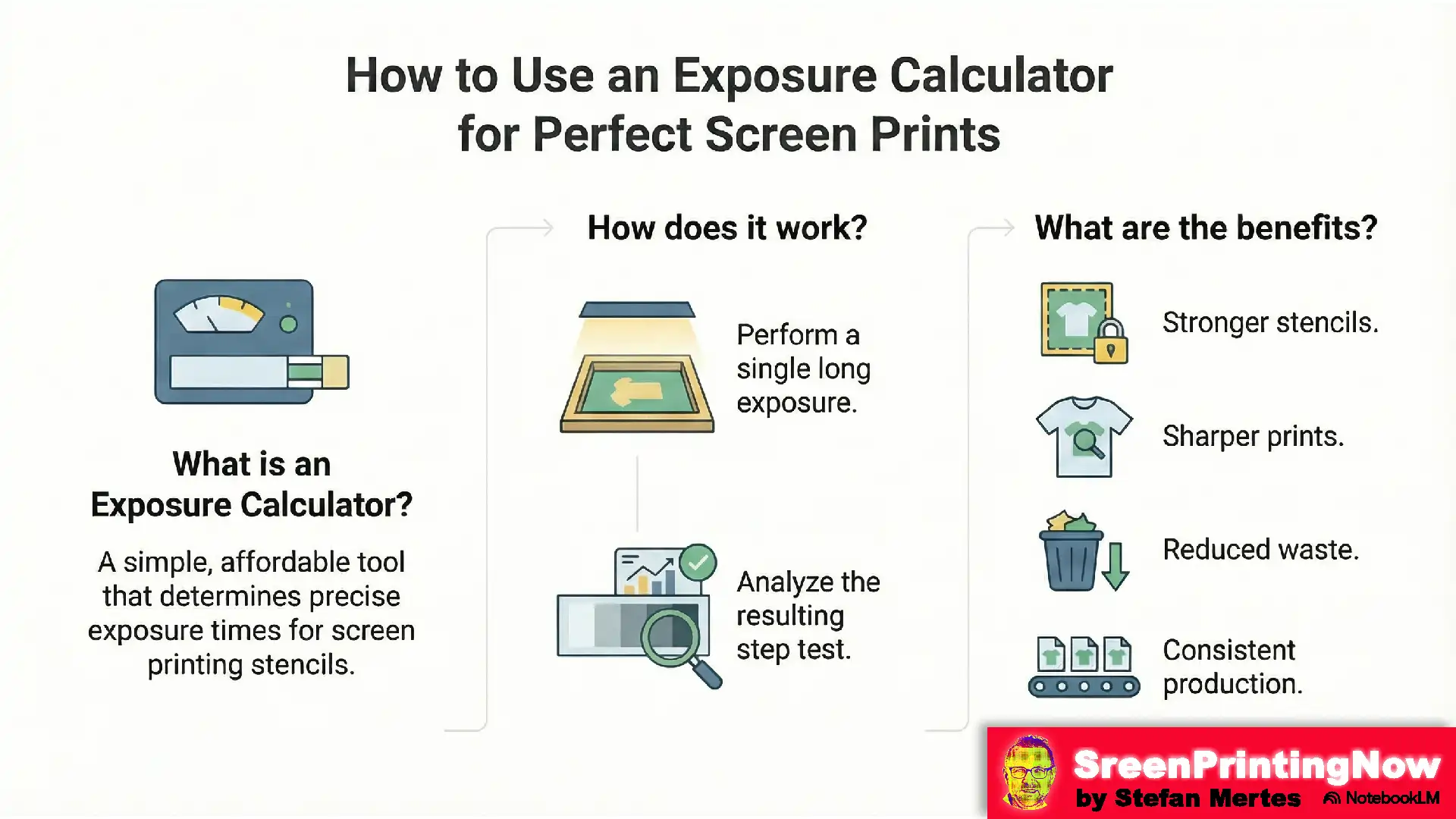

An exposure calculator is one of the simplest, most affordable, and most powerful tools in screen printing. By performing a single long exposure and analyzing the step test, you can determine precise exposure times for every mesh and emulsion combination.
This leads to:
- Stronger stencils
- Sharper prints
- Reduced waste
- Consistent production
If you want predictable, high-quality screen prints, the exposure calculator is essential.
