Full Guide to Exposure Calculators in Screen Printing

Brief Overview

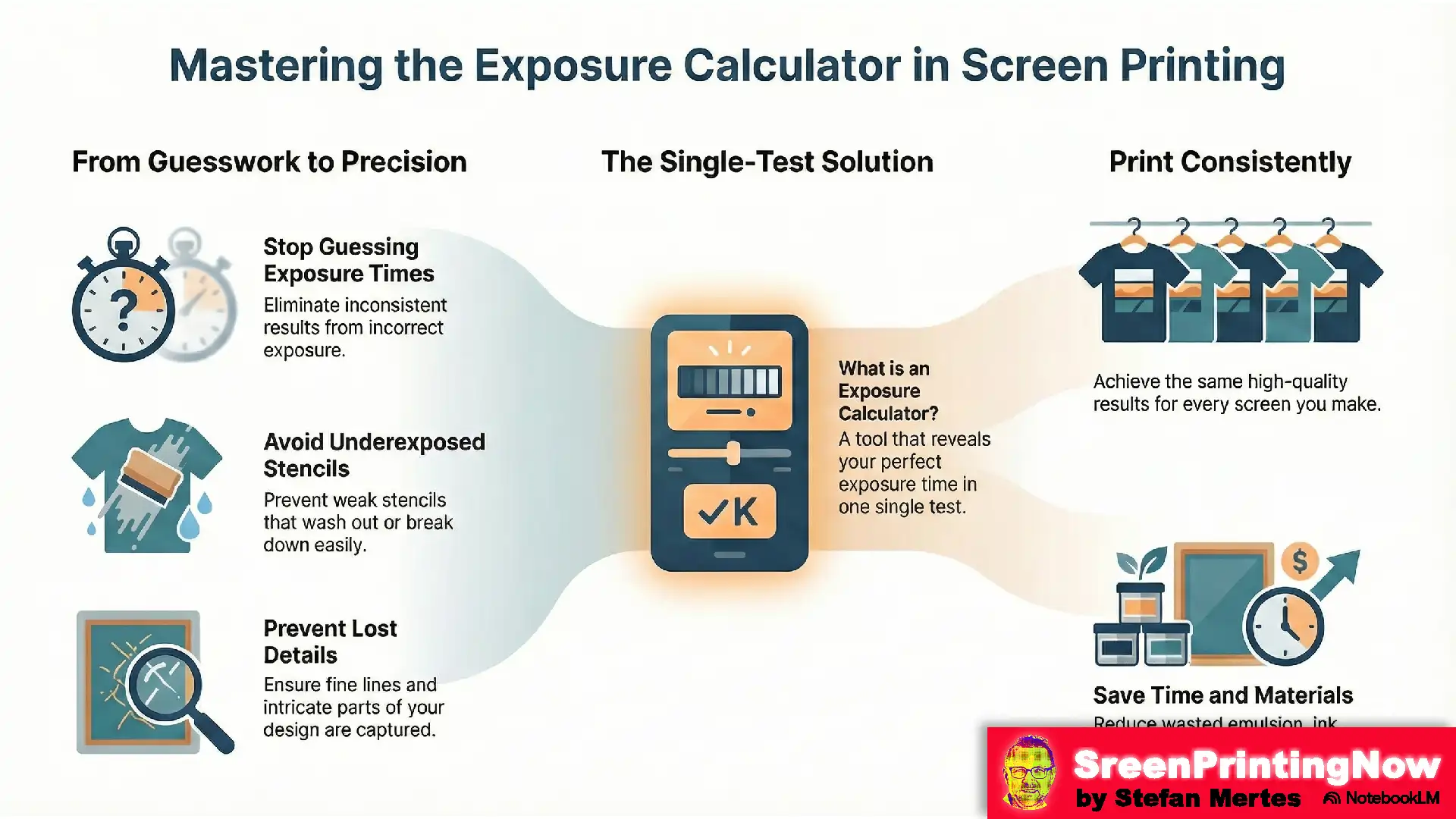

Exposure calculators are crucial for achieving optimal stencil exposure in screen printing. Many common printing problems arise from incorrect exposure, making these calculators essential for maintaining high-quality, consistent prints.

Purpose and Importance of Exposure Calculators

• Accurate Exposure Time
  • Why It Matters: Getting the exposure time right is crucial for different emulsions, light sources, and screen mesh counts. The calculator ensures precision, saving time, reducing material wastage, and eliminating guesswork.
• Consistency and Repeatability
  • Importance: Exposure calculators help printers achieve consistent, repeatable stencil characteristics, leading to better print quality and a standardized printing process across different jobs.

How Exposure Calculators Work

1. Film Positives with Density Filters
   • Process: Exposure calculators typically consist of a series of test images covered with increasingly dense filters that simulate various exposure times. After exposing the screen and washing it out, the segment with the clearest image indicates the correct exposure time.
2. Analyzing Results
   • Balancing Factors: Printers must find a balance between stencil durability and resolution. Sharp details indicate proper exposure, while under- or overexposure leads to weak or excessively hardened stencils.
3. Documentation
   • Long-term Consistency: Once the correct exposure time is found for a specific setup (mesh count, light source, emulsion type), it’s crucial to document it for future reference to ensure repeatability in future jobs.

Types of Exposure Calculators

• Film-Based Exposure Calculators
  • How It Works: These are physical films with patterns that receive varying amounts of light. After exposure, the clearest part shows the correct exposure time.
  • Popular Brands: Stouffer 21-Step Sensitivity Guide, Chromaline, Murakami, KIWO’s Expo Check.
• Step Wedge Exposure Test
  • Manual Method: This involves manually covering sections of the screen at intervals during exposure, creating a gradient of exposure times that allows printers to assess the correct one visually.

Factors Affecting Exposure Time

• Image Opacity
  • Effect: Darker, more opaque images need longer exposure times, while lighter images expose faster.
• Emulsion Type
  • Differences: Photopolymer emulsions are more sensitive to UV light and expose faster than diazo emulsions, which require longer exposure times.
• Mesh Count
  • Impact: Higher mesh counts hold less emulsion, so they require shorter exposure times compared to lower mesh counts.
• Light Source
  • Types of Light: UV light is the most efficient and consistent, while other light sources (halogen, LED, fluorescent) need longer exposure times due to lower UV output.
• Distance and Intensity of Light Source
  • Key Consideration: Closer and more intense light sources require shorter exposure times, but you need to ensure even exposure across the screen.
• Humidity and Moisture
  • Impact: Higher humidity can extend exposure times as moisture in the emulsion slows the curing process.
• Coating Thickness
  • Important to Monitor: Thicker emulsion coatings require more exposure time for proper curing. Even coating application is essential for consistent results.

Tips for Using Exposure Calculators

• Consistent Use
  • Recommendation: Always use an exposure calculator to verify exposure times, even if your setup seems consistent, as variables like light intensity can fluctuate over time.
• Regular Checks
  • Key Practice: Frequently check exposure times, as they may change due to factors like lamp degradation, humidity, or emulsion shelf life.
• Microscopic Inspection
  • Quality Control: After exposing and washing the screen, use a microscope to inspect for fine details like pinholes, mesh bridging, and edge definition.
• Maintain an Exposure Log
  • Track Your Results: Keep a log of exposure times for different screens, emulsions, and light sources. This ensures repeatable results and helps troubleshoot future issues.

Benefits of Using an Exposure Calculator

1. Precision
   • Result: Exposure calculators remove the guesswork, helping printers achieve optimal exposure, improving the quality of prints, and increasing stencil durability.
2. Cost Savings
   • Effect: Reduces material waste by eliminating the need for trial-and-error testing, which saves both emulsion and screens.
3. Consistency
   • Importance: Ensures every screen gets the same exposure, leading to a standard, high-quality production process.
4. Detail and Durability
   • Impact: Correctly exposed screens offer sharper details and more durable stencils that last through multiple prints.

DIY Exposure Calculators

• Transparency Film Method
  • How to Make Your Own: You can create a DIY exposure calculator using transparency films with printed test patterns. Manually expose different sections of the screen and compare results. Or just download for free.
• Process
  • Steps: Print a test pattern on transparency film, expose parts of the screen at different times, and assess stencil quality based on washout results.
