Donut Probe for Screen Printer

Technical Thermal Profiling in Screen Printing

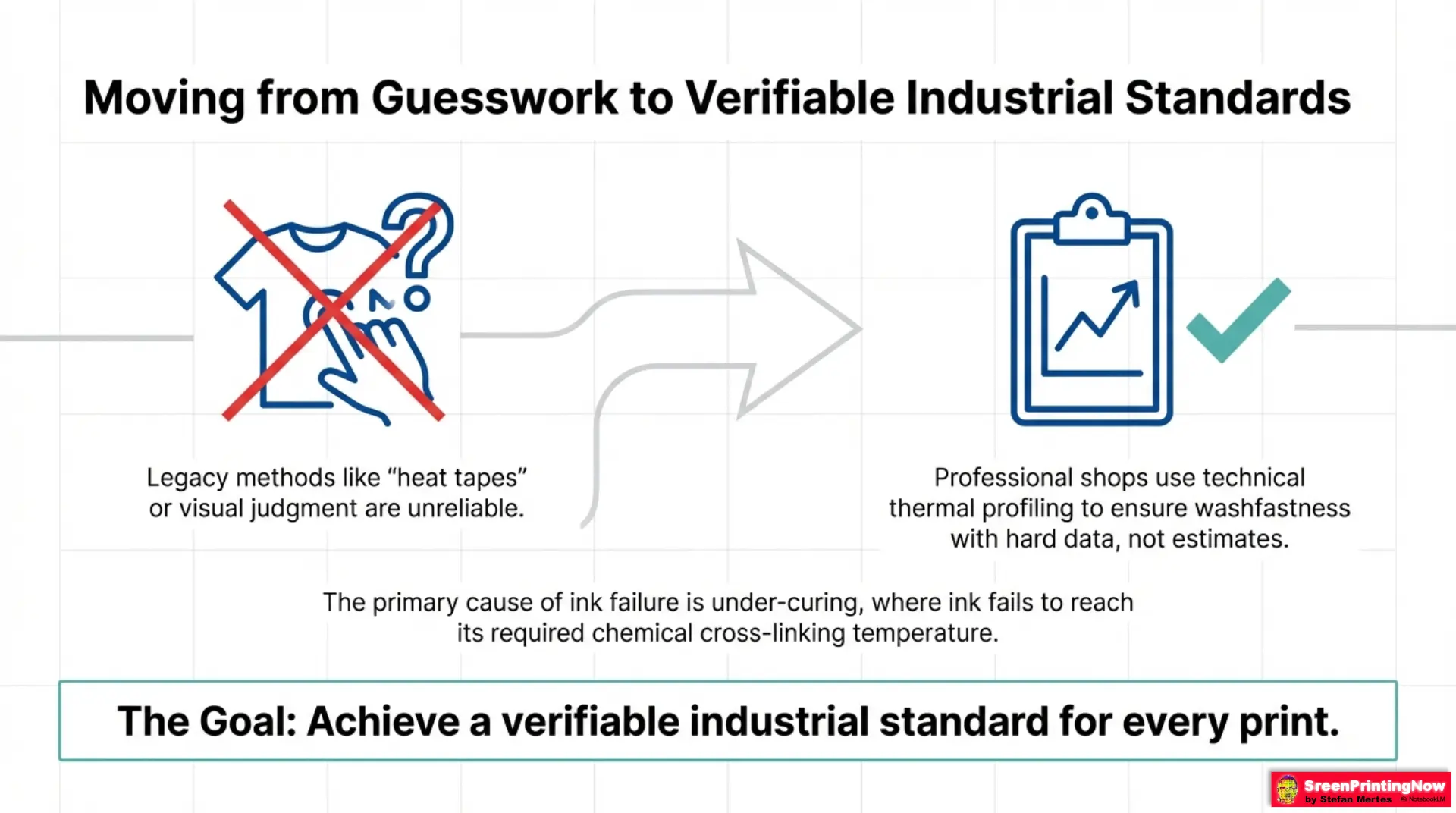

The primary cause of ink failure in textile screen printing is under-curing, a condition where the ink film fails to reach its required chemical cross-linking temperature. Transitioning from legacy methods like “heat tapes” or visual judgment to the donut probe allows professional shops to achieve a verifiable industrial standard, ensuring washfastness through hard data rather than estimates.

The Mechanism of a Donut Probe: Internal Thermal Verification

Critical Curing Benchmarks for Technical Compliance

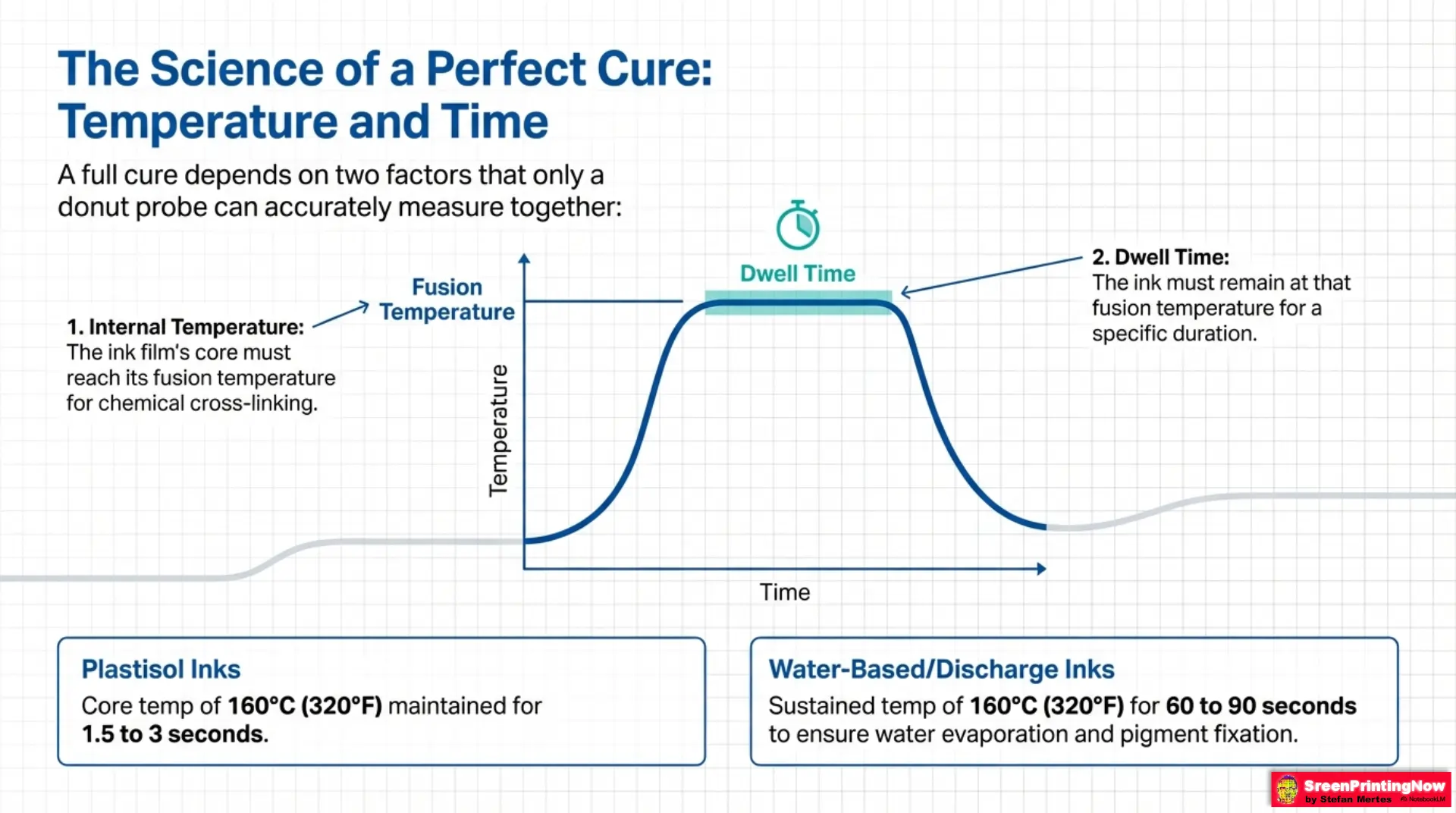

• Standard Plastisol Inks: Must maintain a core temperature of 160°C (320°F) for a minimum of 1.5 to 3 seconds.
• Water-Based and Discharge Inks: Require a sustained temperature of 160°C (320°F) for 60 to 90 seconds to ensure complete water carrier evaporation and subsequent pigment fixation.

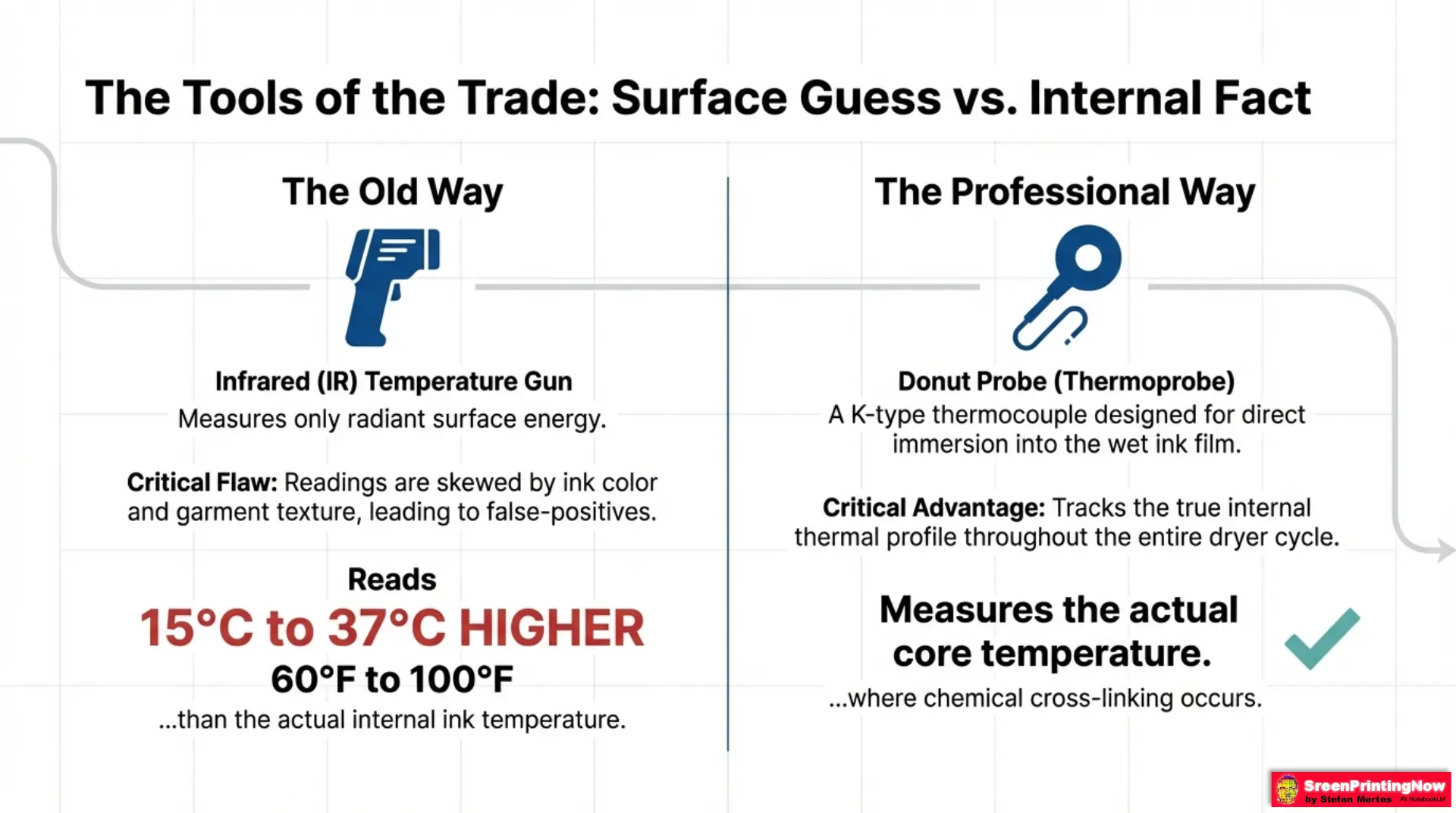

Donut Probe vs. IR Temperature Gun: Accuracy and Emissivity

Infrared (IR) thermometers are frequently misused for cure verification, leading to false-positive results. To maintain quality control, operators must identify the mechanical limitations of radiant energy measurement:

• Emissivity Errors: IR guns measure radiant surface energy and are affected by ink color and garment texture. These devices often show readings 15°C to 37°C (60°F to 100°F) higher than the internal ink temperature.
• Dwell Time Tracking: Only a donut probe connected to a digital data logger can track the dwell time—the specific duration an ink film remains at its fusion temperature—which is the critical metric for a complete chemical cure.

Operational Protocol: 5-Step Procedure for Cure Verification

To achieve a verifiable cure profile, the donut probe must be utilized following this standardized technical procedure:

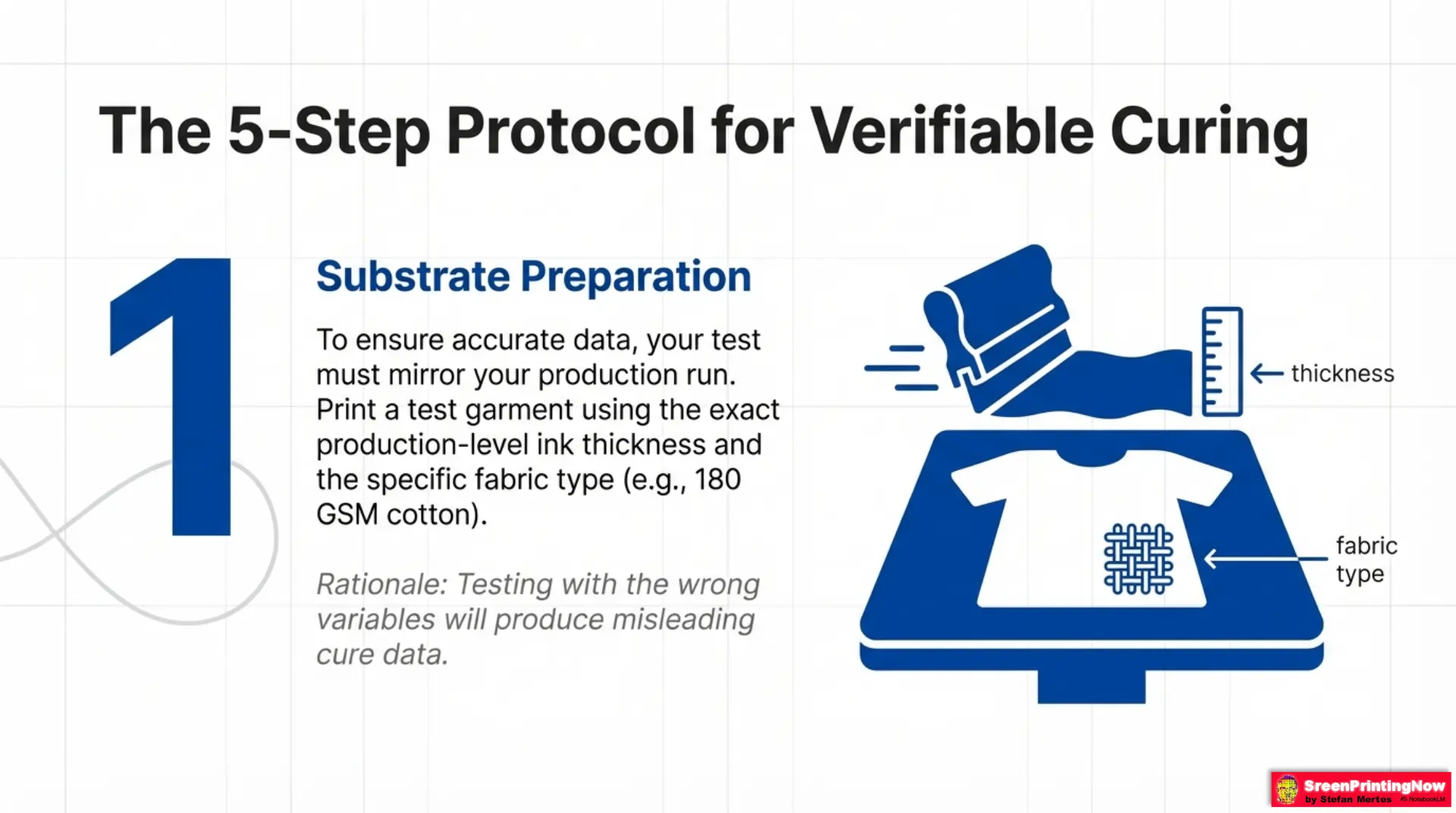

1. Substrate Preparation: Print a test garment using the production-level ink thickness and specific fabric type (e.g., 180 GSM cotton).

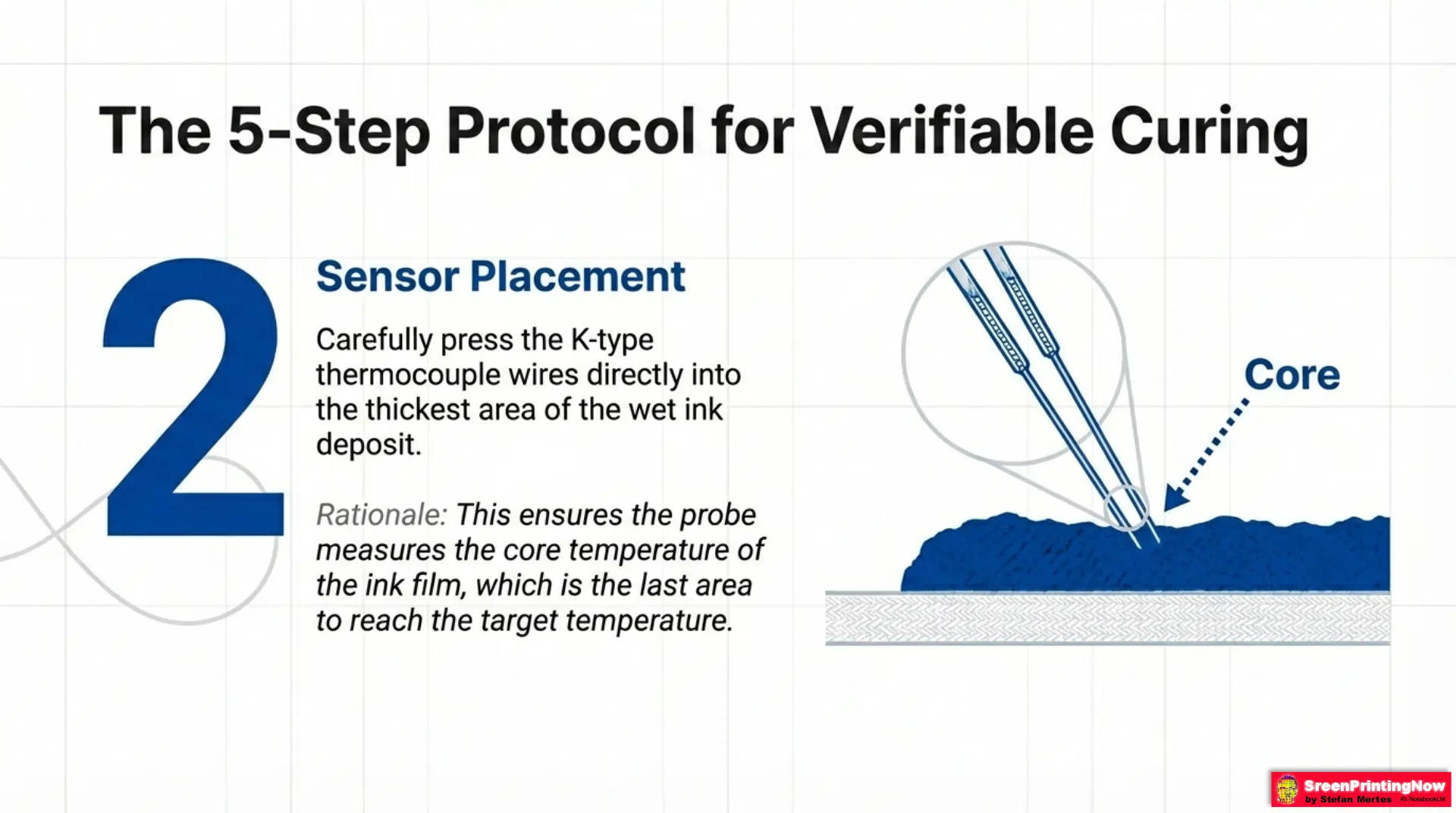

2. Sensor Placement: Press the K-type thermocouple wires directly into the thickest area of the wet ink deposit to measure the core temperature.

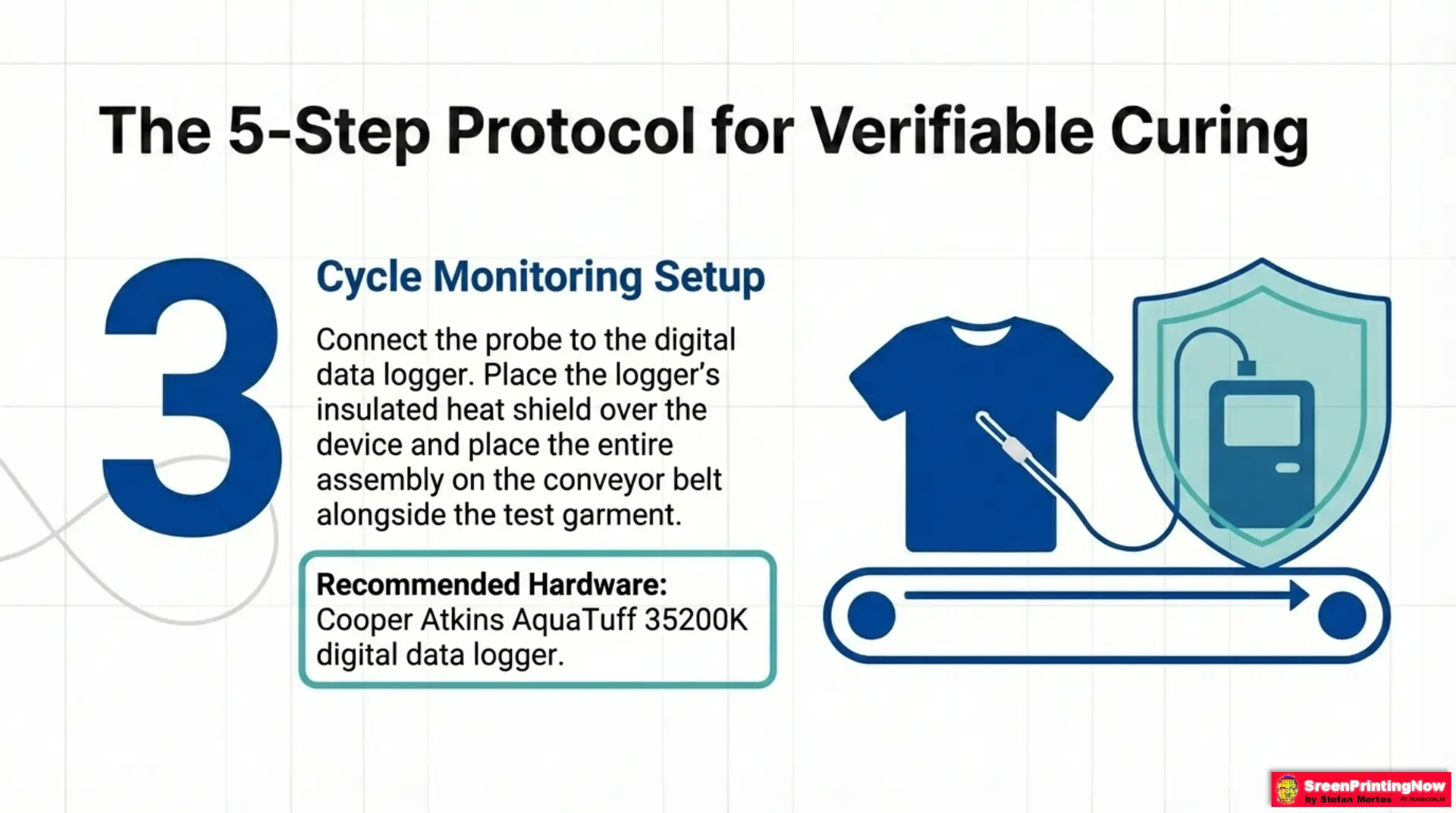

3. Cycle Monitoring: Connect the probe to the digital data logger (e.g., Cooper Atkins AquaTuff 35200K) and place the insulated heat shield on the conveyor belt.

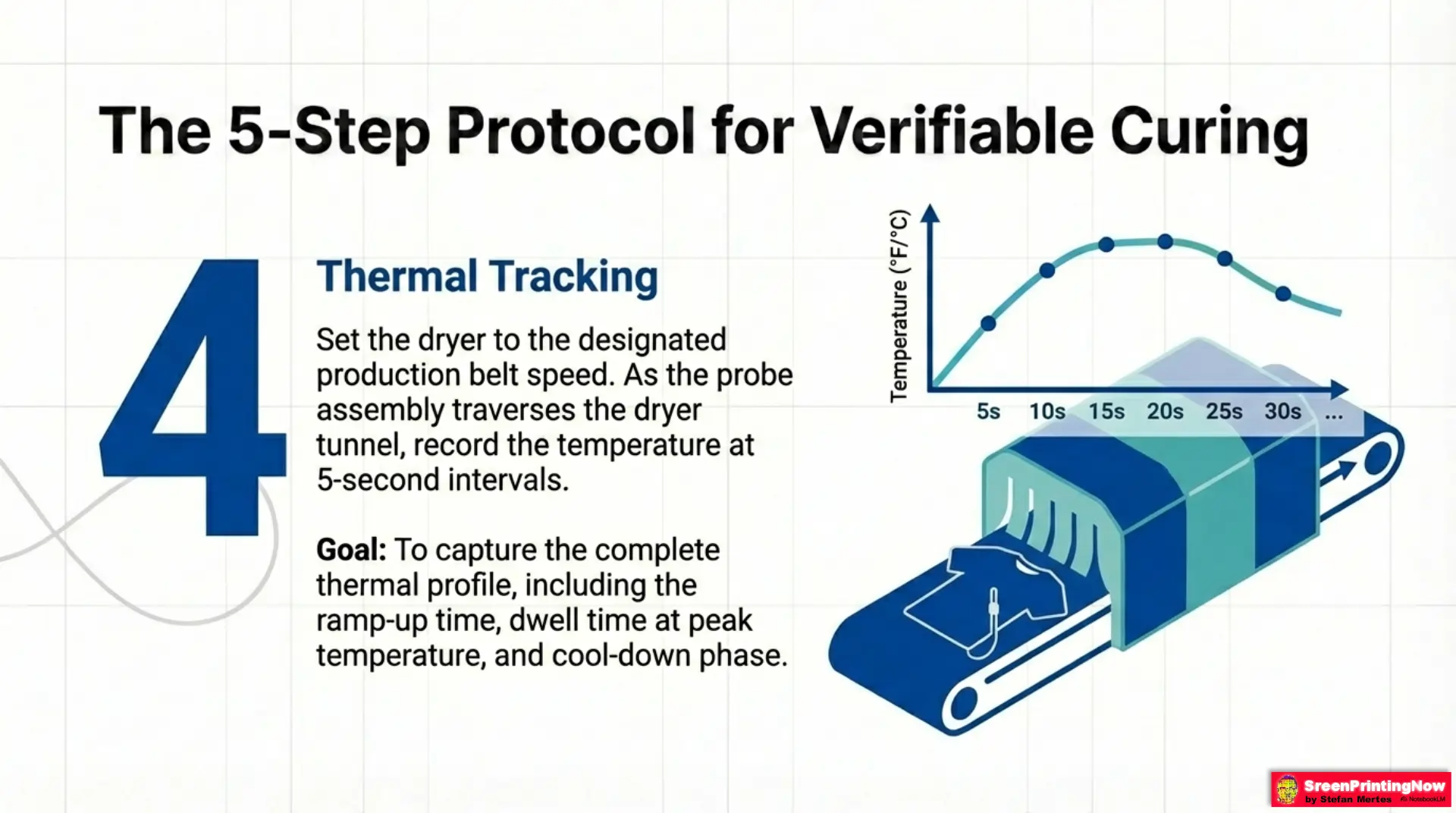

4. Thermal Tracking: Record the temperature at 5-second intervals as the probe traverses the dryer tunnel at the designated production belt speed.

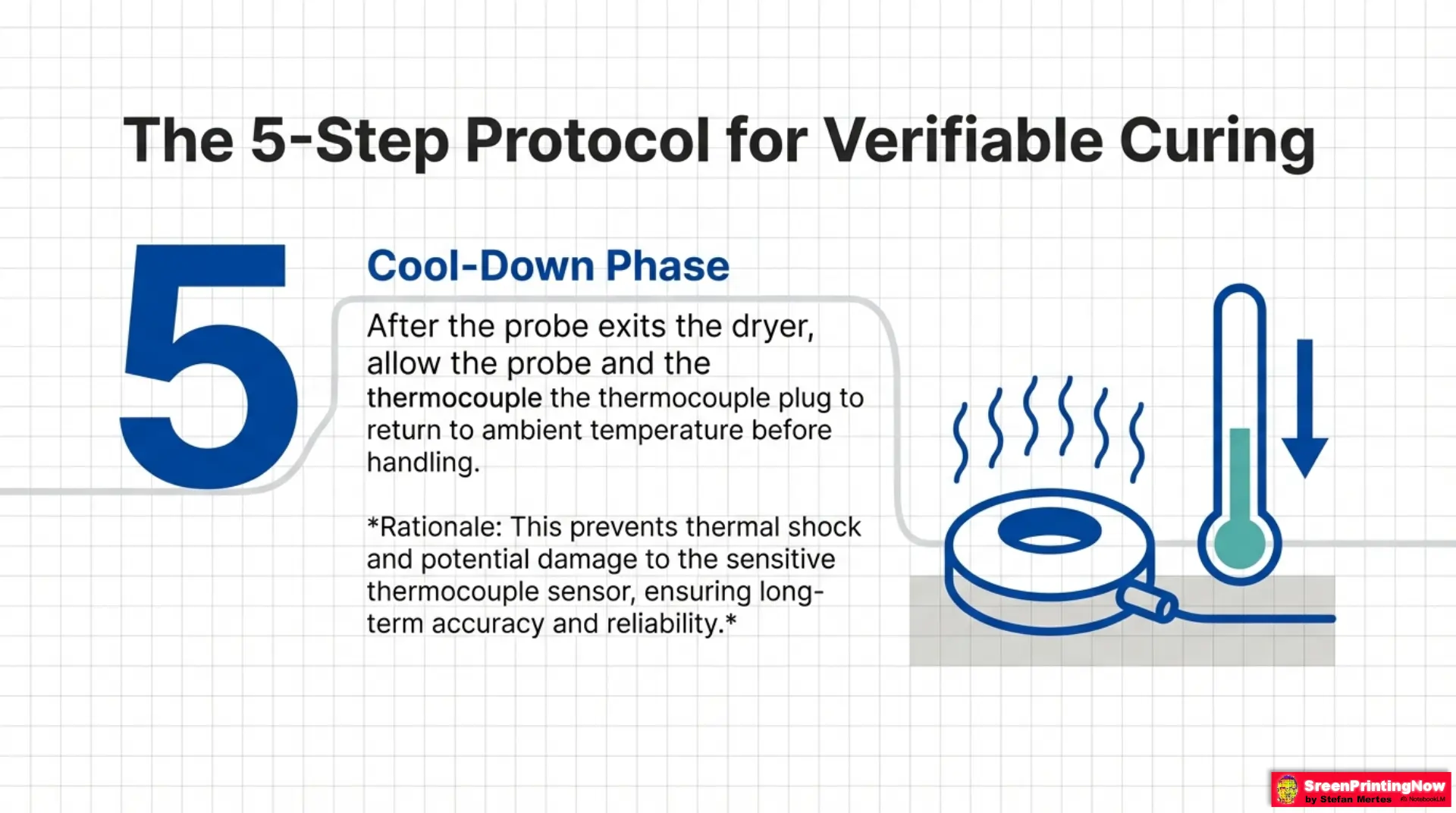

5. Cool-Down Phase: Allow the probe and thermocouple plug to return to ambient temperature before handling to prevent sensor damage.

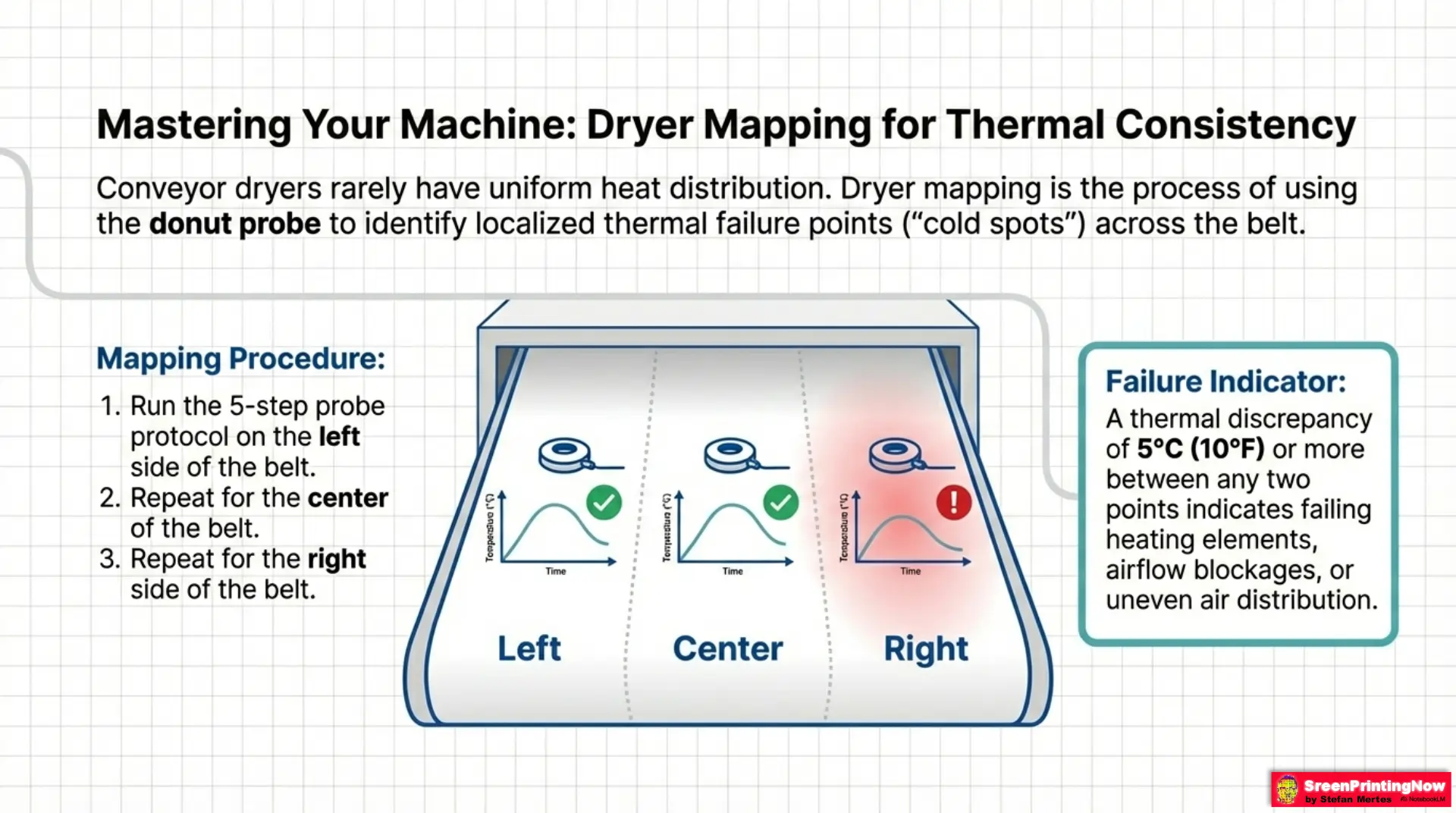

Dryer Mapping: Identifying Thermal Inconsistencies

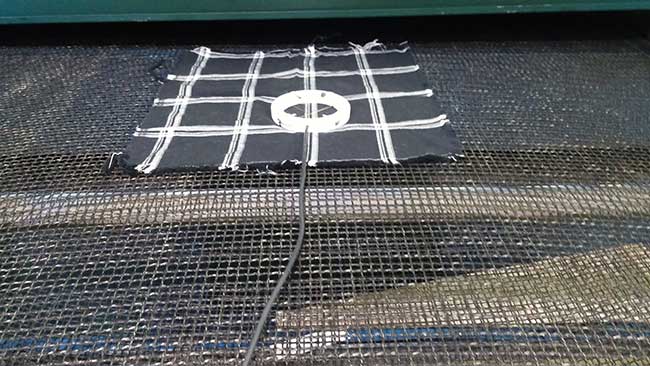

• Mapping Procedure: Run the donut probe through the left, center, and right sections of the conveyor belt sequentially.
• Identifying Failure Points: Thermal discrepancies of 5°C (10°F) or more across the belt indicate failing heating elements, airflow blockages, or uneven forced-air distribution.
• Quality Compliance: Monthly dryer maps serve as documented proof of cure, satisfying the quality audit requirements of major apparel brands.

Cost-Benefit Analysis: The ROI of Precision Curing

A professional donut probe kit requires a capital investment of approximately $380 to $480. While the initial cost is higher than a consumer-grade infrared gun, the risk mitigation value is quantifiable.

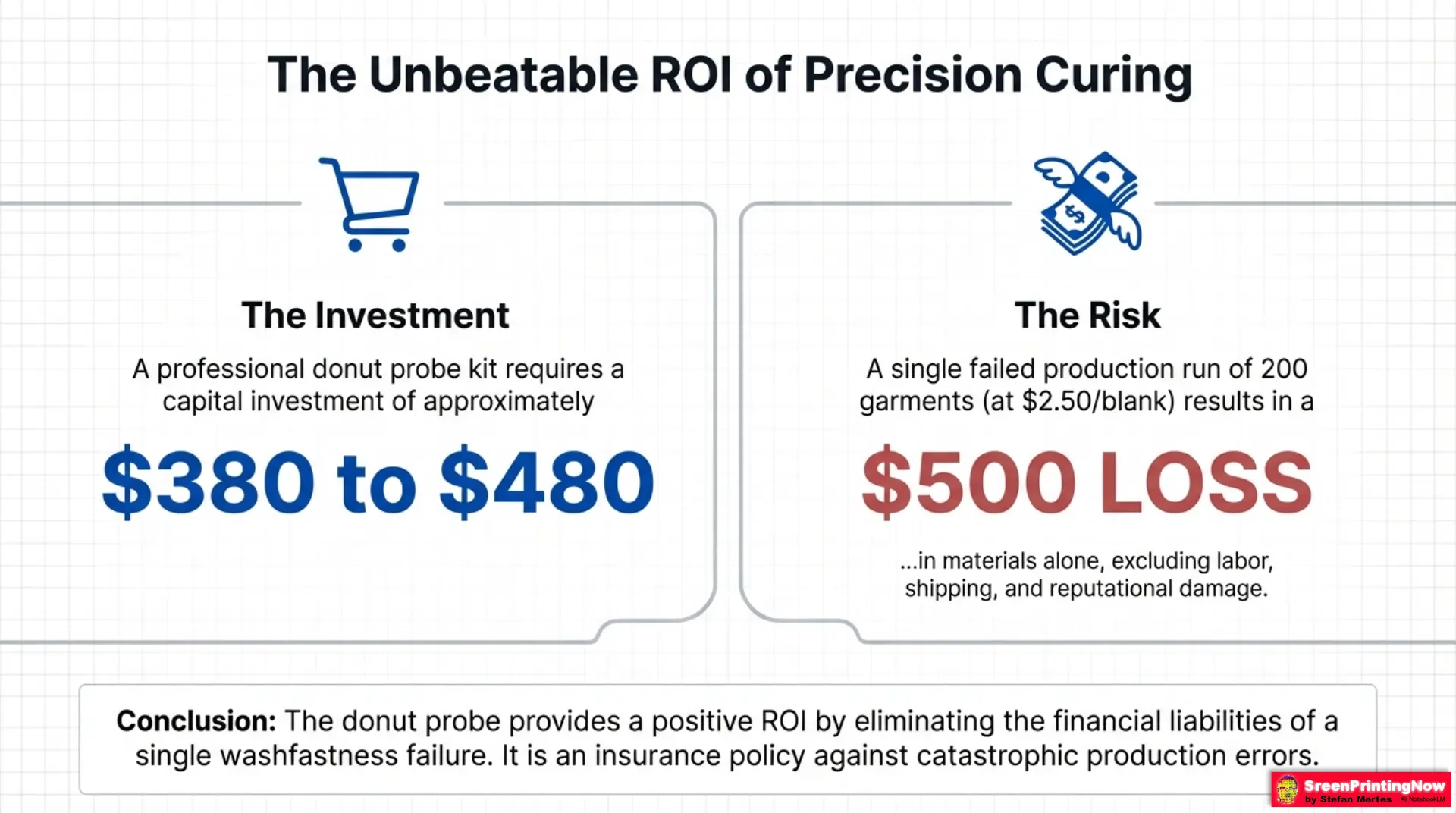

Financial Risk Example: A single failed production run of 200 garments at a cost of $2.50 per blank results in a $500 loss in raw materials alone, excluding labor and shipping. The donut probe provides a positive ROI by eliminating the financial liabilities associated with washfastness failure and customer returns.

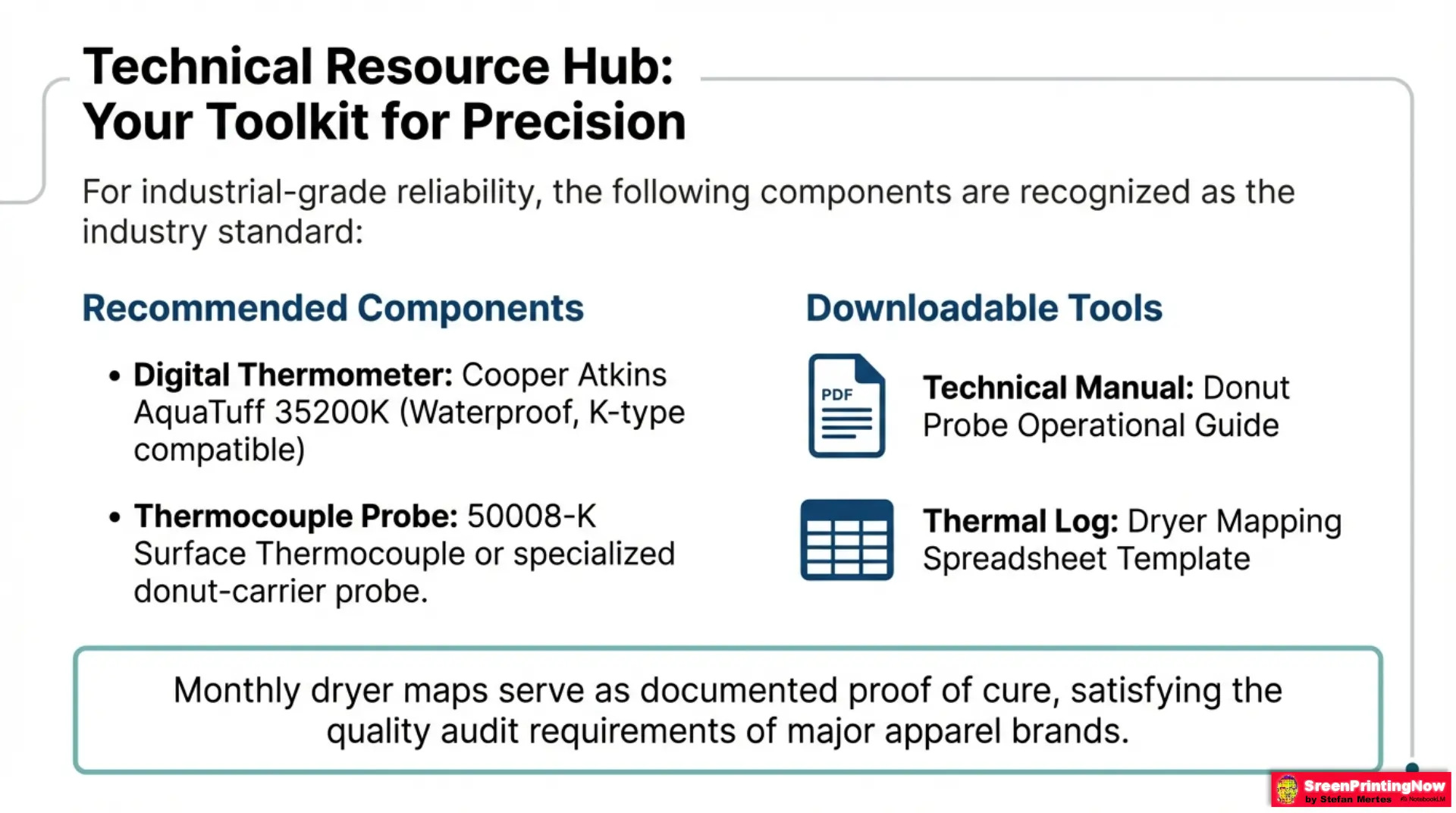

Procurement and Technical Resources

For industrial-grade reliability, the following components are recognized as the industry standard:

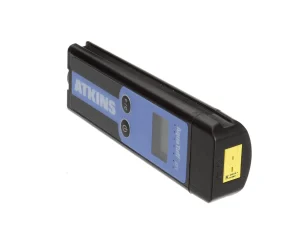

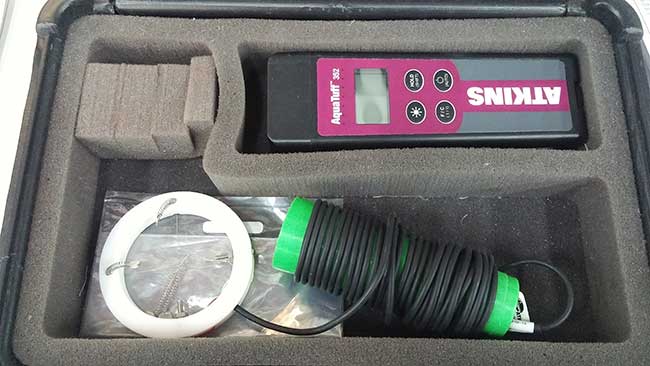

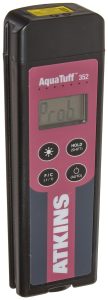

• Digital Thermometer: Cooper Atkins AquaTuff 35200K (Waterproof, K-type compatible).

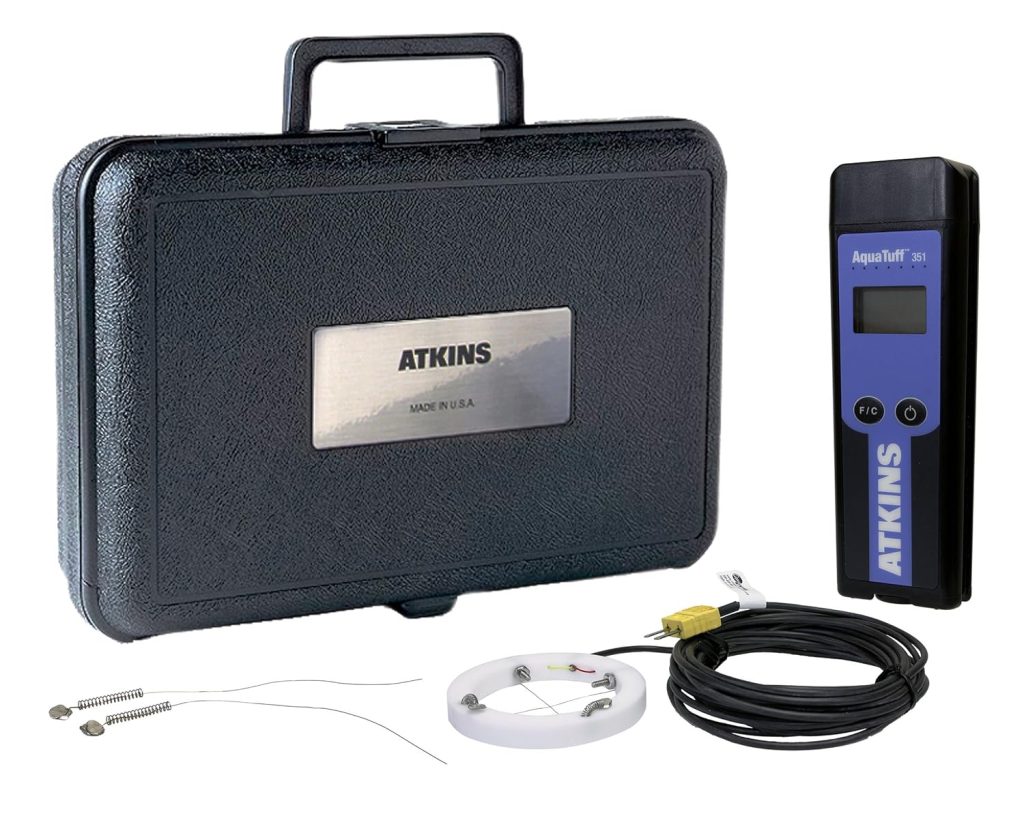

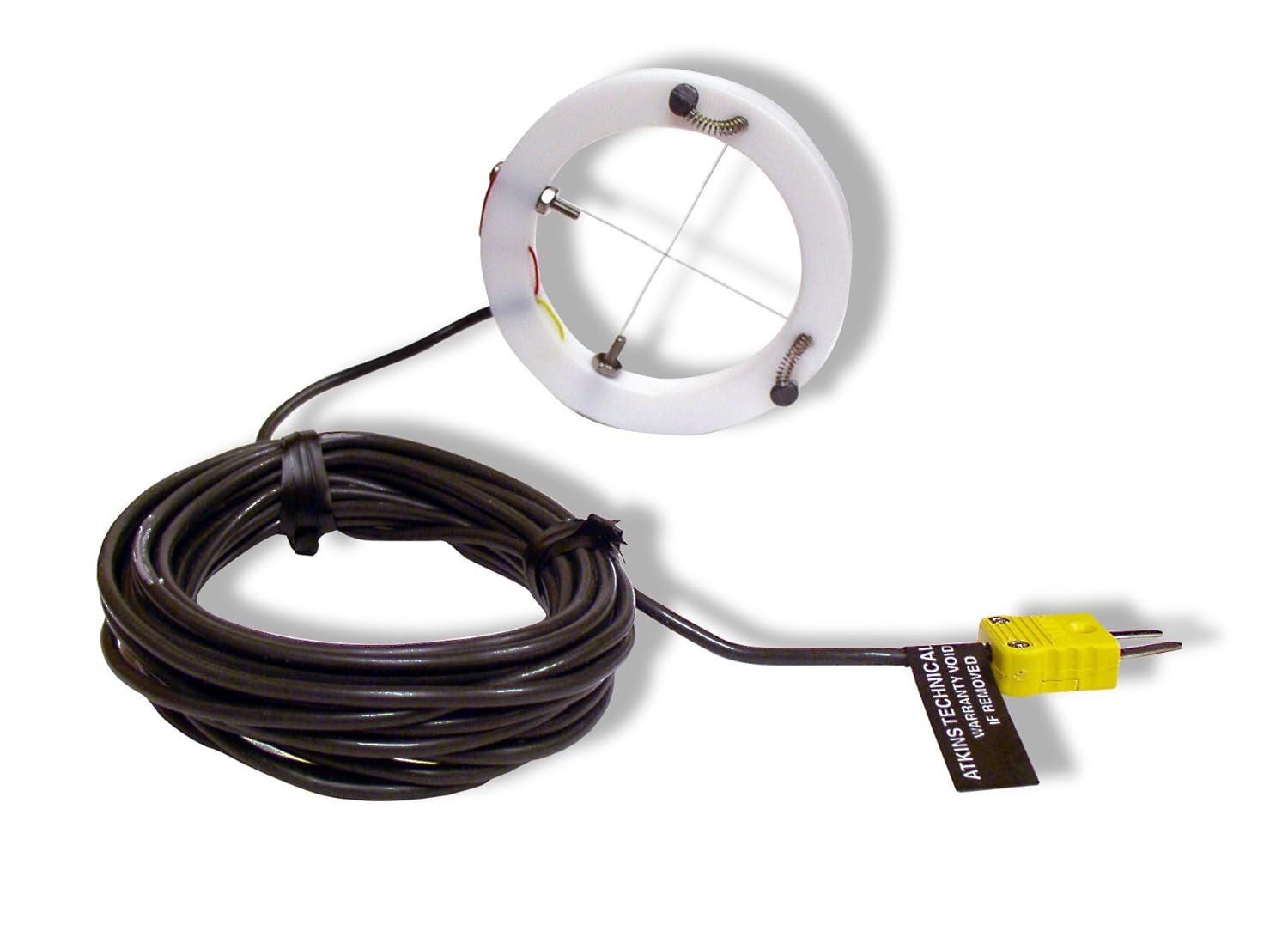

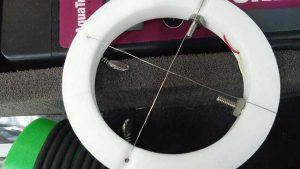

• Thermocouple Probe: 50008-K Surface Thermocouple or specialized donut-carrier probe.
• Technical Manual: Download: Donut Probe Operational Guide

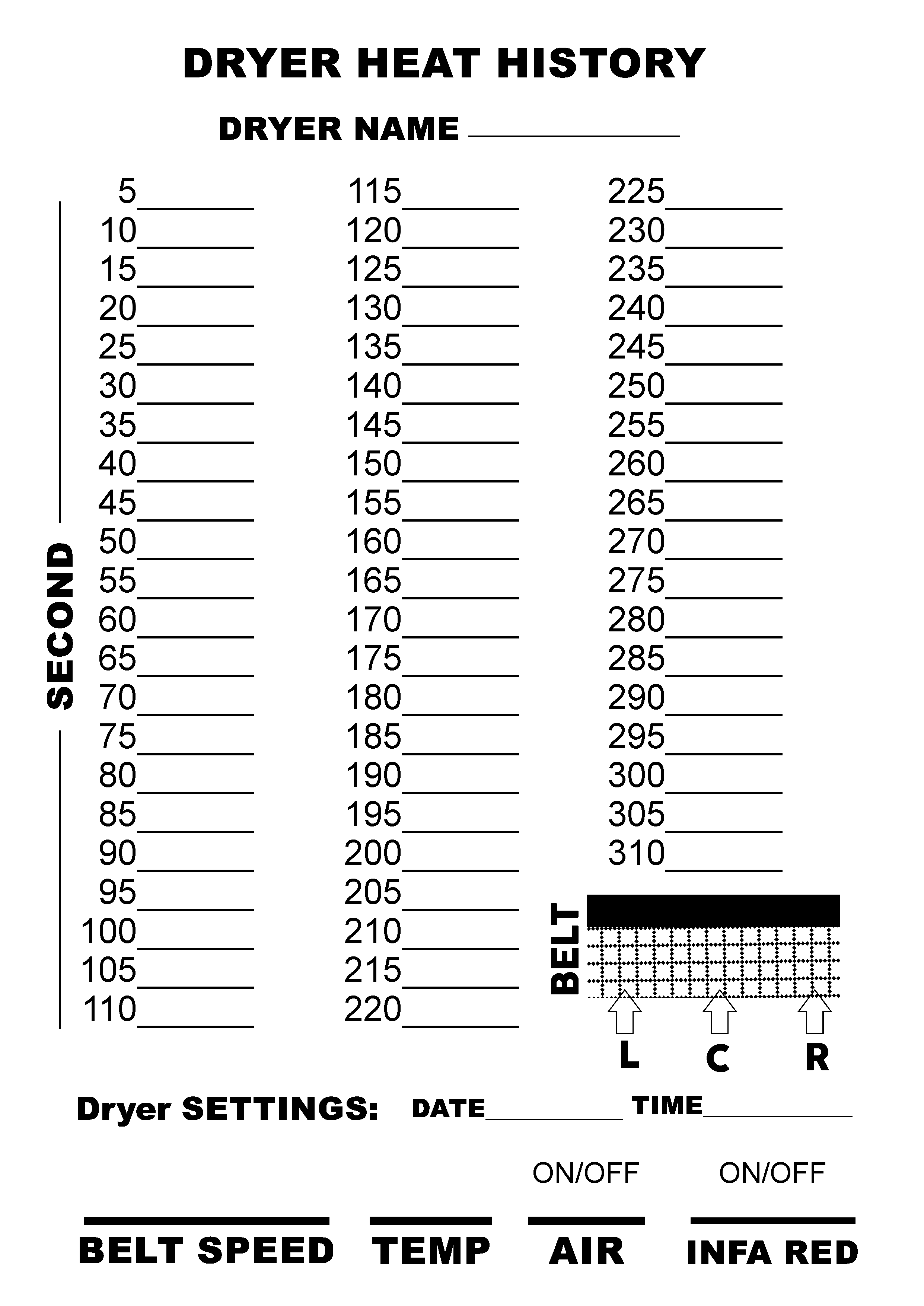

• Thermal Log: Download: Dryer Mapping Spreadsheet Template

Frequently Asked Questions (FAQ)

Why is a donut probe more accurate than an IR gun?

An IR gun only reads surface heat and is skewed by emissivity. The donut probe measures the actual internal ink temperature and the duration at that temperature.

Can a donut probe detect dead heating zones?

Yes. By recording the temperature curve across different belt positions, the probe identifies specific areas where heat elements or airflow fans are underperforming.

Do water-based inks require a donut probe?

Yes. Water-based and discharge inks are highly dependent on dwell time (60-90 seconds) to ensure all water is evaporated before the curing process can begin.
