This article aims to clarify the differences between ghost images on garments and ghost images on screens, exploring their causes, problems, and prevention.
Ghost Images on Garments: The Case of Dye Migration
This type of ghosting manifests as a faint silhouette of a previous print on the garment itself. Imagine printing a large white design on a coloured shirt. Weeks later, a faint outline of that white design mysteriously appears on the back or bottom of the garment. That’s garment ghosting in action.
Dye migration is the primary issue here. This happens when certain inks, especially low-bleed white inks meant to avoid these problems, react with specific dyes in the fabric.
Key factors contributing to garment ghosting:
- Low-Bleed White Ink on Reactive Fabrics: The chemical composition of some low-bleed inks can trigger an unwanted oxidation/reduction reaction with dyes in certain fabrics, especially 50/50 cotton blends.
- Heat and Humidity: These factors accelerate the chemical reaction between the ink and dye, exacerbating migration.
- Insufficient Curing: If the ink isn’t fully cured, residues can remain on the garment, increasing the likelihood of interaction with the dye.
Consequences of Garment Ghosting:
- Reduced Print Quality: The ghost image detracts from the overall appearance of the print, making it look faded or discoloured.
- Customer Dissatisfaction: Ghosting is a clear sign of a printing defect, potentially leading to customer complaints and returns.
Preventing Garment Ghosting:
- Choose Inks Carefully: Use low-bleed inks only when necessary, and opt for cotton whites on 100% cotton garments. Consider inks specifically formulated to resist ghosting on both cotton and blends.
- Ensure Proper Curing: Allow sufficient drying time and use appropriate dryer settings to ensure complete ink curing. Avoid stacking hot garments, as this can trap moisture and hinder curing.
- Control Environmental Factors: Minimize humidity levels in the printing environment to reduce the risk of dye migration. Use fans or air conditioning to promote moisture evaporation from garments before and after printing.
- Test for Susceptibility: Print white ink on a fabric sample, subject it to heat and moisture, and check for discoloration to assess the ink’s ghosting potential.

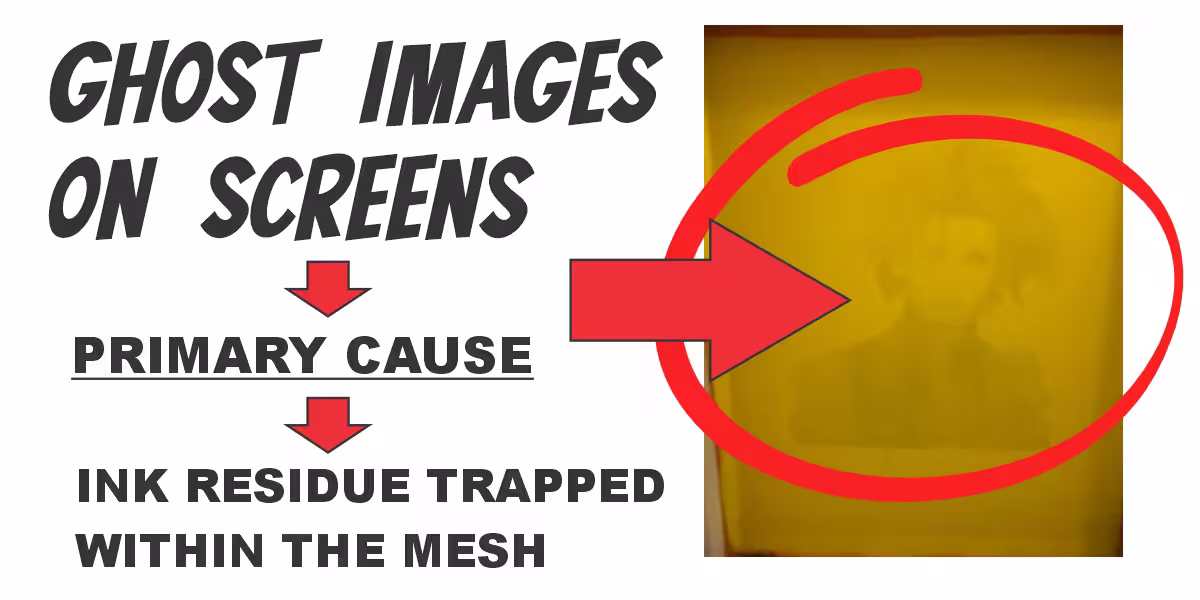

Ghost Images on Screens: When Ink Lingers
Unlike garment ghosting, this type of ghost image appears on the screen mesh itself. Imagine cleaning a screen after printing a dark design, only to find a faint outline of that design still visible on the mesh. That’s a ghost image on a screen.
From my understanding and our discussion, the primary cause is ink residue trapped in the mesh. This usually occurs when screens aren’t cleaned thoroughly after each print run, allowing ink particles, particularly from dark inks, to settle in the creases of the mesh.
Consequences of Screen Ghosting:
- Defective Prints: These ghost images can interfere with ink transfer during subsequent print runs, leading to noticeable defects like:
- Vulnerability in Certain Printing Techniques: Ghost images on screens can be particularly problematic in:
- Discharge Printing: The ghost image might not be visible until after the discharge agent reacts with the fabric dye, leaving an unwanted stain within the discharged area.
- Process and Simulated Process Printing: Ghost images can disrupt the fine colour blending and halftone dot reproduction essential for these techniques, compromising the integrity of detailed images.
Preventing Screen Ghosting:
Diligent screen cleaning is crucial to preventing this issue:
- Clean Immediately: Remove ink from the screen as soon as possible after each print run, as dried ink is more difficult to remove.
- Utilize Haze Removers: For stubborn ink stains, haze removers are essential. Here are 2 known products as example:
- Reconsider Pressure Washing: While pressure washers are useful for general screen cleaning, they are generally not recommended after applying haze removers. The high pressure can cause the chemicals to splash back, potentially harming the operator or contaminating other screens.
Additional Preventive Measures:
- Dry Screens Properly: Dry screens horizontally in a dust-free environment to prevent dust particles from settling on the mesh and creating pinholes.
- Store Screens Safely: Store screens vertically in a clean, dry location to prevent warping and damage, ensuring their longevity.
By adopting these practices, screen printers can effectively combat both types of ghosting, ensuring the production of high-quality prints and maximizing the lifespan of their screens.
Screen Printing Ghosting: FAQ
What is garment ghosting?
Garment ghosting is a faint silhouette of a previous print that appears on the garment itself. This happens when certain inks, particularly low-bleed white inks, react with dyes in the fabric, causing dye migration.
What causes garment ghosting?
Several factors contribute to garment ghosting:
- Low-bleed white ink on reactive fabrics: The chemical composition of some low-bleed inks can react with dyes in fabrics, especially 50/50 cotton blends.
- Heat and humidity: These factors accelerate the chemical reaction between the ink and dye.
- Insufficient curing: If the ink isn’t fully cured, residues can react with the dye.
How can I prevent garment ghosting?
- Choose inks carefully: Use low-bleed inks only when necessary, and opt for cotton whites on 100% cotton garments. Consider inks formulated to resist ghosting.
- Ensure proper curing: Allow sufficient drying time and use appropriate dryer settings. Avoid stacking hot garments.
- Control environmental factors: Minimize humidity in the printing environment. Use fans or air conditioning to promote moisture evaporation.
- Test for susceptibility: Print white ink on a fabric sample, subject it to heat and moisture, and check for discoloration.
What is screen ghosting?
Screen ghosting is when a faint outline of a previous print remains visible on the screen mesh itself. It’s caused by ink residue trapped in the mesh, usually because of insufficient cleaning.
What are the consequences of screen ghosting?
Screen ghosting can lead to:
- Defective prints: Pinholes, blemishes in solid areas, and inconsistent colour density.
- Issues with specific printing techniques: Problems can arise in discharge printing and process/simulated process printing.
How can I prevent screen ghosting?
- Clean immediately: Remove ink from the screen as soon as possible after each print run.
- Utilise haze removers: Use non-caustic or caustic haze removers for stubborn ink stains (handle caustic ones with care!).
- Reconsider pressure washing after haze remover: It can cause chemicals to splash back.
Are there additional measures to prevent screen ghosting?
Yes!
- Dry screens properly: Dry screens horizontally in a dust-free environment.
- Store screens safely: Store screens vertically in a clean, dry location.
Why is it important to address both types of ghosting?
Both types of ghosting can lead to print defects, customer dissatisfaction, and reduced print quality. By understanding the causes and prevention methods for both, screen printers can ensure high-quality prints and maximise the lifespan of their screens.
