Standard Operating Procedure: Garment Registration and Placement

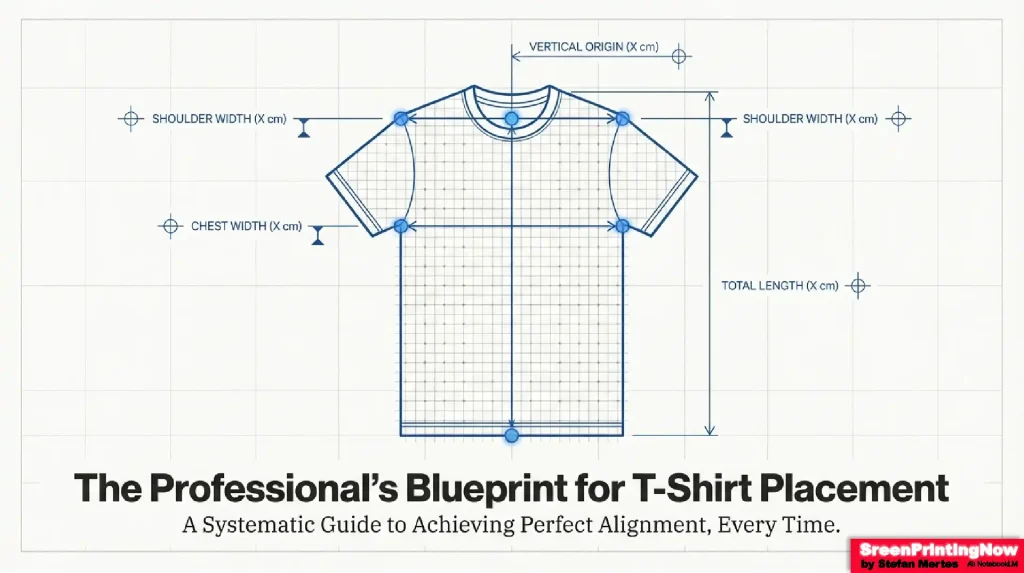

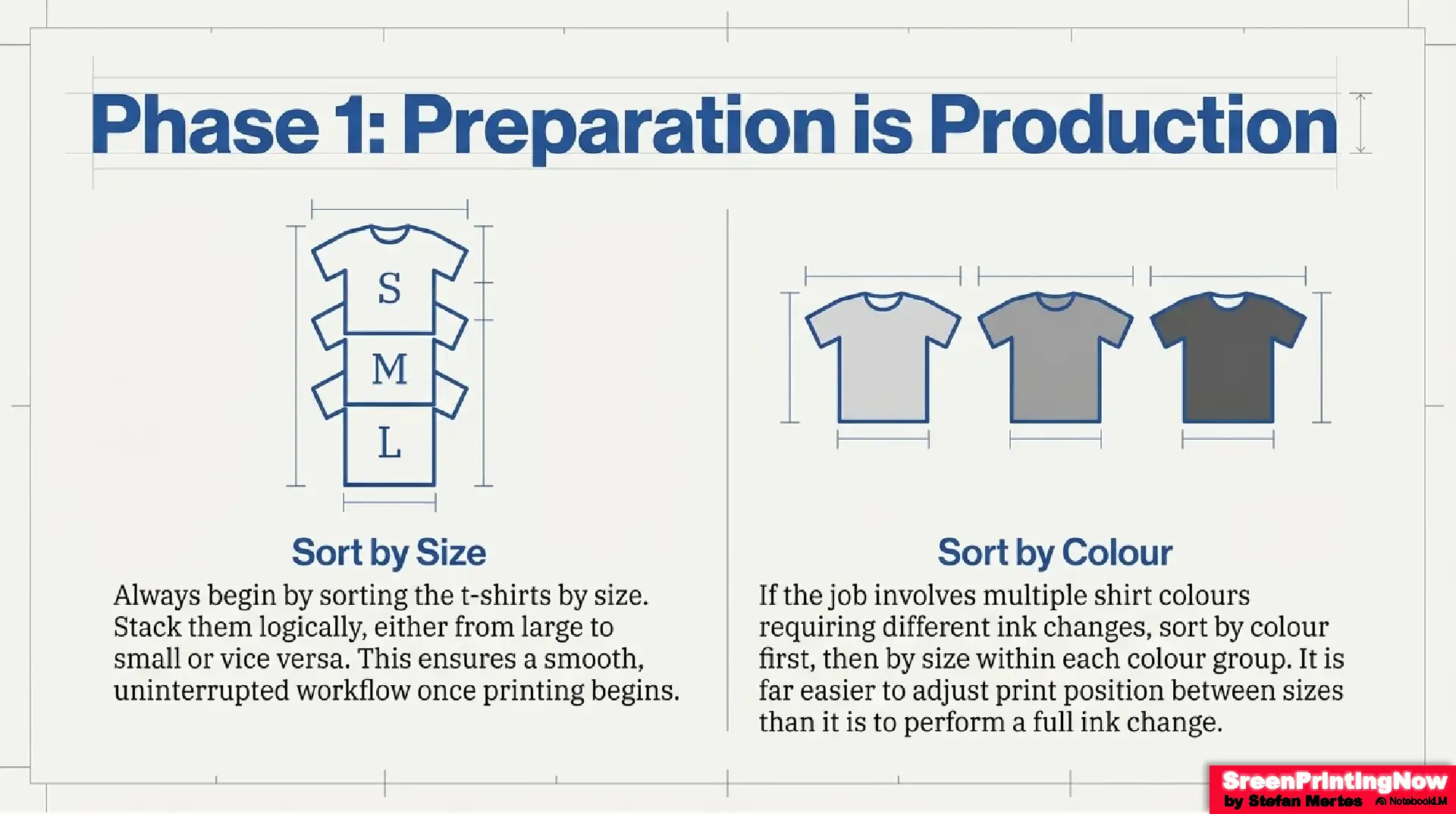

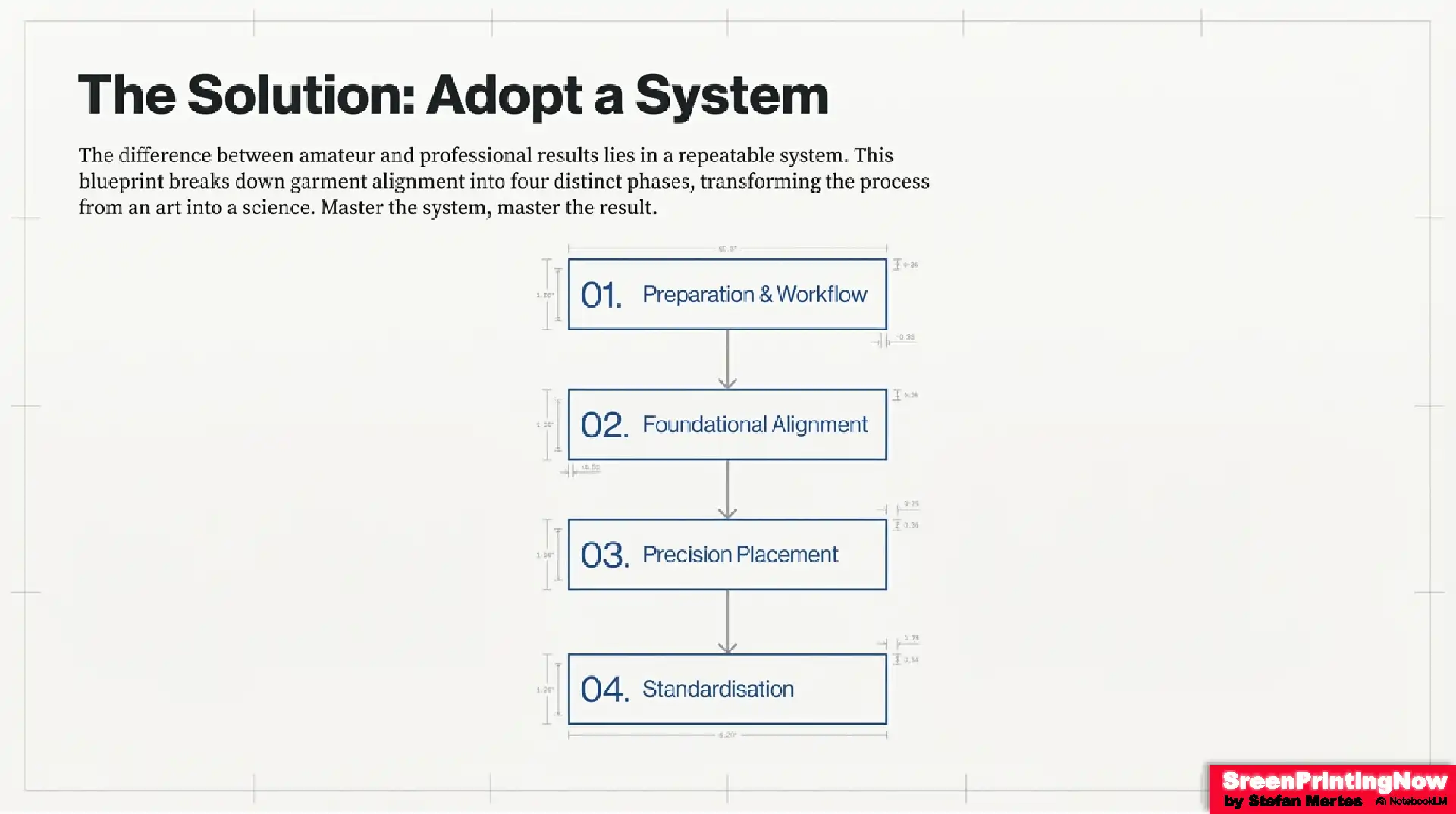

1. Sorting Protocol: Organizing Garments by Size and Color
Industrial pre-production efficiency requires sorting garments by fabric color and size to minimize press downtime. Adjusting the horizontal and vertical registration for size increments requires 75–85% less setup time compared to a multi-screen ink color change on an active carousel. Garments must be staged in an ascending size sequence (e.g., S → 2XL) to maintain a linear adjustment delta of 1.5 cm per size increment.
2. Workspace Logistics: Ergonomics for Loading Throughput

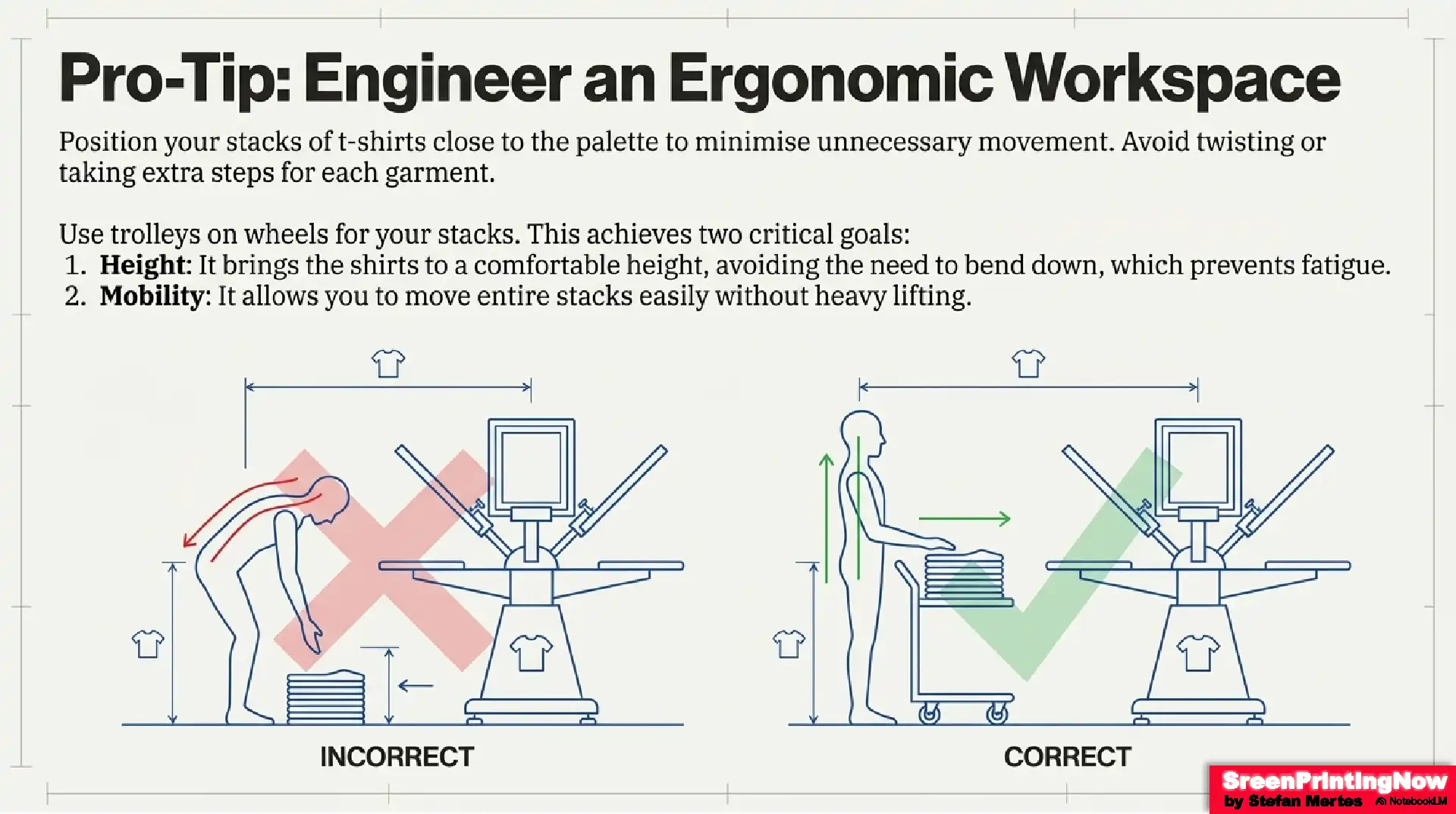

To optimize operator throughput, the garment supply stack must be positioned within a 60–80 cm radius of the loading pallet. Utilizing mobile, height-adjustable trolleys to maintain the garment stack at a target height of 90–100 cm ensures the stack remains at a constant ergonomic waist-height datum. This configuration eliminates lumbar flexion and reduces the loading cycle time per unit by approximately 15% compared to floor-level staging.
Test Your Knowledge on T-Shirt placement

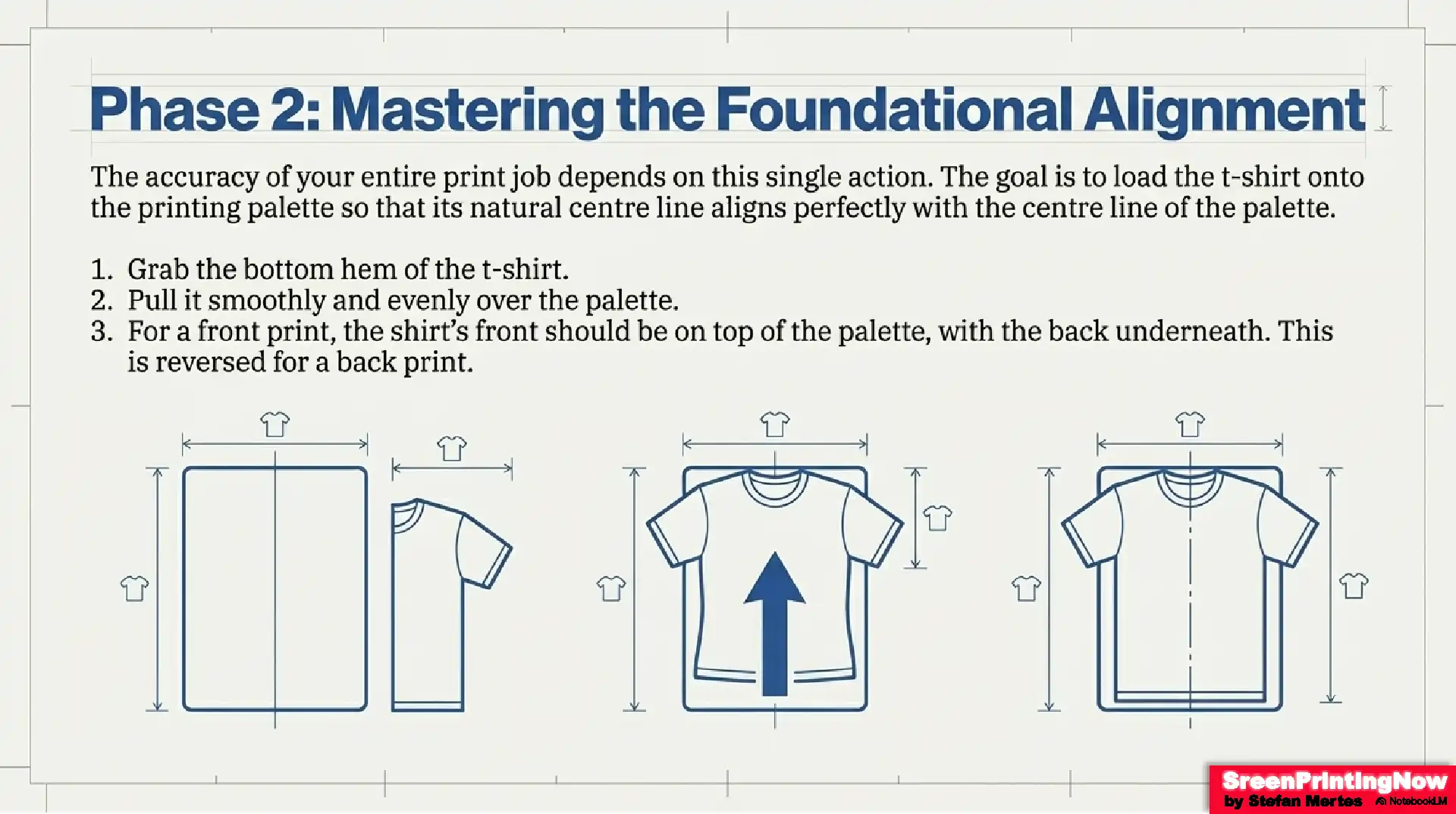

3. Alignment: Loading the T-Shirt on the Printing Pallet

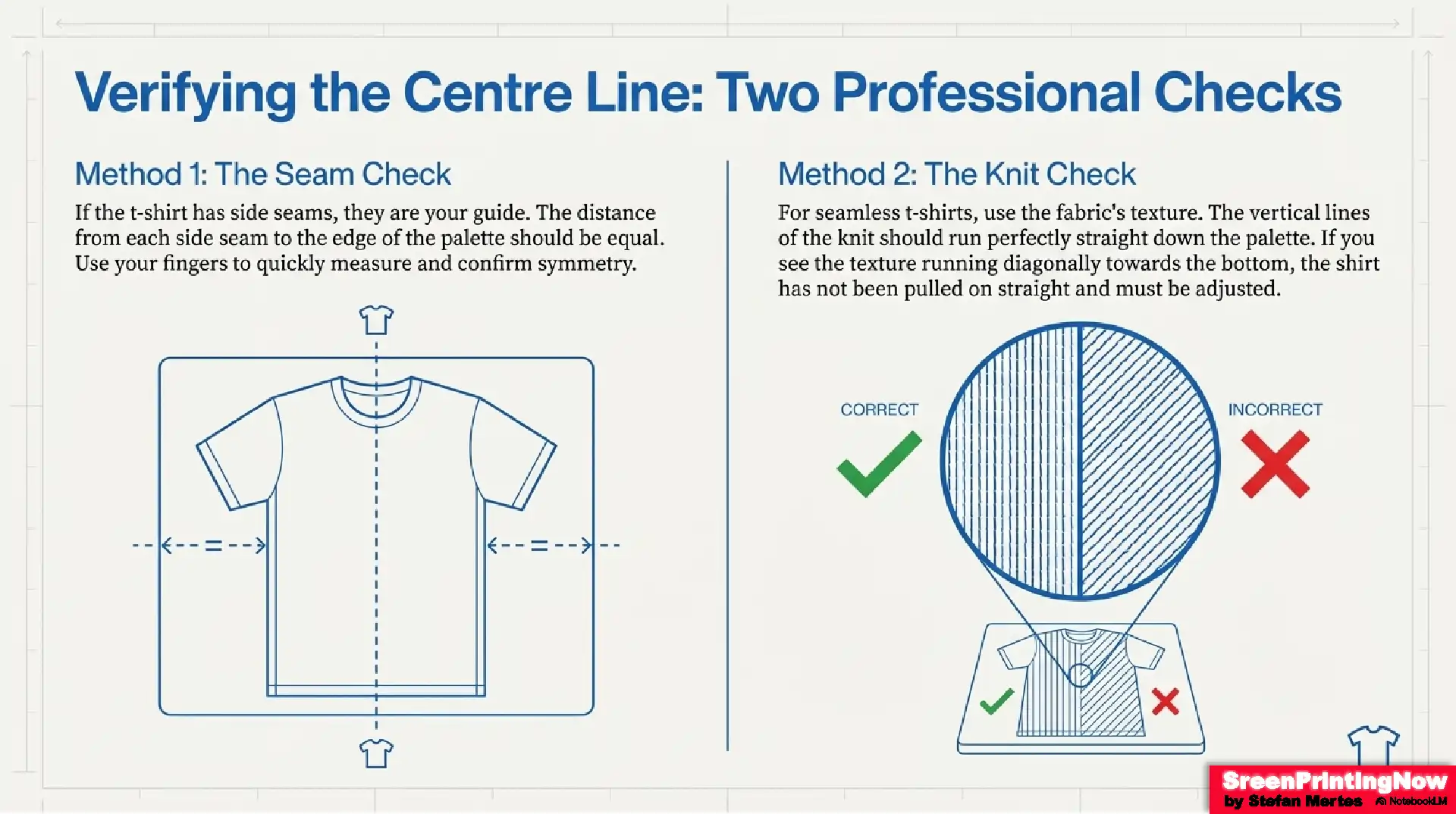

Precise garment registration within a +/- 2.0 mm tolerance begins by establishing a permanent center-axis mark on the printing pallet. Operators must verify alignment by observing the vertical knit-grain; any lateral skew of the grain relative to the pallet edge indicates a positioning error. Use a laser alignment system or a physical T-square to verify the vertical Y-axis distance between the collar seam intersection and the print origin point (0,0).

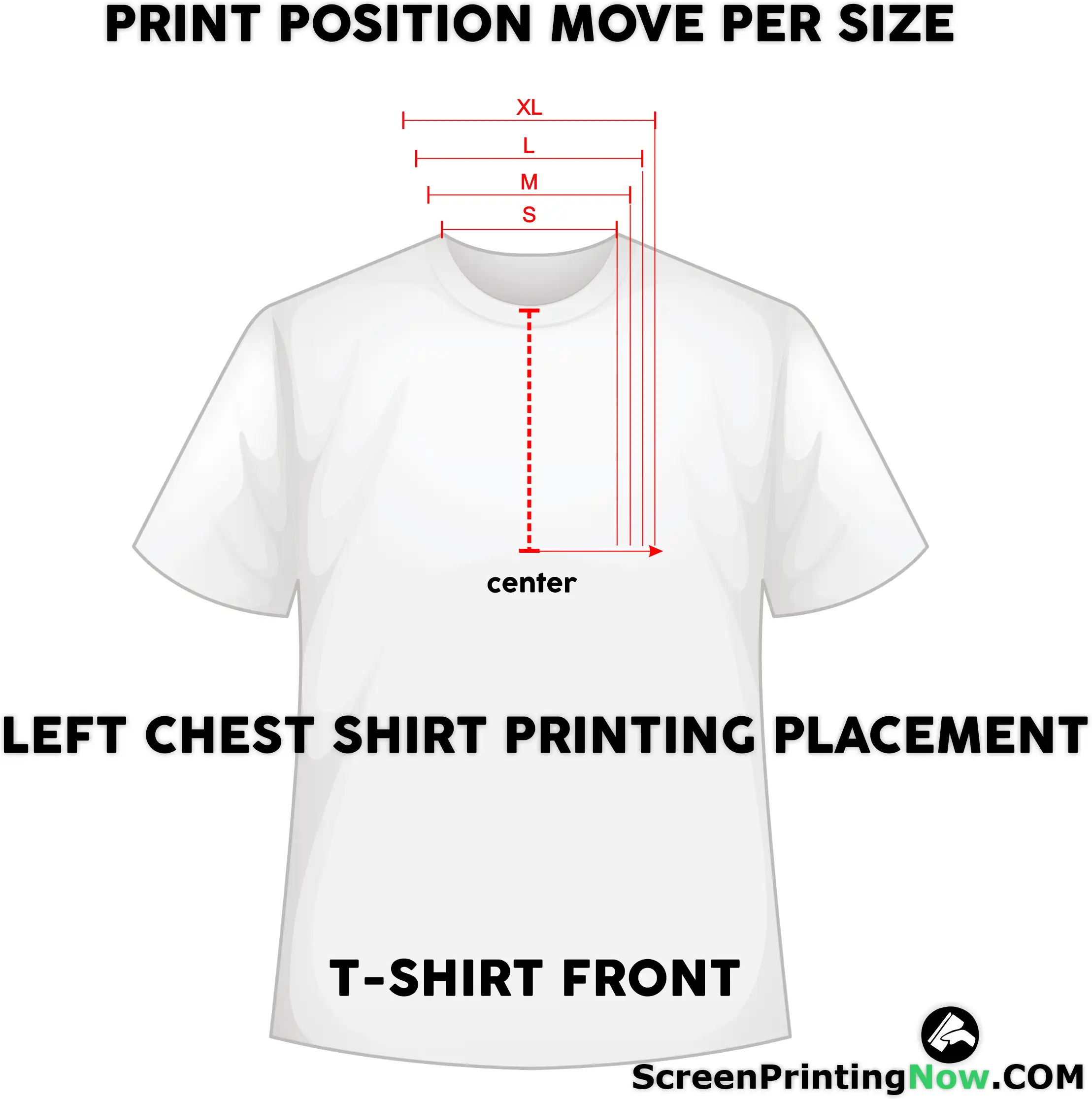

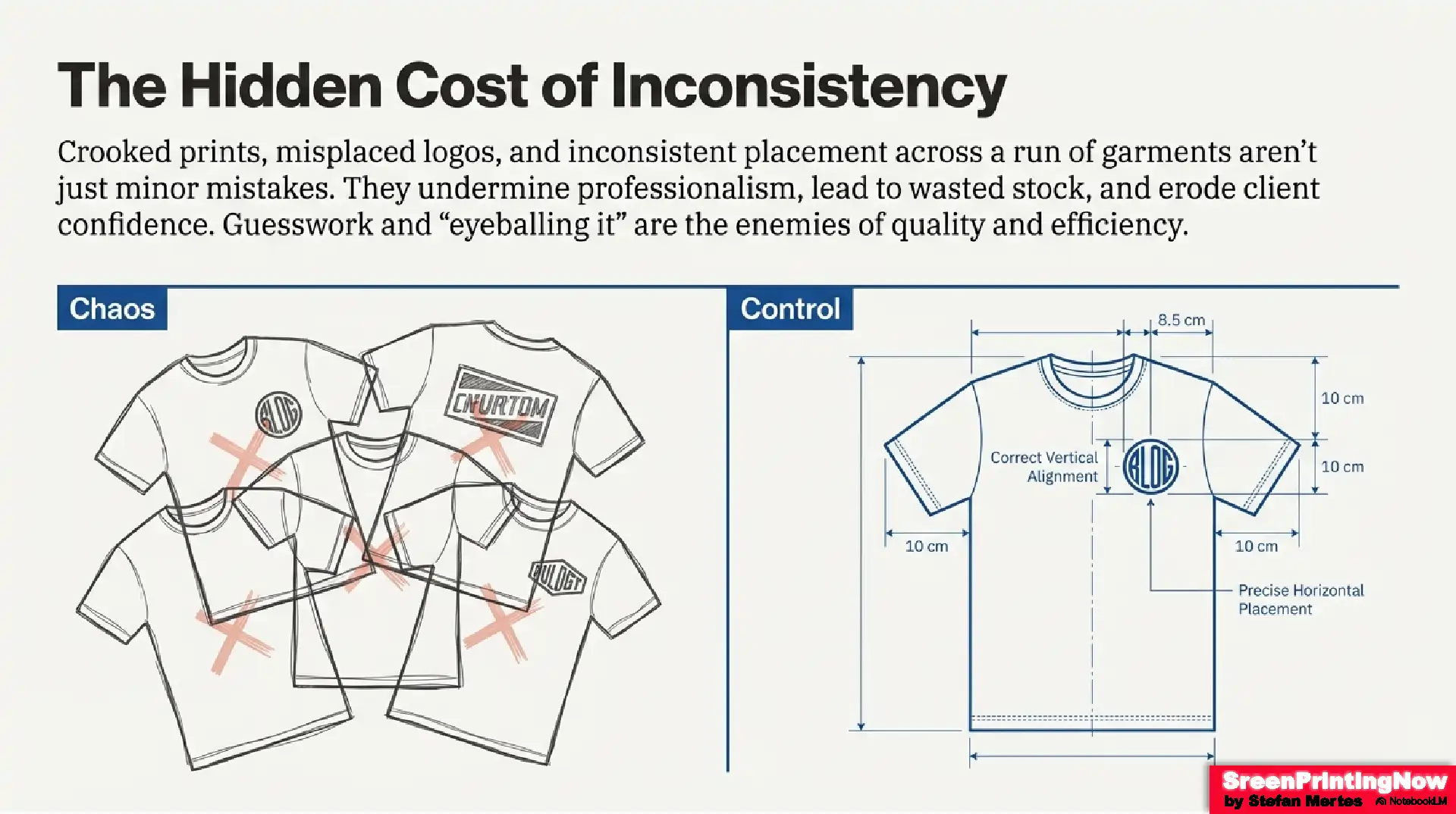

4. Front Print & Left Chest Logo: Technical Placement Matrix

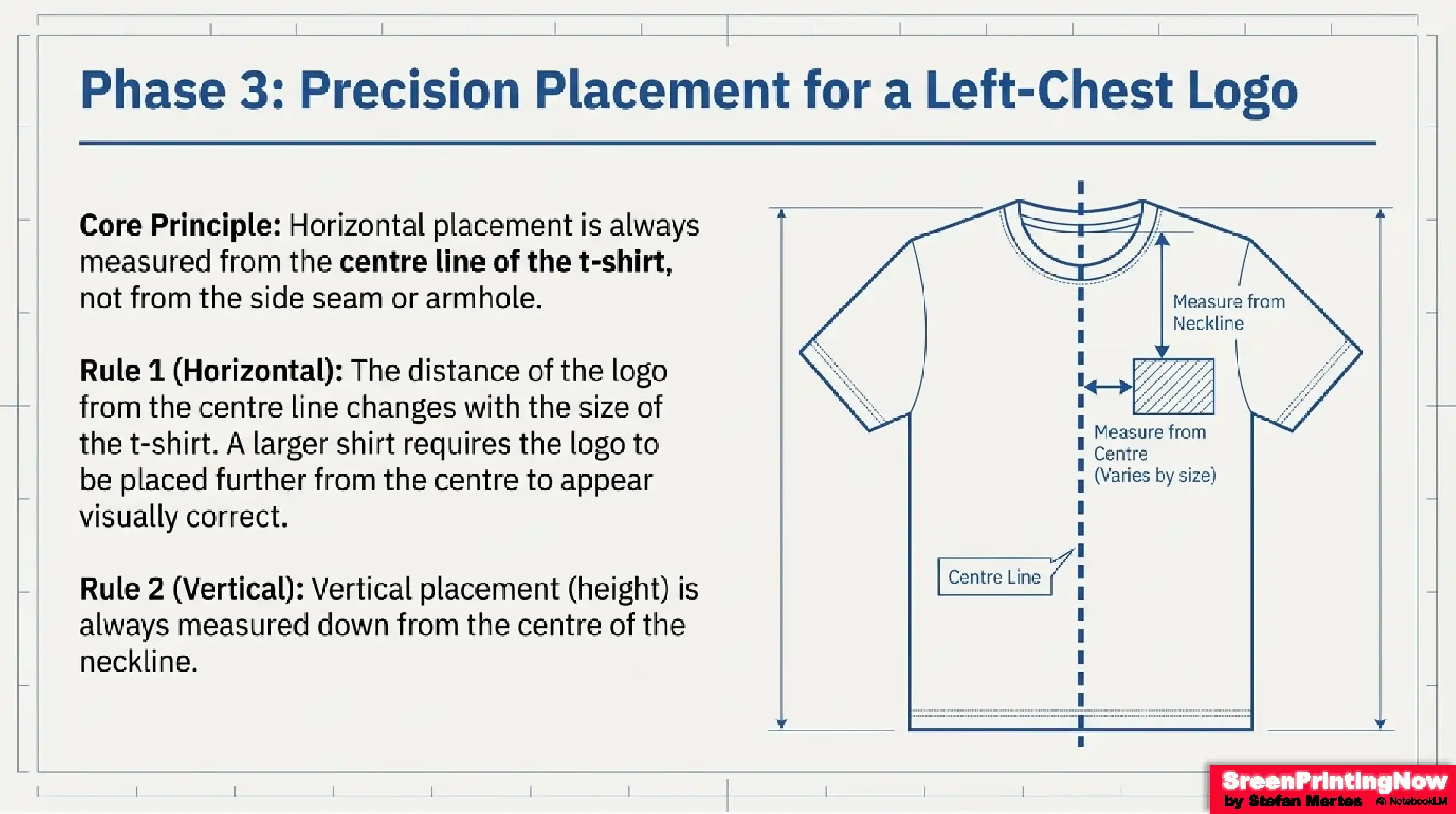

The coordinates for Logo and Front Print placement are defined by the intersection of the vertical center-line and the horizontal neckline origin. For adult unisex garments, the horizontal offset from the center-line must increase proportionally with size to maintain anatomical centering.
| Garment Size | Vertical Drop (Y-Axis) | Left Chest Offset (X-Axis) |
|---|---|---|
| Small (S) | 7.5 cm (3.0″) | 7.0 cm (2.75″) |
| Medium (M) | 9.0 cm (3.5″) | 8.5 cm (3.35″) |
| Large (L) | 10.5 cm (4.1″) | 9.5 cm (3.75″) |
| X-Large (XL) | 12.0 cm (4.7″) | 10.5 cm (4.1″) |
| 2X-Large (2XL) | 13.5 cm (5.3″) | 11.5 cm (4.5″) |
*Note: Vertical Drop is measured from the collar ribbing intersection to the graphic top-bleed origin.

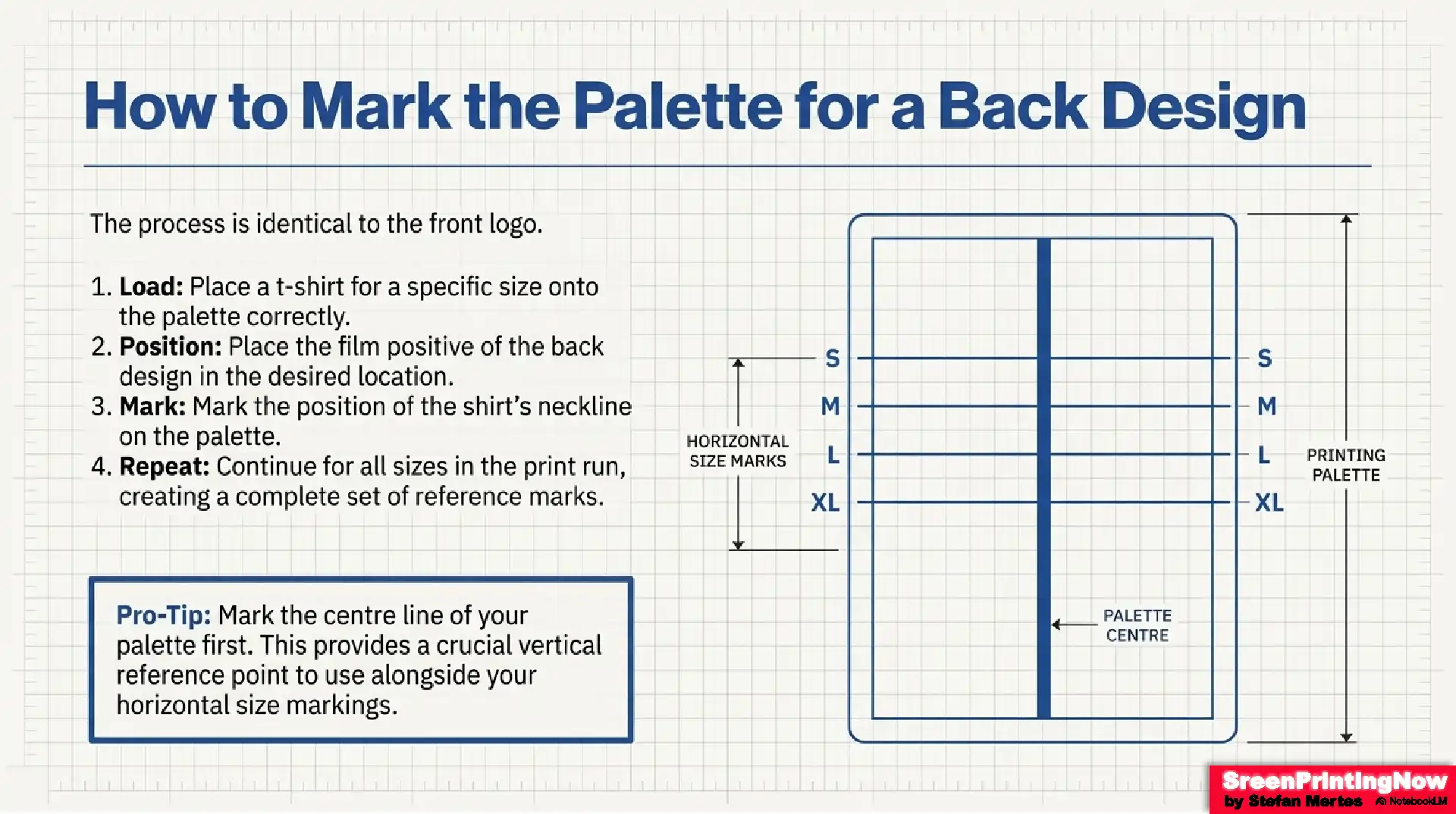

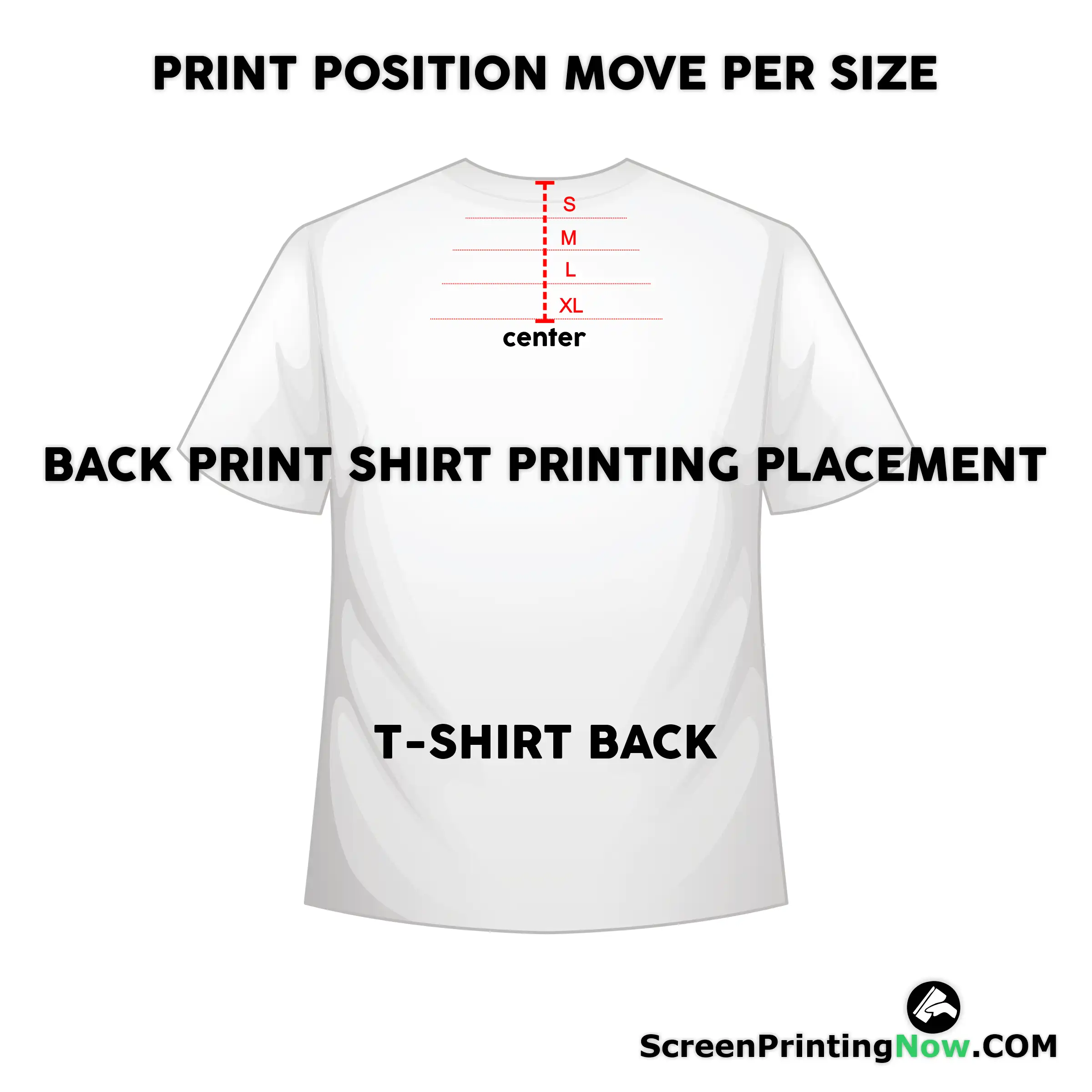

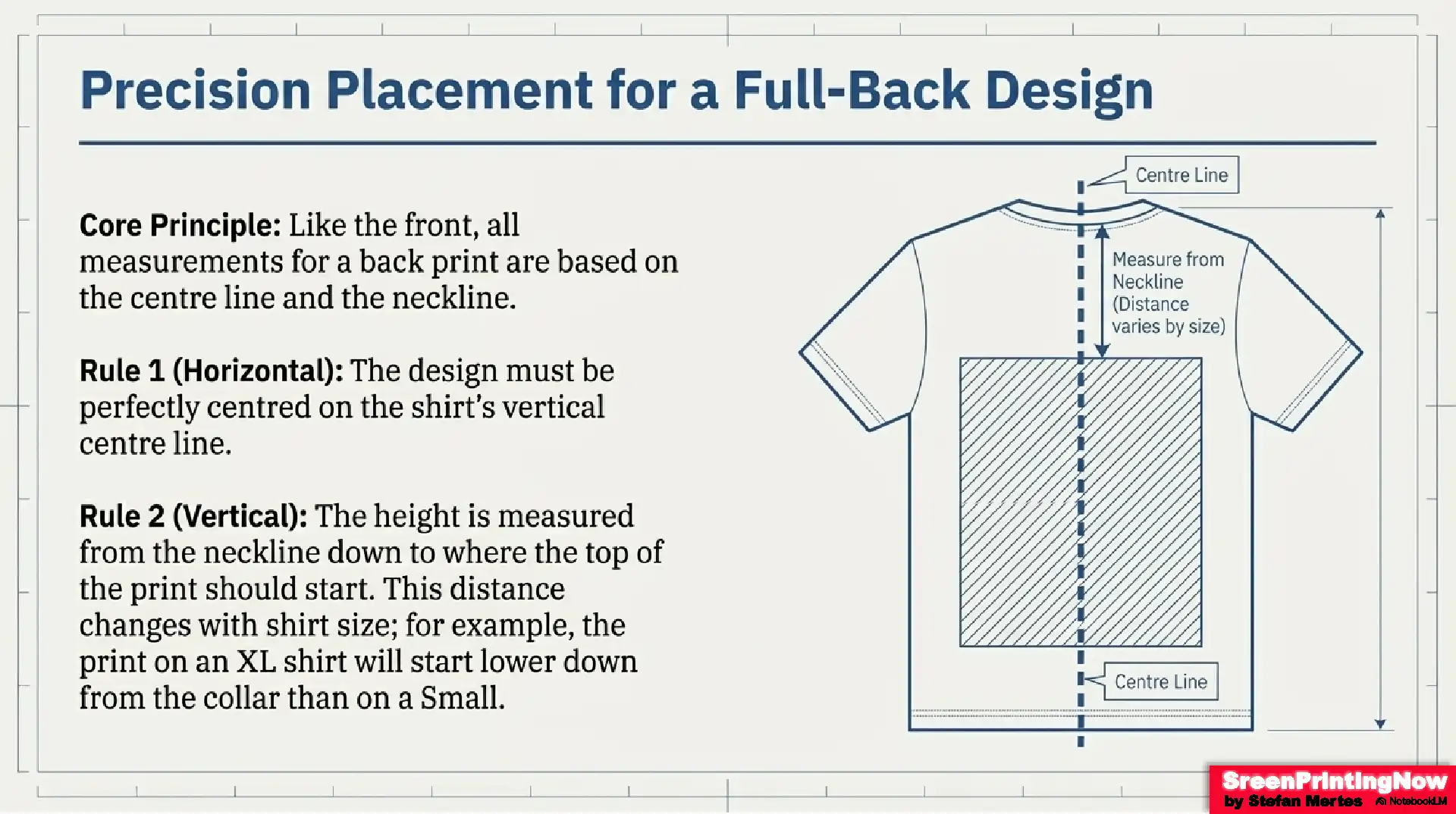

5. Back Print Positioning: Vertical Drop and Sizing Delta
The Back Print is anchored to the garment’s vertical center-axis. The vertical drop from the collar edge must be scaled according to size to achieve anatomical centering on the scapular region. An XL garment requires a vertical Y-offset of 11.5 cm, which is 2.5 cm lower than the Size S baseline, ensuring consistent registration across the size run.

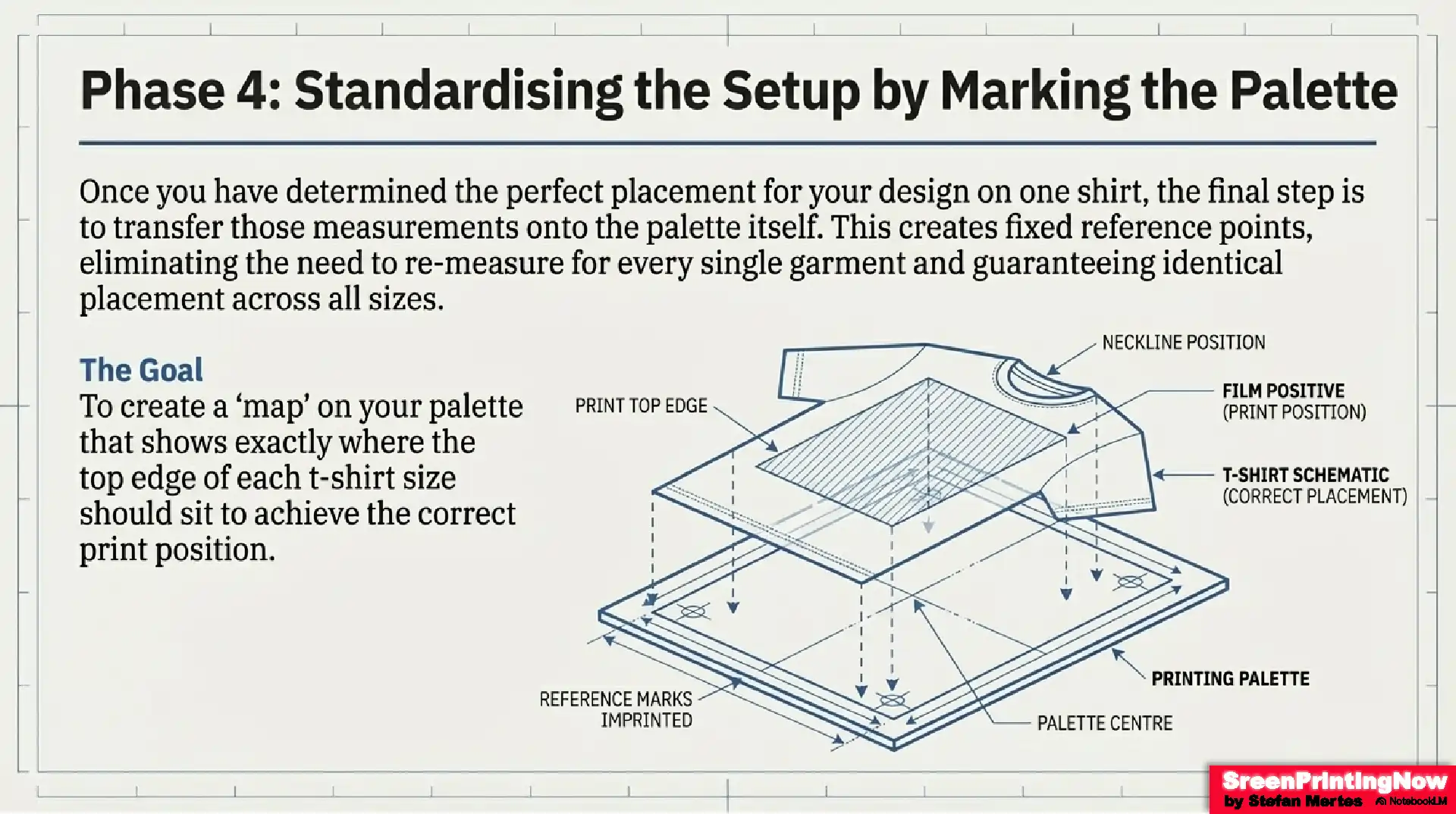

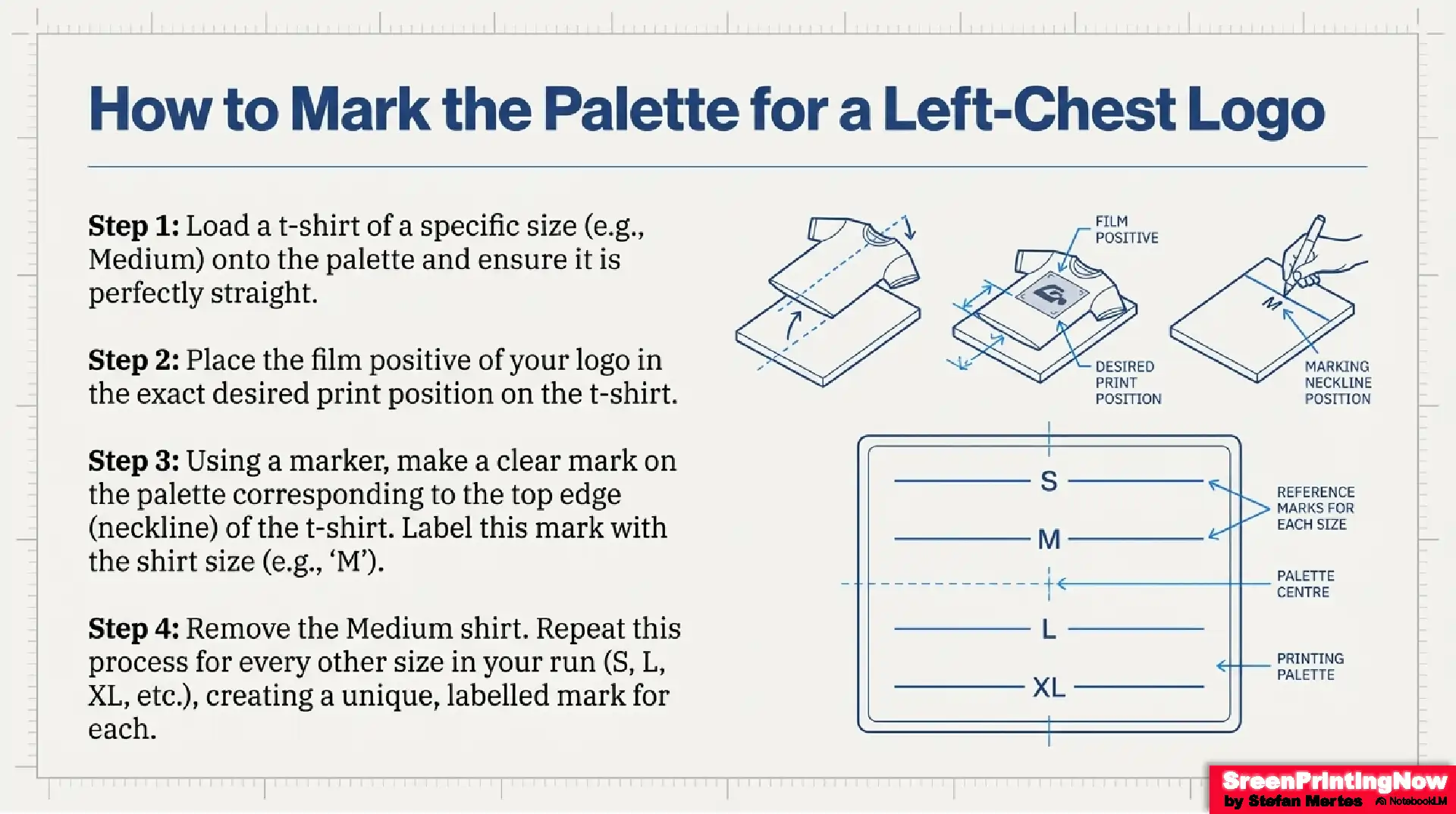

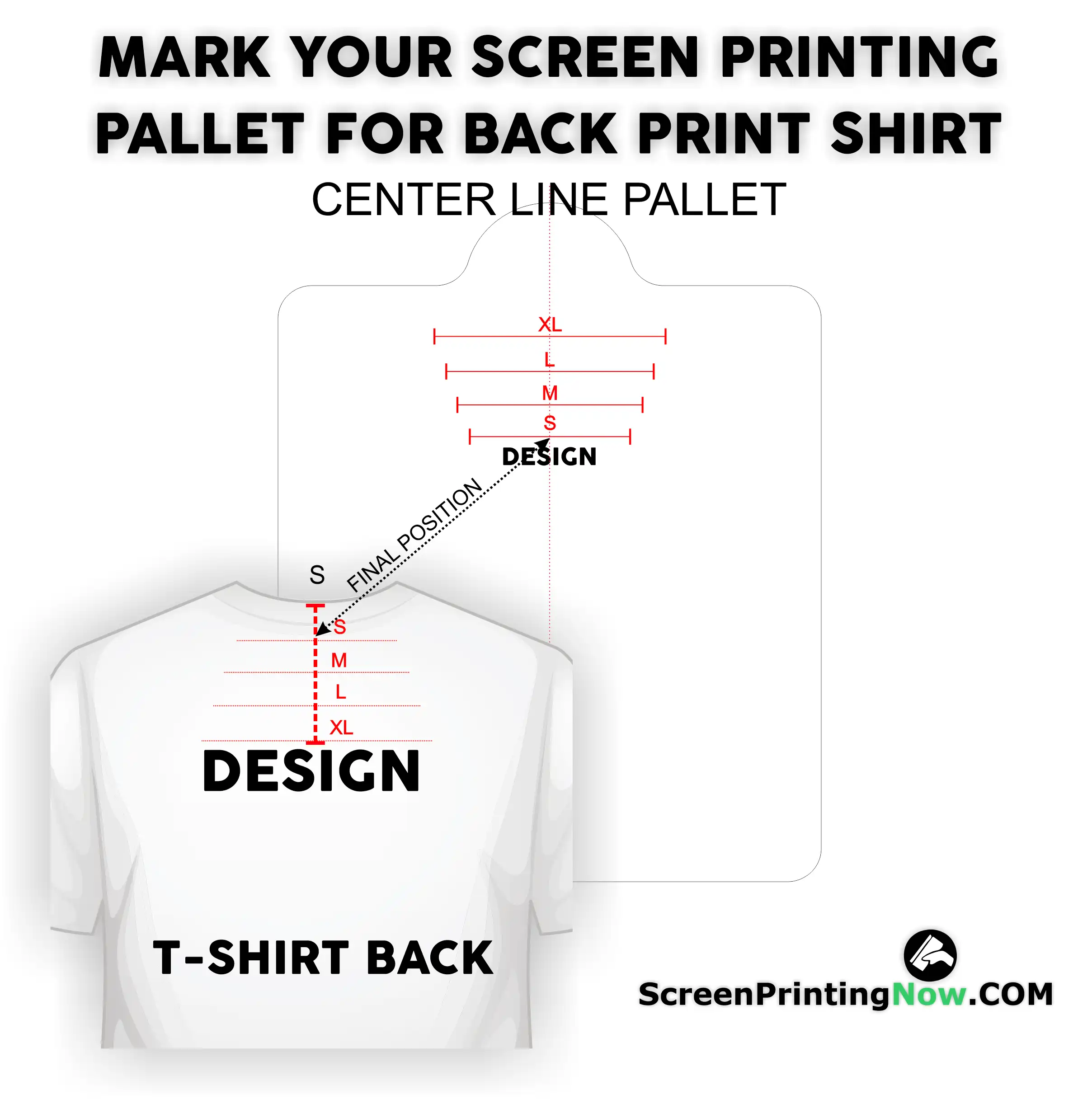

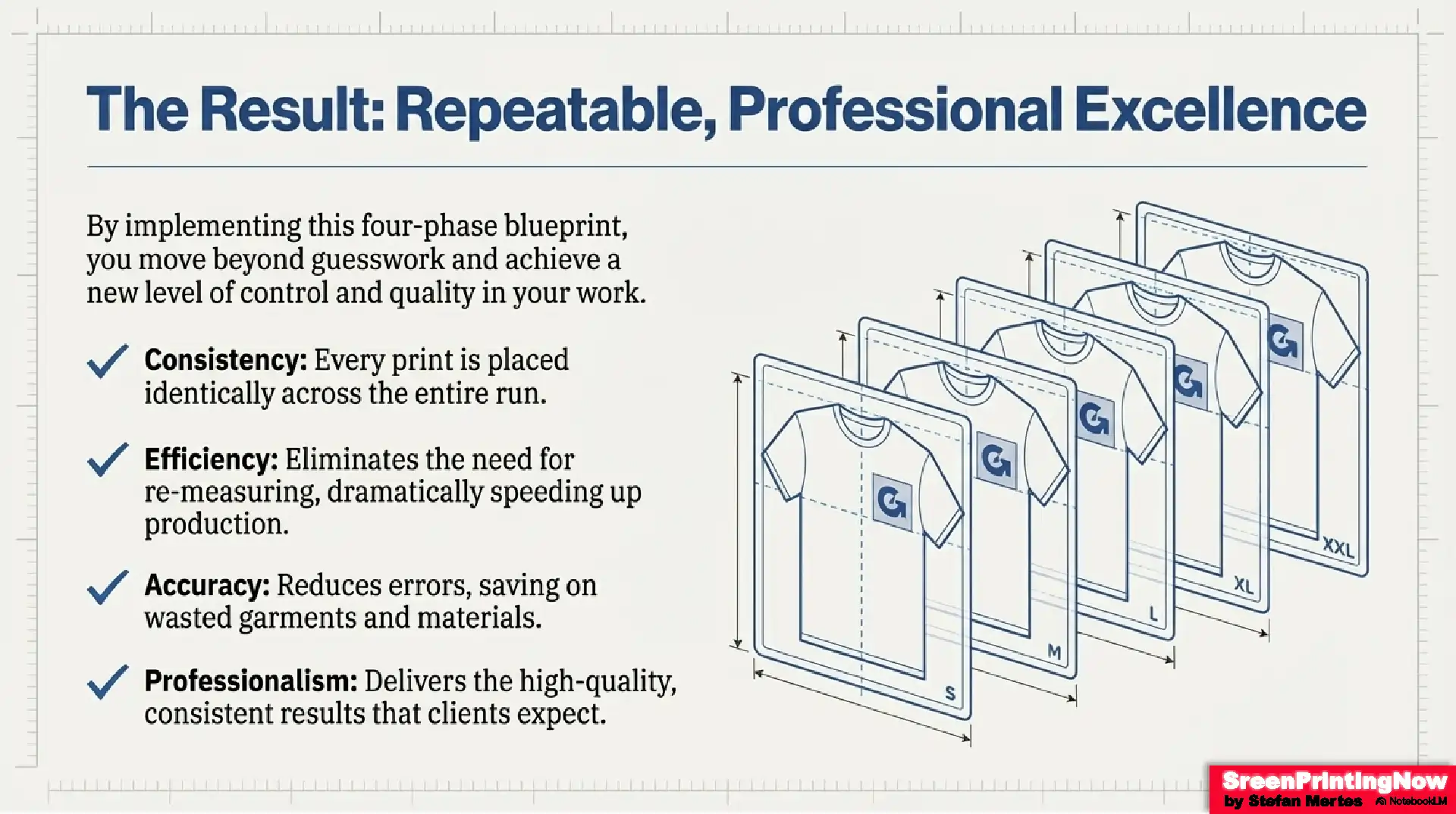

6. Palette Calibration: Marking for Multi-Size Registration

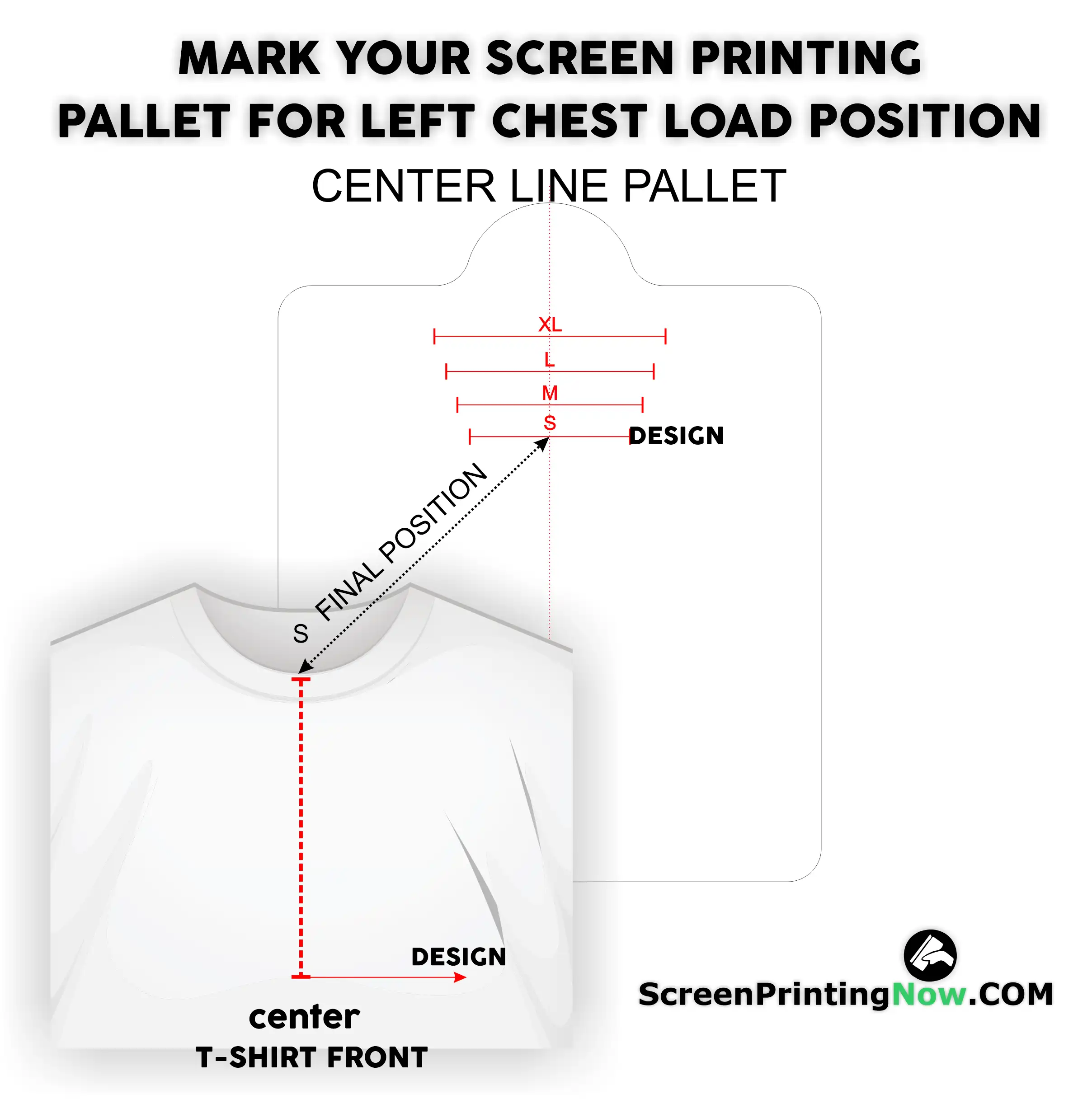

Pallets must be calibrated for multi-size runs using registration films. By aligning film center-marks with the pallet axis, operators apply semi-permanent markings for each size (S–3XL). This calibration establishes a repeatable loading cadence of 4–6 seconds per unit, maintaining tolerances within +/- 2.0 mm.
