Technical Standards for Screen Printing on Elastane (Lycra®) and High-Stretch Blends

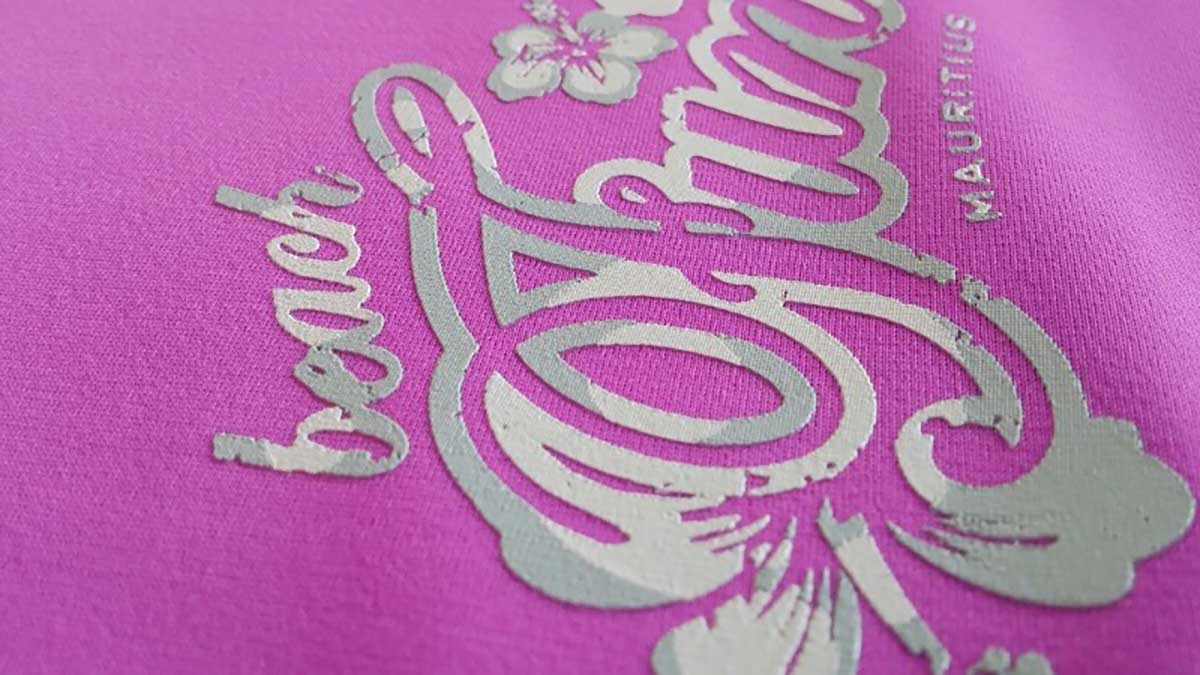

Screen printing on elastane fibers (Lycra®/Spandex) requires specific process parameters to accommodate a fiber elongation at break of up to 600% and to mitigate the thermal instability of synthetic blends. The primary technical challenges are cohesion failure (cracking during extension) and dye migration (sublimation of disperse dyes into the ink film).
Substrate Properties and Failure Modes
Elastane is a segmented polyether-polyurea copolymer typically blended with polyester or nylon. The copolymer structure of the material presents three distinct processing constraints:
- Thermal Shrinkage: Elastane fibers undergo irreversible dimensional deformation at temperatures exceeding 160°C (320°F).
- Dye Sublimation: Disperse dyes in polyester/elastane blends begin to sublime (transition from solid to gas) at approximately 145°C (293°F). These gas-phase dye molecules diffuse into the ink layer, causing discoloration (dye migration).
- Modulus Mismatch: Standard PVC plastisol inks possess a lower elongation limit (< 50%) compared to the substrate (> 300%), leading to mechanical cracking under stress.
Ink System Specification
Selecting an ink system is determined by the required elasticity modulus and the migration resistance of the chemistry.
1. Plastisol with Elongation Additives
Standard PVC plastisol requires the addition of a plasticizer-based elongation additive.
- White Underbase: Requires 40–50% additive by weight to maintain opacity while allowing stretch.
- Top Colors: Require 10–20% additive by weight.
- Migration Blocking: A distinct “Blocker Base” (gray or black containing activated carbon) must be printed as the first layer to absorb sublimated dye molecules.
2. Two-Component Silicone Systems
Silicone inks offer elongation capabilities of > 300% and elastic recovery rates of > 95%, making them the standard for performance wear.
- Cure Temperature: Silicone cross-links at 120–130°C (248–266°F), remaining well below the dye sublimation threshold.
- Chemical Inertness: Silicone does not accept disperse dyes, providing intrinsic migration resistance without heavy blocker layers.
3. High-Solid Acrylic (HSA) Water-Based Inks
HSA inks utilize a Polyisocyanate or Aziridine-based cross-linker (1–3% by weight) to form a polyurethane-like film. HSA inks remain on the fabric surface (“top-sitting”) rather than penetrating the fiber, preserving opacity on dark synthetic substrates.
Mesh Geometry and Rheology
High-viscosity stretch inks require open mesh geometries to achieve a theoretical ink volume (Vth) of > 23 cm³/m².
| Layer Function | Recommended Mesh (Metric) | Tension | Technical Purpose |
|---|---|---|---|
| Migration Blocker | 32 – 43 T/cm | > 25 N/cm | Maximum deposit for dye absorption. |
| Stretch Underbase | 43 – 54 T/cm | > 25 N/cm | Foundation for opacity and elasticity. |
| Top Colors / Detail | 61 – 79 T/cm | > 20 N/cm | Definition and reduced surface tack. |
Thermal Curing and Process Control
Temperature control is the critical control point (CCP) for preventing dye migration. The objective is to achieve full resin cross-linking while maintaining the substrate temperature below 140°C.
- Target Temperature (Low Cure): 130°C – 140°C (265°F – 285°F).
- Dwell Time: Minimum 60 seconds in a conveyor dryer is required to ensure the ink mass reaches the cure temperature throughout.
- Validation: Process verification must use a Donut Probe (thermocouple) embedded in the wet ink. Infrared (IR) thermometers yield measurement errors > 15°C on reflective synthetic fibers due to low emissivity values ($\epsilon < 0.95$).
Quality Assurance: Accelerated Migration Test
Standard visual inspection is insufficient as dye migration can occur 24–48 hours post-production. The following accelerated test protocol predicts long-term stability:
- Preheat a thermal transfer press to 160°C (320°F).
- Cover the cured print with a white polyester test cloth.
- Press for 30 seconds at 3 bar pressure.
- Evaluation: Any transfer of pigment to the white cloth indicates unstable dye sublimation, requiring an increase in blocker deposit thickness or a reduction in curing temperature.
Technical FAQ: Process Troubleshooting
Is Discharge printing viable on Polyester/Elastane blends?
Discharge printing is not viable on Polyester/Elastane blends. Standard discharge agents, such as Zinc-Formaldehyde Sulfoxylate (ZFS), chemically degrade the polyurethane bonds within the elastane fibers. This leads to immediate structural failure, causing the fabric to become brittle and lose its elasticity. Additionally, discharge printing on the polyester component typically yields visually inconsistent results.
What causes cracking/shrinkage despite using stretch additives?
Cracking or shrinkage can occur despite the use of stretch additives if the dried ink film thickness exceeds 200 µm or if the ink is under-cured. An excessively thick ink deposit reduces the elasticity modulus, overpowering the flexible properties of the additives. Furthermore, if the cure temperature does not reach 130°C throughout the entire ink layer, the resin remains brittle. To prevent this, use higher mesh counts (> 61 T/cm) to effectively control the deposit thickness.
Why is Silicone ink preferred over Plastisol for performance wear?
Silicone ink is preferred over Plastisol for performance wear because it offers superior elasticity with a recovery rate of over 95%, which is essential for athletic fabrics. Unlike Plastisol, Silicone ink is chemically inert and does not accept sublimated disperse dyes; this eliminates the need for a heavy “Blocker Base,” resulting in a much softer hand feel and a thinner total print stack.
