Understanding Causes, Solutions & Future Technologies
This guide explains what pinholes are, why they occur, how to prevent them, and how modern technology is shaping a pinhole-free future.
What Are Pinholes? (Definition & Impact)
Pinholes are tiny, unintended holes or weak spots in the emulsion layer of a screen. Though microscopic, they cause real-world consequences:
- Ink leaks into non-image areas
- Print quality declines noticeably
- More rejects and reprints
- Higher labor and material costs
Emulsion exists to block ink where no design should appear. Any defect — even the size of a grain of dust — breaks that barrier.
A Brief History: Why Pinholes Have Always Existed
Pinholes are not a modern problem. Even before photo emulsions existed:
- The introduction of photosensitive emulsions in the 20th century enabled precision — but also introduced new opportunities for micro-defects.
- Despite new emulsions and better equipment, the root causes have not changed:
contamination, inconsistent coating, humidity, and exposure errors.
Understanding this historical continuity helps printers focus on prevention rather than myths and guesswork.
How to Detect Pinholes
Visual Inspection
- Hold the screen to a strong light source.
- Rotate or tilt the screen — pinholes often appear only at specific angles.
- Look for tiny points of light or cloudy weak areas in the emulsion.
Detection takes seconds; correction on-press costs minutes; prevention saves hours.
The Causes of Pinholes — and How to Eliminate Them
Exposure & Emulsion Issues (Chemical Causes)
Underexposure — The No. 1 Cause of Pinhole Defects
Underexposed emulsion remains soft, slimy, or weak. It cannot resist water, squeegee pressure, or ink chemistry.
Fix:
- Increase exposure time.
- Use an exposure calculator to verify ideal timing regularly.
- If the squeegee side feels slippery during washout, that’s a sure underexposure sign.
Insufficient Emulsion Thickness
Thin or inconsistent layers create weak spots that appear as pinholes.
Fix:
- Use higher solids emulsion.
- Coat more slowly to avoid bubbles.
- On coarse mesh, apply dual coats (inside + outside).
Air Bubbles in Emulsion
Fast coating = trapped air = micro-craters after drying.
Fix:
- Coat slowly with firm pressure.
- Let mixed emulsion rest for at least 2 hours to release bubbles.
Poor Film Positive or Dirty Exposure Glass
Dust on the film or glass blocks UV light, creating tiny unexposed dots.
Fix:
- Clean exposure glass.
- Inspect film for dust.
- Use dense, opaque positives — or CTS/DTS systems.
Wet or Cold Emulsion
Cold or partially dried emulsion won’t harden properly.
Fix:
- Bring emulsion to room temperature.
- Ensure complete drying before exposure.
- Use fans or dehumidifiers when needed.
Screen Prep & Contamination (Pre-Press Causes)
Improper Degreasing
Oil, fingerprints, mesh residue, and moisture prevent emulsion adhesion.
Fix:
- Use dedicated degreasers.
- Clean both sides with a soft brush.
- Degrease new screens, especially — they contain factory residues.
Mesh Contamination
Leftover haze, ghost images, or chemicals weaken the new stencil.
Fix:
- Reclaim screens promptly while ink is wet.
- Apply haze removers only when needed.
Dust in the Drying Area
Dust that lands on the wet emulsion creates future pinholes.
Fix:
- Dry screens horizontally, off the floor, in a dust-free room.
- Avoid pointing fans directly at screens.
Poor Handling
Touching mesh with bare hands leaves oils behind.
Fix:
- Handle screens by the frame.
- Wear gloves.
Washout & Finishing (Mechanical Causes)
Excessive Washout Pressure
Too strong a spray can blow out underexposed or soft emulsion.
Fix:
- Use moderate, even pressure.
- Don’t “dig” into the stencil.
Unremoved Emulsion Scum
Partially rinsed unexposed emulsion may dry into pinholes.
Fix:
- Use consistent washout technique.
- Check the screen after drying.
Aggressive Solvents or Ink Chemistry
Incompatible inks break down the stencil during production.
Fix:
- Use a hardener for water-based inks.
- Choose emulsions matched to ink type.
Low Screen Tension
Inconsistent tension causes micro-movement — which stresses the stencil.
Fix:
- Measure and retension screens regularly.

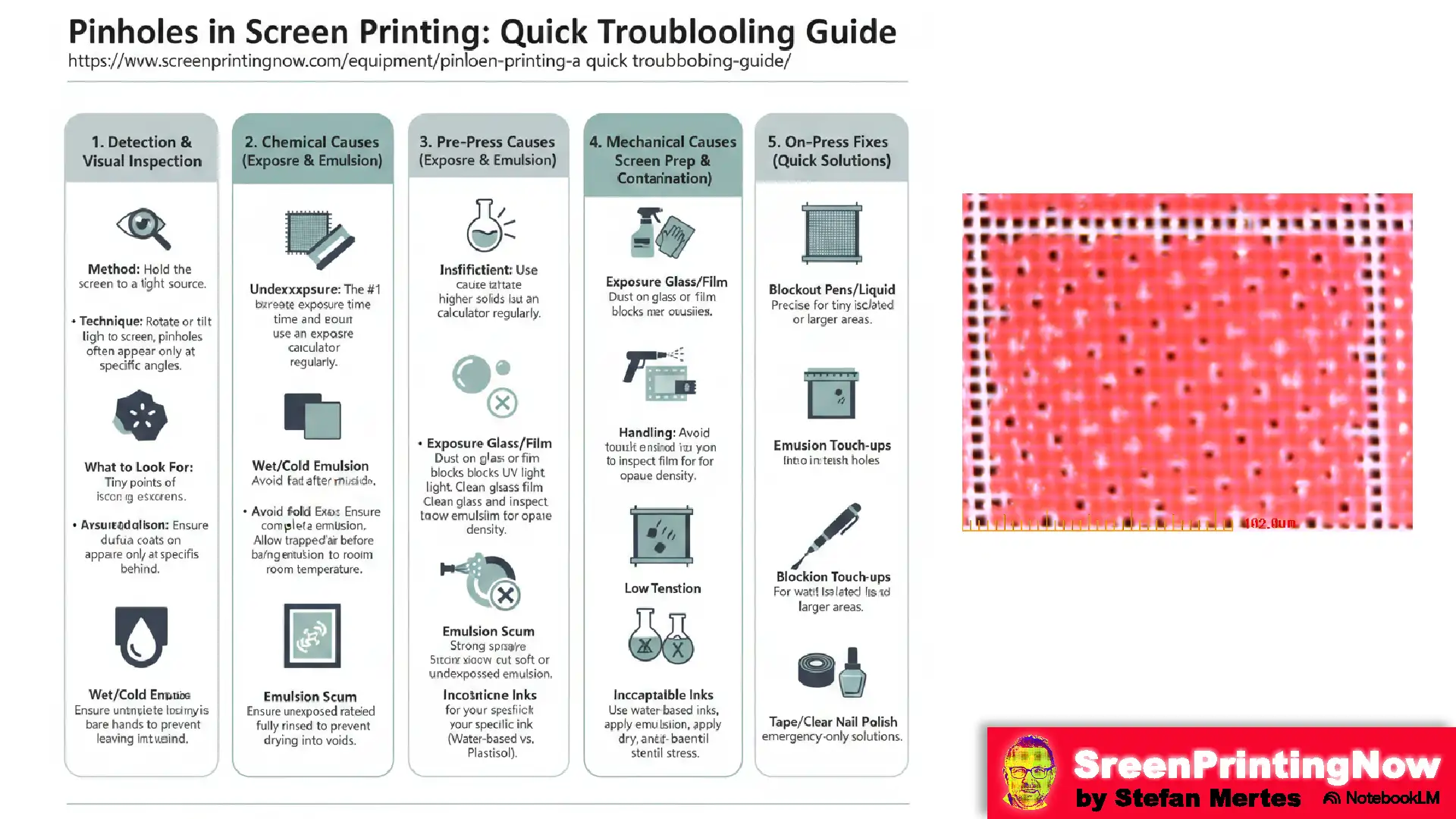

Quick Troubleshooting Guide (On-Press Fixes)
If pinholes appear during a print run:
1. Blockout Pens
Fast and precise; good for tiny isolated holes.
2. Blockout Liquid
Cost-effective for larger areas; ensure compatibility with your ink.
3. Emulsion Touch-Ups
For water-based inks, apply the same emulsion, dry, and re-expose.
4. Tape
Temporary fix, best for small runs (<100 prints).
5. Clear Nail Polish
Emergency-only solution for water-based systems.
Prevention vs. Patching: What Professionals Recommend
Top printers agree:
It’s cheaper to prevent pinholes than to fix them.
Core Prevention Rules
- Maintain a dust-free environment.
- Clean exposure units and films regularly.
- Degrease thoroughly — always.
- Coat slowly and evenly.
- Dry screens completely.
- Use an exposure calculator for every mesh/emulsion combo.
- Filter water when mixing emulsions.
- Avoid dish soaps with hand softeners.
The Future of Pinhole Elimination
The industry is moving toward automation and smarter materials.
Automation & AI
- CTS/DTS systems remove films entirely — eliminating dust and smudge problems.
- Automated coaters produce perfectly even emulsion layers.
- AI vision systems detect pinholes before humans ever see them.
Materials Innovation
- Super-emulsions with anti-pinhole additives.
- Next-gen meshes using nanomaterials for superior emulsion hold.
- Research into self-healing emulsions — still theoretical, but promising.
Conclusion
Pinholes remain one of the most common — and most fixable — problems in screen printing. With proper cleaning, consistent coating techniques, correct exposure, and controlled environments, most pinholes can be prevented before they ever reach the press.
As automation, AI-driven quality control, and advanced emulsions evolve, the future points toward precision workflows and pinhole-free printing.
