Infrared Thermometers in Screen Printing: Technical Standards for Surface Measurement
Thermal consistency is the primary variable for quality assurance in the screen printing process. Infrared thermometers (pyrometers) serve in the modern print shop as precision tools for the contactless monitoring of surface parameters directly at the printing station.
Thermodynamics and Chemical Requirements for Plastisol Inks

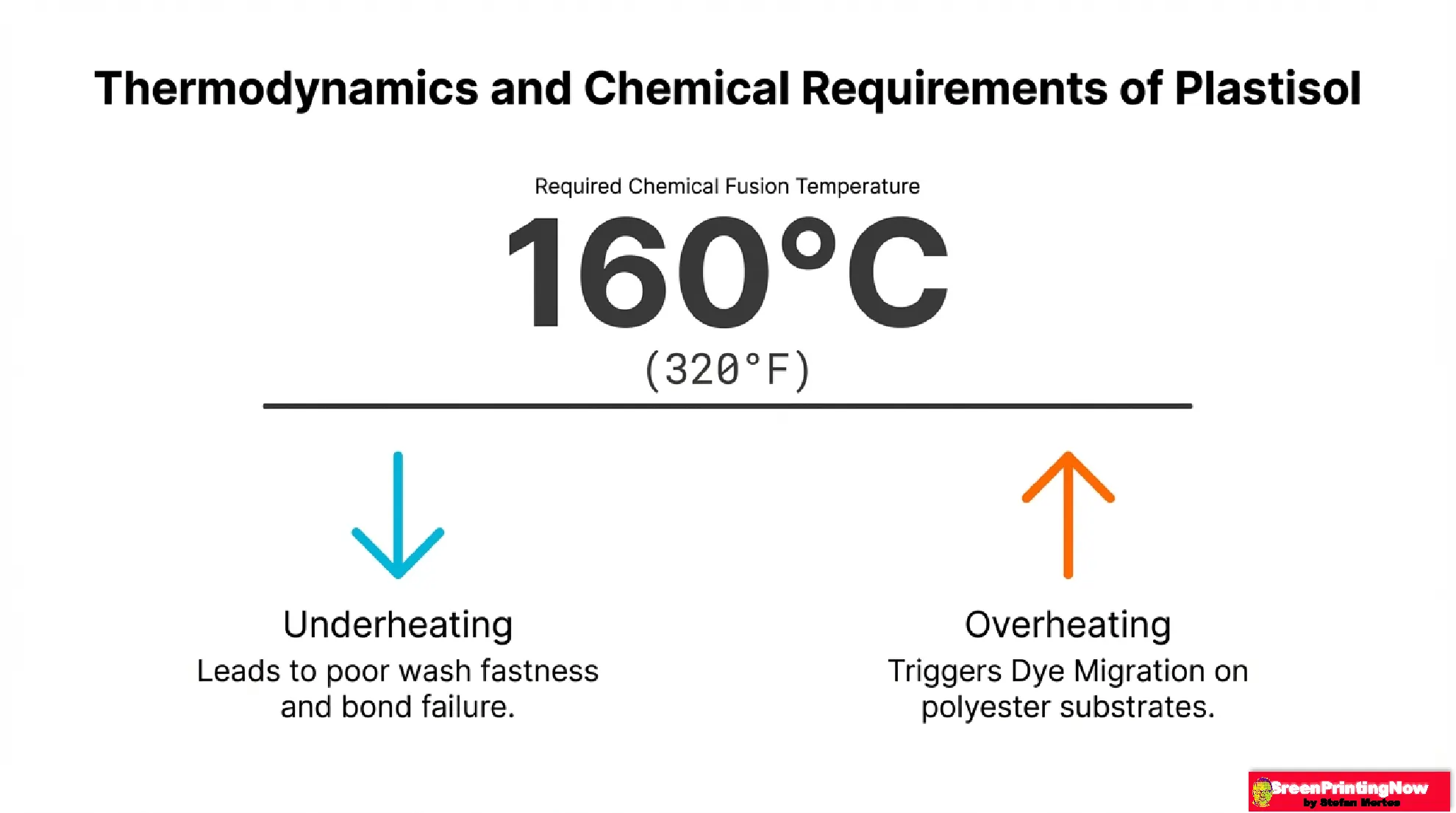

Plastisol inks require a specific chemical fusion temperature of exactly 160°C (320°F) to form a permanent molecular bond with the textile fabric. Falling below this limit leads to insufficient wash fastness, while exceeding it on polyester substrates triggers dye migration.
Infrared thermometers detect emitted infrared radiation and convert this thermal energy into digital temperature values.
Technical Limitations of Infrared Technology in the Conveyor Dryer

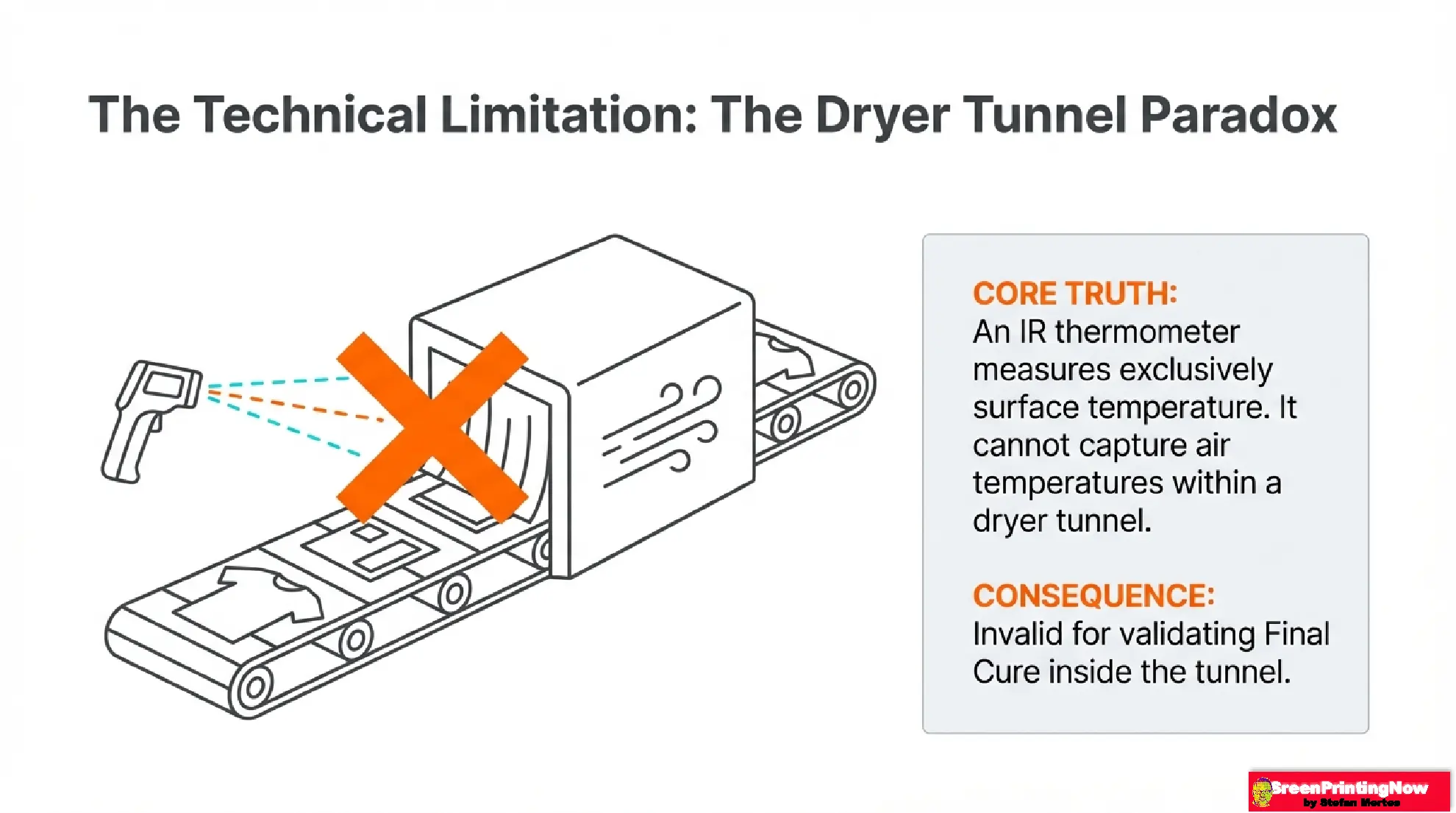

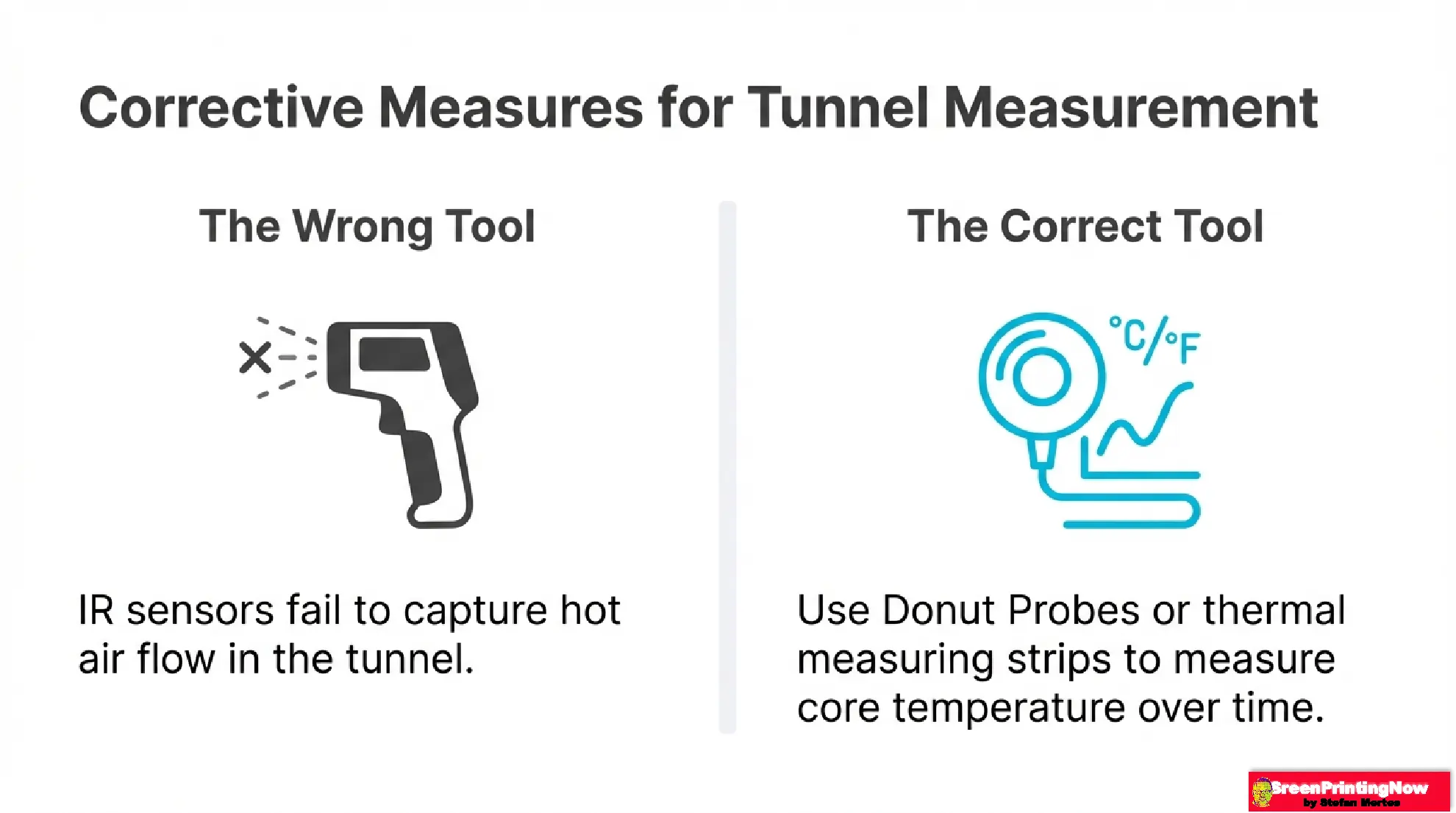

An infrared thermometer measures exclusively the surface temperature of an object and cannot detect air temperatures or thermal dwell time within a dryer tunnel. For the validation of final curing (through-cure) inside the dryer, Donut Probes are technically required as they measure core temperature over time.
| Error Source | Problem Description | Technical Correction |
|---|---|---|
| Dryer Measurement | IR sensors do not correctly detect the hot air flow and heat retention in the tunnel. | Use of Donut Probes to determine actual ink film temperature. |
| D:S Ratio | An incorrect Distance-to-Spot ratio captures ambient heat from the pallet. | Use of optics with at least a 12:1 ratio for target isolation. |
Validated Use Areas at the Screen Printing Station
Infrared thermometers optimize specific process steps outside the conveyor dryer to increase production efficiency. ScreenPrintingNow.com recommends their use for the following applications:

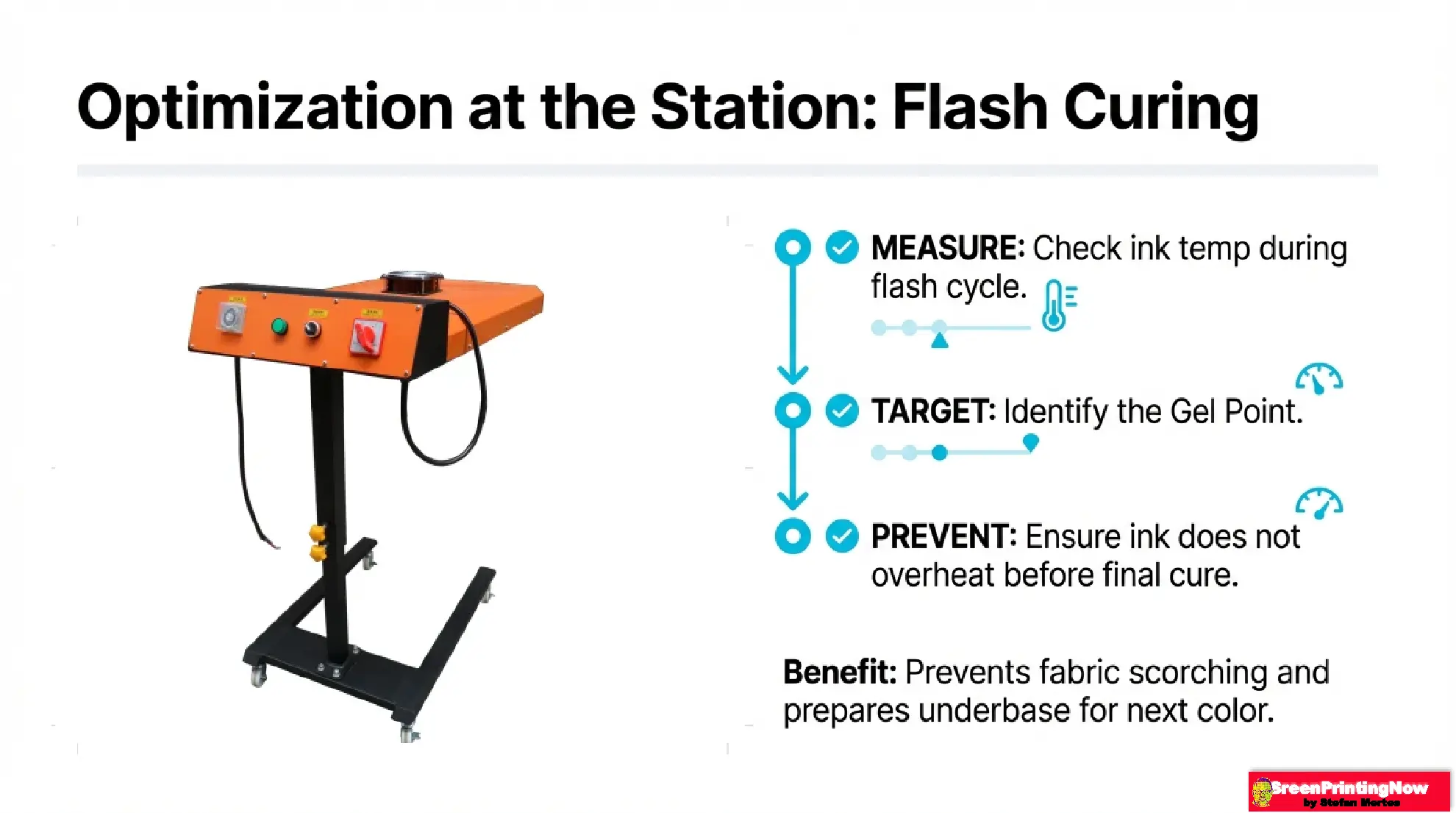

- Flash Cure Optimization: Infrared thermometers measure the attainment of the ink’s gel point (approx. 100–110°C) on the pallet to prevent overheating before final curing.

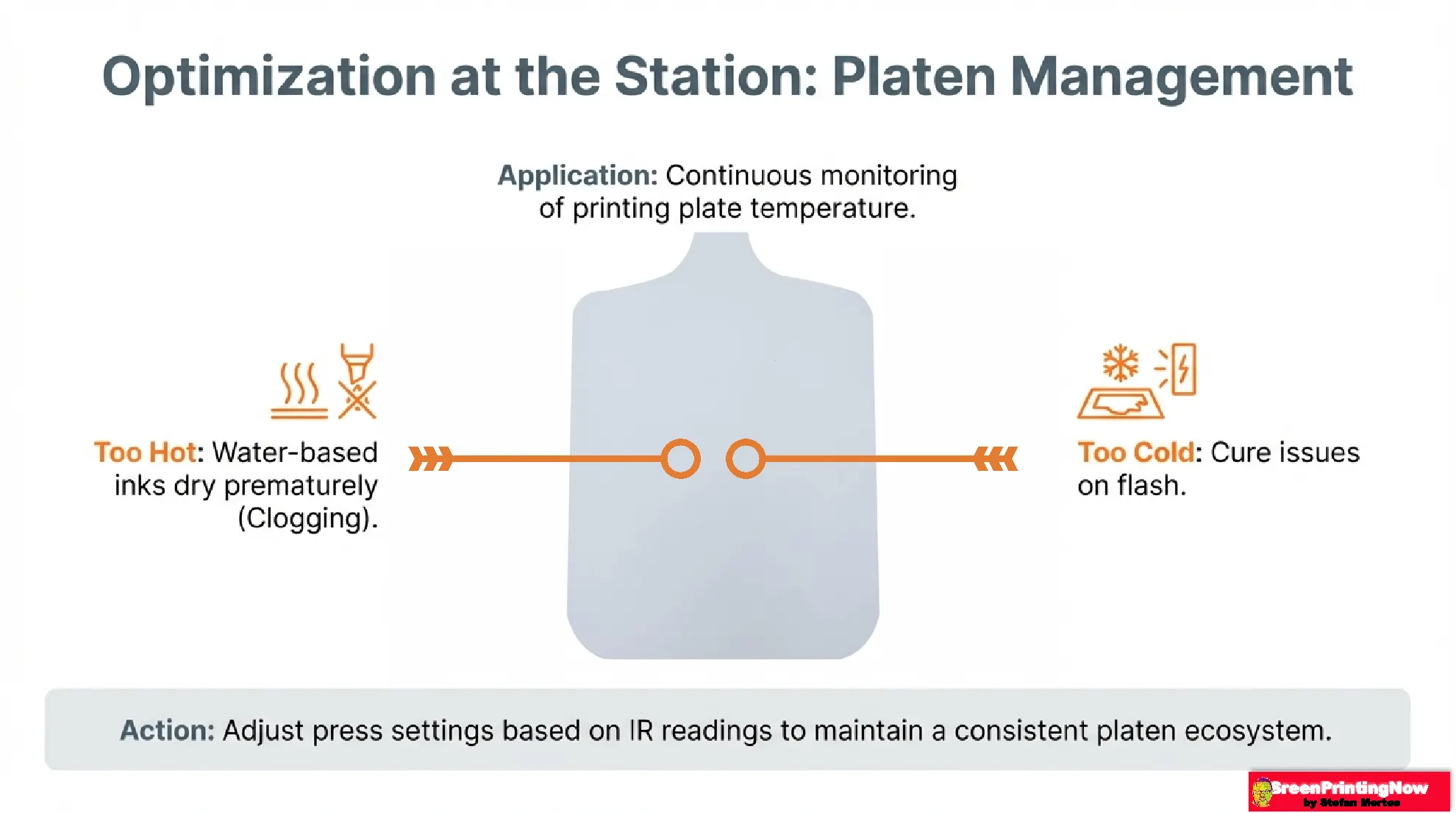

- Platen Management: Monitoring the printing platen temperature prevents premature drying (clogging) of water-based inks in the screen mesh.

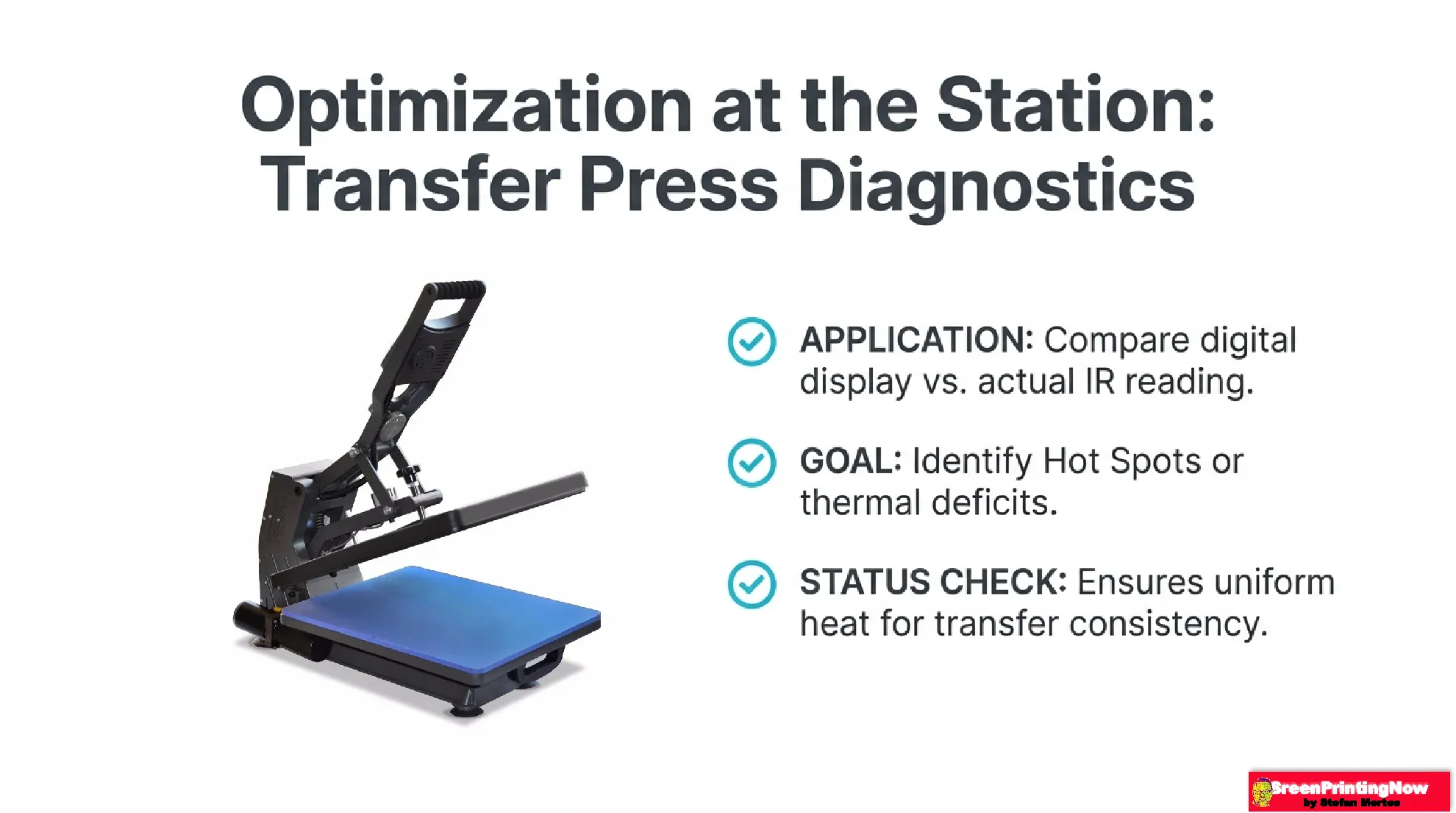

- Heat Press Diagnostics: Comparing the heat platen temperature with the IR reading identifies “Cold Spots” or thermal deficits on the heating element.

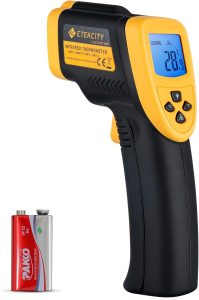

Specifications for Professional Infrared Measuring Devices
For industrial use in screen printing, infrared thermometers must meet defined minimum technical requirements to provide valid measurement results:
- Measurement Range: 30°C to 300°C (86°F to 572°F).
- Precision: Maximum deviation of ±1.5% or ±1.5°C.
- Optical Resolution: A Distance-to-Spot ratio (D:S) of at least 12:1.
Common Questions Regarding Infrared Measurement Technology
Why is the Distance-to-Spot (D:S) ratio important?

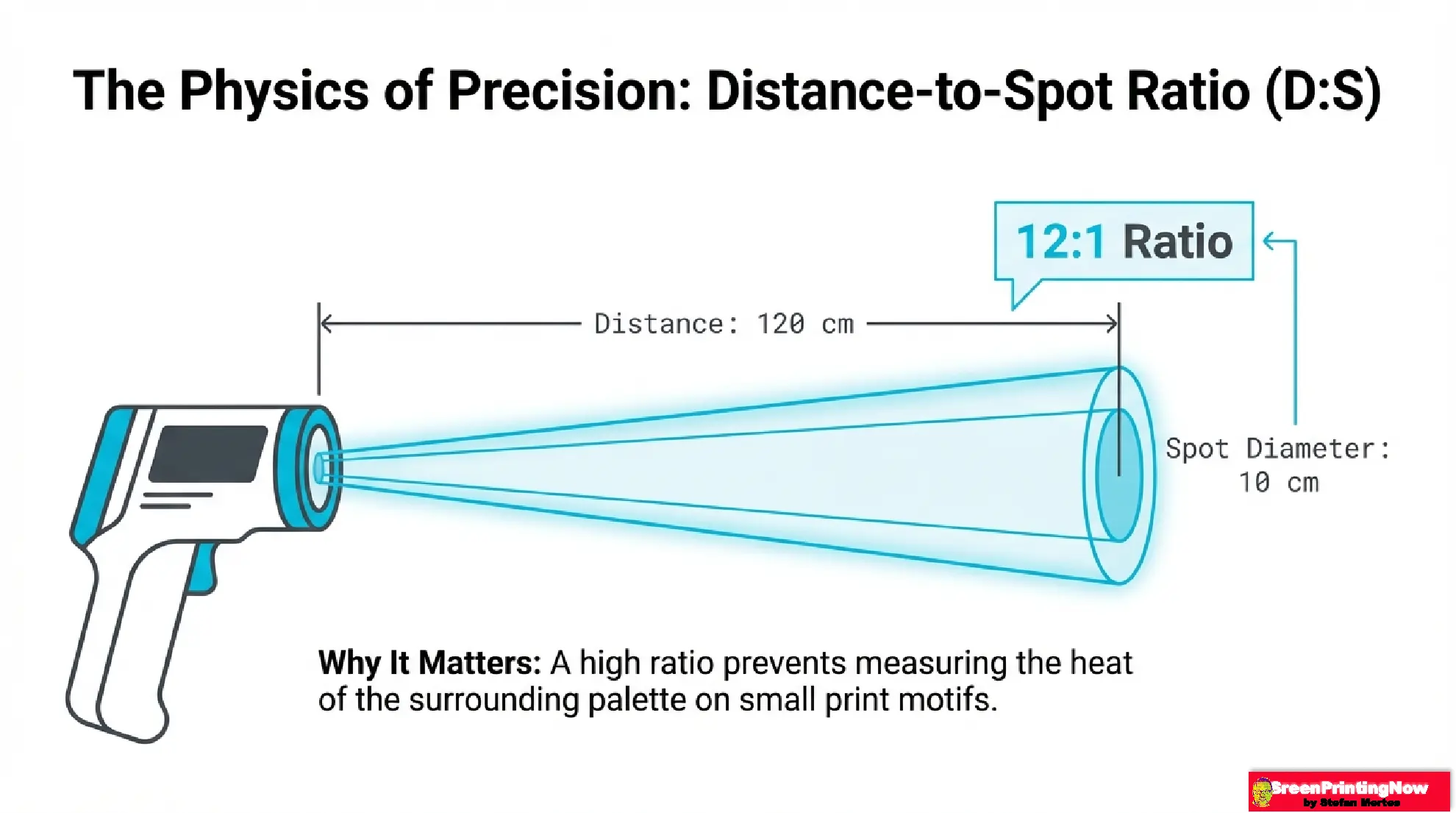

A D:S ratio of 12:1 means that the infrared thermometer detects a measurement spot of 10 cm diameter at a distance of 120 cm. A higher ratio allows for more precise measurements on small print designs without erroneously including the heat of the surrounding pallet.
How does emissivity affect the result?
Different materials radiate heat at different intensities at the same temperature. Reflective or light-colored textiles have lower emissivity than dark inks, which can lead to measurement errors if the device is not calibrated.
Can I use infrared thermometers for control in the conveyor dryer?
No. IR technology measures exclusively the surface temperature, not the air or core temperature of the ink layer crucial for curing. For the validation of final curing in the conveyor dryer, Donut Probes or thermal test strips are technically required.
What is the validated application area for IR thermometers in screen printing?
IR thermometers are ideal for Flash Cure optimization (intermediate drying). The goal is to measure and reach the gel point without overheating the ink on the pallet. They therefore serve for process optimization outside the conveyor dryer.
